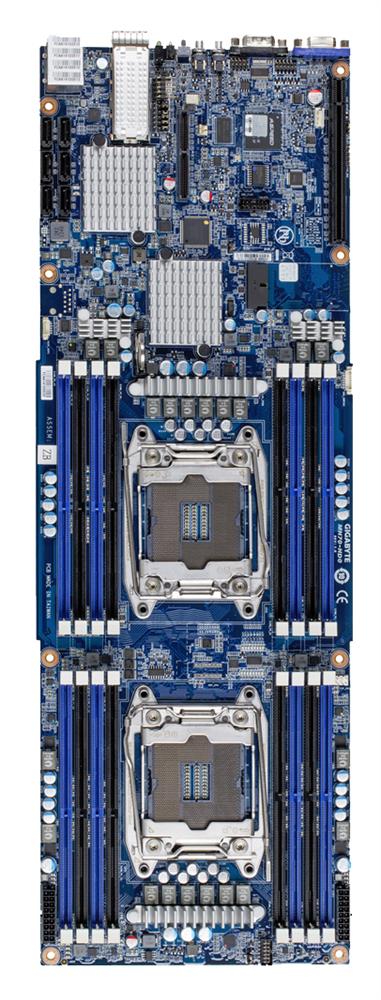

MH70-HD0 Gigabyte Socket Dual LGA 2011-3 Xeon E5-2600 V3/ V4 Processors Support Extended ATX Intel C612 Chipset Server Motherboard (Refurbished)
MH70-HD0 Gigabyte Socket Dual LGA 2011-3 Xeon E5-2600 V3/ V4 Processors Support Extended ATX Intel C612 Chipset Server Motherboard (Refurbished)

MH70-HD0 Gigabyte Socket Dual LGA 2011-3 Xeon E5-2600 V3/ V4 Processors Support Extended ATX Intel C612 Chipset Server Motherboard (Refurbished)

Mfg Part No:

MH70-HD0

$1,129.06 $1,612.95 You Save: $483.89 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of MH70-HD0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for MH70-HD0

Model
Manufacturer Gigabyte Tech
Manufacturer Part # MH70-HD0
Performance
Product Type Server Motherboard
Form Factor E-ATX
CPU Socket Type LGA 2011-3
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies 64-bit
 AES New Instructions
 Execute Disable Bit
 Hyper-Threading Technology
 Idle States
 Intel Trusted Execution Technology
 Intel Turbo Boost Technology
 Intel Virtualization Technology
 Thermal Monitoring Technologies
Chipset Intel C612
Number of Memory Slot(s) 16
Supported Memory Standard(s) PC4-12800 (DDR4-1600)
 PC4-14900 (DDR4-1866)
 PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
Maximum Installed Memory
  • 3DS LRDIMM modules up to 128GB supported
  • LRDIMM modules up to 64GB supported
  • RDIMM modules up to 32GB supported
    		•
    Expansion Slots PCI-E x16
     PCI-E x8
    Expansion Slots Details
  • 1 x PCIe x16 (Gen3 x16 bus) slot
  • 1 x PCIe x8 mezzanine (Gen3 x8 bus) slot
    		•
    Storage Controller SATA 6.0 Gbps
    Storage Controller Details
  • 6 x SATA III 6Gb/s ports
    		•
    On-Board Video Controller ASPEED AST2400
    Network Gigabit Ethernet
    Connectors/Ports CPU Fan Connector
     RJ-45
     Serial
     TPM Header
     USB 3.0
    Connectors/Ports Details Internal I/O Connectors
  • 2 x 18-pin ATX 12V power connectors
  • 6 x SATA III 6Gb/s ports
  • 2 x CPU fan headers
  • 1 x USB 3.0 header
  • 1 x TPM header
  • 1 x Serial header
  • 1 x Front VGA header
  • 1 x Front panel header
  • 1 x SATA SGPIO header
  • 1 x BMC SGPIO header
  • 1 x Software RAID header
  • 1 x JTAG BMC header
  • 1 x PMBus header
  • 1 x PLD header
  • 1 x SMB selection jumper
  • 1 x Clear CMOS jumper
  • 1 x ACK selection jumper
  • 1 x S3 mask jumper
  • 1 x ME recovery jumper
  • 1 x LT debug jumper
  • 1 x BIOS WP jumper
  • 1 x BIOS recovery jumper
  • 1 x BIOS password recovery jumper
  • 1 x ME update jumper
  • 1 x IPMB connector

    • Rear I/O Connectors
  • 2 x USB 3.0
  • 1 x VGA
  • 1 x Serial
  • 1 x QSFP+
  • 1 x RJ45
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x BMC reset button
  • 1 x System status LED
  • 2 x LAN activity LEDs
    		•
    Request for Quote:  MH70-HD0

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no MH70-HD0. Or Request a Quote below:



    General Information

  • MH70-HD0 Gigabyte Socket Dual LGA 2011-3 Xeon E5-2600 V3/ V4 Processors Support Extended ATX Intel C612 Chipset Server Motherboard (Refurbished)
