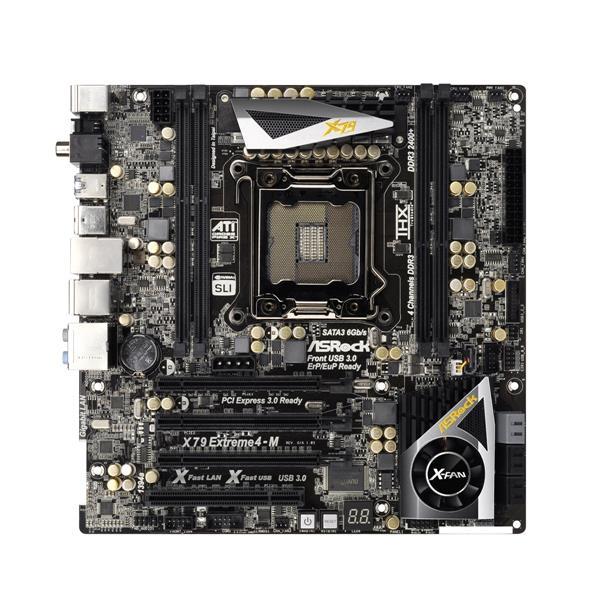

90-MXGJ70-A0UAYZ ASRock X79 Extreme4-M Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
90-MXGJ70-A0UAYZ ASRock X79 Extreme4-M Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

90-MXGJ70-A0UAYZ ASRock X79 Extreme4-M Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

90-MXGJ70-A0UAYZ

$466.78 $666.83 You Save: $200.05 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of 90-MXGJ70-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXGJ70-A0UAYZ

Model
Manufacturer ASRock
Manufacturer Part # 90-MXGJ70-A0UAYZ
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Core i7 Processor
Supported CPU Technologies Hyper-Threading Technology
 Intel Turbo Boost Technology
Chipset Intel X79 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 4
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-6400 (DDR3-800)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 3.0 x16
Storage Controller SATA 3.0 Gbps
 SATA 6.0 Gbps
Audio Controller Realtek ALC898
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Audio-In
 Chassis Fan Connector
 COM
 CPU Fan Connector
 Microphone
 PS/2
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
 USB 3.0
Connectors/Ports Details Connector
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 3.0), NCQ, AHCI and Hot Plug functions
  • 2 x SATA3 6.0 Gb/s connectors by Intel® X79, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 3.0), NCQ, AHCI and Hot Plug functions
  • 1 x SATA3 6.0 Gb/s connector by ASMedia ASM1061, supports NCQ, AHCI and Hot Plug functions
  • 1 x IR header
  • 1 x CIR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x IEEE 1394 header
  • 1 x Power LED header
  • CPU/Chassis/Power/SB FAN connector
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • SLI/XFire power connector
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1042)
  • 1 x Dr. Debug with LED

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Coaxial SPDIF Out Port
  • 1 x Optical SPDIF Out Port
  • 6 x USB 2.0 Ports
  • 1 x eSATA3 Connector
  • 2 x USB 3.1 Gen1 Ports (ASMedia ASM1042)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 1 x IEEE 1394 Port
  • 1 x Clear CMOS Switch with LED
  • HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  90-MXGJ70-A0UAYZ

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXGJ70-A0UAYZ. Or Request a Quote below:



    General Information

  • 90-MXGJ70-A0UAYZ ASRock X79 Extreme4-M Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
