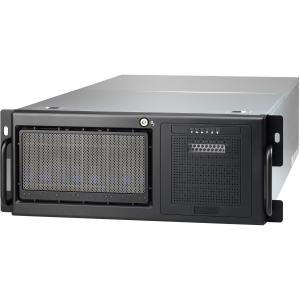

B8812F48W8HR Tyan FT48B8812 Barebone System - 4U Rack-mountable - AMD SR5690 Chipset - Socket G34 LGA-1944 - 4 x Processor Support
Mfg Part No:
Global Part Number (GPN):
B8812F48W8HR
Global Part Number (GPN):
1462557846
Looking for a large quantity of B8812F48W8HR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for B8812F48W8HR
| General Information | |
| Manufacturer Part Number | B8812F48W8HR |
| Brand Name | Tyan |
| Product Type | Barebone System |
| Processor & Chipset | |
| Number of Processors Supported | 4 |
| Processor Socket | Socket G34 LGA-1944 |
| Processor Supported | Opteron |
| 64-bit Processing | Yes |
| Chipset Manufacturer | AMD |
| Chipset Model | SR5690 |
| Memory | |
| Maximum Memory | 512 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| Number of Total Memory Slots | 32 |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS) |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2050 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of External 5.25" Bays | 3 |
| Number of 3.5" Bays | 8 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Power Description | |
| Input Voltage |
110 V AC 220 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1540 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 16.8" |
| Depth | 27.5" |
| Weight (Approximate) | 110.23 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
