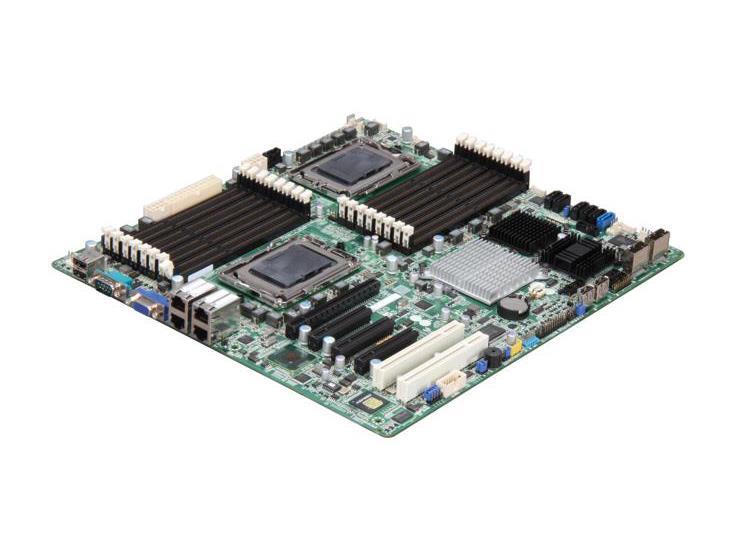

S8230WGM4NR Tyan S8230 Socket G34 AMD SR5690 + SP5100 Chipset AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors Support DDR3 16 xDIMM 4xGbE 6x SATA 3.0Gb/s EATX Server Motherboard (Refurbished)

Mfg Part No:

S8230WGM4NR

$958.26 $1,277.68 You Save: $319.42 (25% Autumn Discount)
Availability:Available for Order

Looking for a large quantity of S8230WGM4NR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for S8230WGM4NR

General Information
Manufacturer Part Number S8230WGM4NR
Brand Name Tyan
Product Type Server Motherboard
Processor & Chipset
Chipset Manufacturer AMD
Total Processor Supported 2
Processor Socket Socket G34 LGA-1944
Processor Supported Opteron Dodeca-core
Opteron Octa-core
Memory
Number of Memory Slots 16
Maximum Memory 128 GB
Memory Speed Supported 1.33 GHz
1.07 GHz
800 MHz
Memory Technology DDR3 SDRAM
I/O Controller
Controller Type Serial Attached SCSI (SAS)
Serial ATA/300
RAID Levels 0
1
5
1+0
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2050
Network & Communication
Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 7
Total Number of PCI Express Slots 4
Number of PCI Express x8 Slots 3
Number of PCI Express x16 Slots 1
Interfaces/Ports
Total Number of USB Ports 2
VGA Yes
Onboard Interfaces
Number of SATA Interfaces 6
Number of SAS Interfaces 2
Total Number of Onboard USB Ports 4
Physical Characteristics
Form Factor Extended ATX
Width 12"
Depth 13"
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
