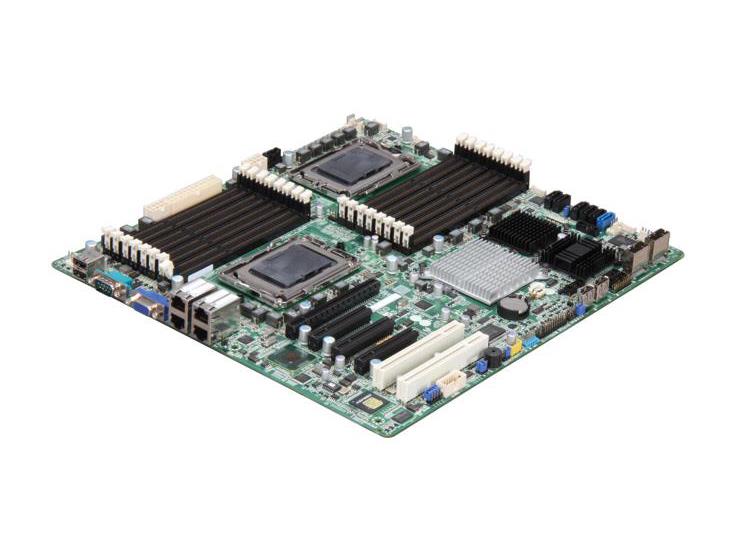

Tyan S8230WGM4NR Motherboard
- Standard Memory: 0GB (Removable)
- Maximum Memory: 256GB Reg ECC RDIMMs, 64GB ECC UDIMMs
- Memory Expansion: 8 Sockets (4 Banks of 2) per processor, 16 Sockets Total with two processors
- CPU: AMD Opteron 6100/6200/6300 Series
- No of Processors: 2
- Chipset: AMD SR5690
- Bus Architecture: PCI; PCI Express; SSD SATA 2.5-inch; USB
- Mfr System P/N: S8230WGM4NR
- Form Factor: EATX
- Memory Comments: Modules must be ordered and Insatalled in Pairs,or ordered and installed in groups of Four for Quad channel Mode. This system supports 1.5V DDR3 and 1.35V Low-Voltage DDR3 memory. When mixing DIMMs of different voltages, system runs memory at 1.5V. Any configuration up to 256GB can be reached using any combination of 1GB, 2GB, 4GB, 8GB and 16GB Registered modules.
Memory Upgrade for Tyan S8230WGM4NR Motherboard
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
HMT42GR7MFR4A-PBT8-AC | Hynix | PC-12800 1600Mhz | 16 GB | Registered ECC Rank 2 | 1.35 | $32.11 | Add to List |
|
NT16GC72B4NB0NL-DI | Nanya | PC-12800 1600Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $36.20 | Add to List |
|
NMD2G7G3510BHD10A1HB | NetList | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $39.38 | Add to List |
|
M393B2G70BH0-YH9 | Samsung | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.35 | $32.11 | Add to List |
|
M393B2K70CM0-CF8 | Samsung | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $40.69 | Add to List |
Memory Upgrade for Tyan S8230WGM4NR Motherboard
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-14D350R5019-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Load Reduced ECC Rank 4 | 1.35 | $37.89 | Add to List |
|
3D-14D350R25014-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.35 | $33.89 | Add to List |
|
3D-14D350R15032-4G | 3D Memory | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 1 | 1.35 | $21.88 | Add to List |
|
3D-14D350R25007-4G | 3D Memory | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 2 | 1.35 | $20.71 | Add to List |
|
3D-14D350R25005-4G | 3D Memory | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 2 | 1.5 | $20.71 | Add to List |
Accessories Upgrade for Tyan S8230WGM4NR Motherboard
CPUs / Processors
Retail Box
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
OS6348WKTCGHK | Socket G34 | 6348 | 12 | 2.80 GHz | $123.25 | Add to List | |
|
OS6344WKTCGHK | Socket G34 | 6344 | 12 | 2.60 GHz | $85.83 | Add to List | |
|
OS6376WKTGGHK | Socket G34 | 6376 | 16 | 2.30 GHz | $85.83 | Add to List | |
|
OS6308WKT4GHK | $85.83 | Add to List | |||||
|
OS6386YETGGHK | $257.05 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
WG82574L Intel 82574L Single-Port RJ-45 1Gbps Ethernet Controller$64.31 -
Add to List
JL82576EB Intel Dual-Ports RJ-45 1Gbps PCI Express x1 Gigabit Ethernet Server Network Adapter$111.37
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
SDLLOCDR-038T-5C | SanDisk | SAS 6.0 Gbps | 4 TB | 2.5-inch | Enterprise MLC (eMLC) | $962.95 | Add to List |
|
SDLLOC6R-020T-5CA1 | SanDisk | SAS 6.0 Gbps | 2 TB | 2.5-inch | Enterprise MLC (eMLC) | $499.70 | Add to List |
|
SDLLOCDR-016T-5C | SanDisk | SAS 6.0 Gbps | 1.6 TB | 2.5-inch | Enterprise MLC (eMLC) | $1,412.09 | Add to List |
|
SSDSC2BB016T701 | Intel | SATA 6.0 Gbps | 1.6 TB | 2.5-inch | Multi-level Cell (MLC) | $315.69 | Add to List |
|
SSDSC2BX016T4 | Intel | SATA 6.0 Gbps | 1.6 TB | 2.5-inch | Multi-level Cell (MLC) | $315.69 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST33000651AS | Seagate | SATA 6.0 Gbps | 3 TB | 3.5-inch | 64 MB | 7200 RPM | $92.24 | Add to List |
|
ST33000650NS | Seagate | SATA 6.0 Gbps | 3 TB | 3.5-inch | 64 MB | 7200 RPM | $92.24 | Add to List |
|
ST32000641AS | Seagate | SATA 6.0 Gbps | 2 TB | 3.5-inch | 64 MB | 7200 RPM | $128.83 | Add to List |
|
HE103SJ | Samsung | SATA 3.0 Gbps | 1 TB | 3.5-inch | 32 MB | 7200 RPM | $48.07 | Add to List |
|
WD1003FBYX | Western Digital | SATA 3.0 Gbps | 1 TB | 3.5-inch | 64 MB | 7200 RPM | $55.01 | Add to List |
