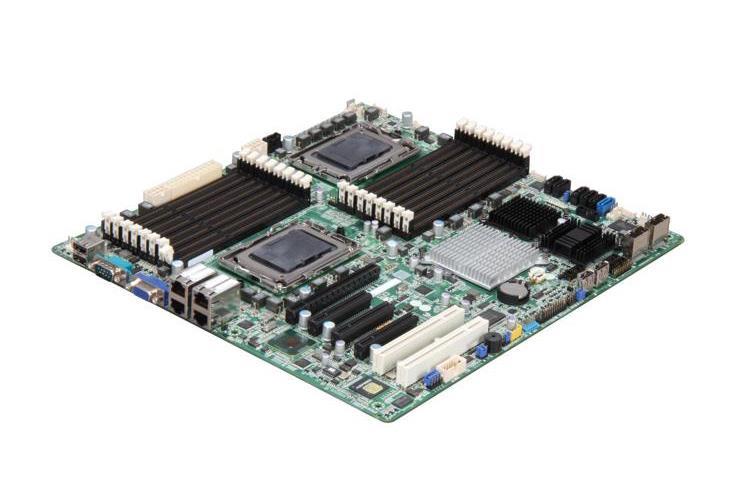

S8230GM4NR-LE Tyan S8230 Socket G34 AMD SR5670 + SP5100 Chipset AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors Support DDR3 16 xDIMM 4xGbE 6x SATA 3.0Gb/s EATX Server Motherboard (Refurbished)

Mfg Part No:

S8230GM4NR-LE

$700.98 $934.63 You Save: $233.65 (25% Summer Discount)
Availability:Available for Order

Looking for a large quantity of S8230GM4NR-LE? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for S8230GM4NR-LE

General Information
Manufacturer Part Number S8230GM4NR-LE
Brand Name Tyan
Product Type Server Motherboard
Processor & Chipset
Chipset Manufacturer AMD
Total Processor Supported 2
Processor Socket Socket G34 LGA-1944
Processor Supported Opteron Dodeca-core
Opteron Octa-core
Memory
Number of Memory Slots 16
Maximum Memory 128 GB
Memory Speed Supported 1.33 GHz
1.07 GHz
800 MHz
Memory Technology DDR3 SDRAM
I/O Controller
Controller Type Serial ATA/300
RAID Supported Yes
RAID Levels 0
1
5
1+0
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2050
Network & Communication
Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 4
Total Number of PCI Express Slots 2
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 1
Interfaces/Ports
Total Number of USB Ports 2
VGA Yes
Onboard Interfaces
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 4
Physical Characteristics
Form Factor Extended ATX
Width 12"
Depth 13"
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
Request for Quote:  S8230GM4NR-LE

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no S8230GM4NR-LE. Or Request a Quote below:



General Information

  • S8230GM4NR-LE Tyan S8230 Socket G34 AMD SR5670 + SP5100 Chipset AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors Support DDR3 16 xDIMM 4xGbE 6x SATA 3.0Gb/s EATX Server Motherboard (Refurbished)
