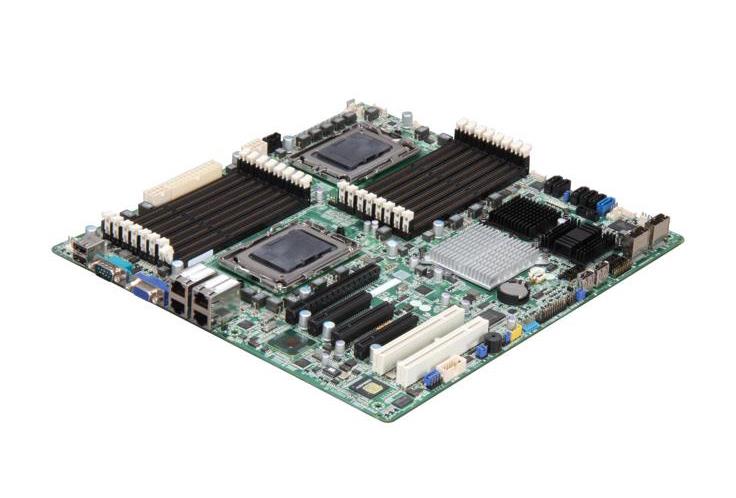

Tyan S8230GM4NR-LE Motherboard

  • Standard Memory: 0GB (Removable)
  • Maximum Memory: 256GB Reg ECC RDIMMs, 64GB ECC UDIMMs
  • Memory Expansion: 8 Sockets (4 Banks of 2) per processor, 16 Sockets Total with two processors
  • CPU: AMD Opteron 6100/6200/6300 Series
  • No of Processors: 2
  • Chipset: AMD SR5690
  • Bus Architecture: PCI; PCI Express; SSD SATA 2.5-inch; USB
  • Mfr System P/N: S8230GM4NR-LE
  • Form Factor: EATX
  • Memory Comments: Modules must be ordered and Insatalled in Pairs,or ordered and installed in groups of Four for Quad channel Mode. This system supports 1.5V DDR3 and 1.35V Low-Voltage DDR3 memory. When mixing DIMMs of different voltages, system runs memory at 1.5V. Any configuration up to 256GB can be reached using any combination of 1GB, 2GB, 4GB, 8GB and 16GB Registered modules.
Memory Upgrade for Tyan S8230GM4NR-LE Motherboard
Part # Brand Type Capacity Error Correction Voltage Price
HMT42GR7MFR4A-PBT8-AC Hynix PC-12800 1600Mhz 16 GB Registered ECC Rank 2 1.35 $68.83 Add to List
NT16GC72B4NB0NL-DI Nanya PC-12800 1600Mhz 16 GB Registered ECC Rank 2 1.5 $70.98 Add to List
NMD2G7G3510BHD10A1HB NetList PC-10600 1333Mhz 16 GB Registered ECC Rank 2 1.5 $73.13 Add to List
M393B2G70BH0-YH9 Samsung PC-10600 1333Mhz 16 GB Registered ECC Rank 2 1.35 $67.04 Add to List
M393B2K70CM0-CF8 Samsung PC-8500 1066Mhz 16 GB Registered ECC Rank 4 1.5 $60.51 Add to List
Memory Upgrade for Tyan S8230GM4NR-LE Motherboard
Part # Brand Type Capacity Error Correction Voltage Price
3D-14D350R5103-16G 3D Memory PC-10600 1333Mhz 16 GB Load Reduced ECC Rank 4 1.35 $206.64 Add to List
3D-14D350R25098-8G 3D Memory PC-10600 1333Mhz 8 GB Registered ECC Rank 2 1.35 $48.38 Add to List
3D-14D350R15116-4G 3D Memory PC-10600 1333Mhz 4 GB Registered ECC Rank 1 1.35 $42.34 Add to List
3D-14D350R25091-4G 3D Memory PC-10600 1333Mhz 4 GB Registered ECC Rank 2 1.35 $44.22 Add to List
3D-14D350R25089-4G 3D Memory PC-10600 1333Mhz 4 GB Registered ECC Rank 2 1.5 $44.29 Add to List
Accessories Upgrade for Tyan S8230GM4NR-LE Motherboard
CPUs / Processors
Retail Box
Part # Socket Model Type Cores Clock Speed Cache Price
OS6380WKTGGHK $207.18 Add to List
CPUs / Processors
Unboxed / OEM
Part # Socket Model Type Cores Clock Speed Cache Price
OS6348WKTCGHK Socket G34 6348 12 2.80 GHz $152.87 Add to List
OS6376WKTGGHK Socket G34 6376 16 2.30 GHz $85.18 Add to List
?OS6366VATGGHK   Call Add to List
OS6308WKT4GHK $636.12 Add to List
OS6386YETGGHK $1,777.87 Add to List
Network & Accessories
Network Adapters
  • WG82574L Intel 82574L Single-Port RJ-45 1Gbps Ethernet Controller
    $64.53
    Quick View
    Add to List
  • JL82576EB Intel Dual-Ports RJ-45 1Gbps PCI Express x1 Gigabit Ethernet Server Network Adapter
    $112.00
    Quick View
    Add to List
Solid State Storage
Solid State Drive
Part # Brand Type Capacity Form Factor Cells Price
SSDSC2BB016T701 Intel SATA 6.0 Gbps 1.6 TB 2.5-inch Multi-level Cell (MLC) $375.84 Add to List
SSDSC2BX016T4 Intel SATA 6.0 Gbps 1.6 TB 2.5-inch Multi-level Cell (MLC) $1,741.50 Add to List
SSDSC2BB012T701 Intel SATA 6.0 Gbps 1.2 TB 2.5-inch Multi-level Cell (MLC) $544.19 Add to List
SSDSC2KI010X601 Intel SATA 6.0 Gbps 1 TB 2.5-inch Triple Level Cell (TLC) $296.78 Add to List
SSDSC2BB960G701 Intel SATA 6.0 Gbps 960 GB 2.5-inch Multi-level Cell (MLC) $453.59 Add to List
Hard Drives
Part # Brand Type Capacity Form Factor Cache Speed Price
ST33000651AS Seagate SATA 6.0 Gbps 3 TB 3.5-inch 64 MB 7200 RPM $125.28 Add to List
ST33000650NS Seagate SATA 6.0 Gbps 3 TB 3.5-inch 64 MB 7200 RPM $127.52 Add to List
ST32000641AS Seagate SATA 6.0 Gbps 2 TB 3.5-inch 64 MB 7200 RPM $79.06 Add to List
HE103SJ Samsung SATA 3.0 Gbps 1 TB 3.5-inch 32 MB 7200 RPM $58.46 Add to List
WD1003FBYX Western Digital SATA 3.0 Gbps 1 TB 3.5-inch 64 MB 7200 RPM $149.92 Add to List
