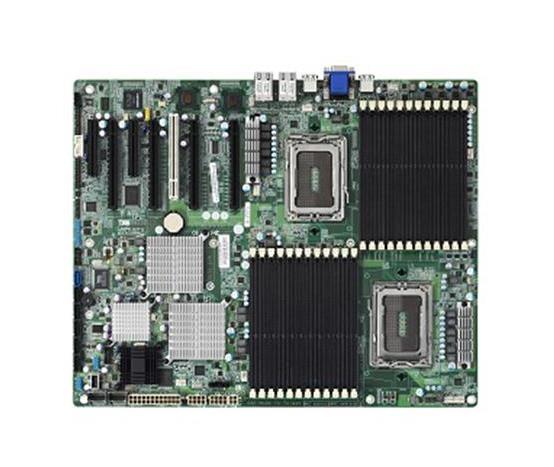

S8232GM4NR Tyan S8232 Socket G34 AMD SR5690 + SP5100 Chipset AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors Support DDR3 24x DIMM 4xGbE 6x SATA 3.0Gb/S MEB Server Motherboard (Refurbished)

Mfg Part No:

S8232GM4NR

$129.55 $185.08 You Save: $55.53 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of S8232GM4NR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for S8232GM4NR

General Information
Manufacturer Part Number	S8232GM4NR
Brand Name	Tyan
Product Type	Server Motherboard
Processor & Chipset
Chipset Manufacturer	AMD
Total Processor Supported	1
Processor Socket	Socket G34 LGA-1944
Processor Supported	Opteron
Memory
Number of Memory Slots	24
Memory Form Factor	DIMM
Maximum Memory	256 GB
Memory Speed Supported	1.33 GHz 1.07 GHz 800 MHz
Memory Technology	DDR3 SDRAM
I/O Controller
Controller Type	Serial ATA/300
RAID Supported	Yes
RAID Levels	0 1 5 1+0
Video
Onboard Video	On-board Video Chipset
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2050
I/O Expansions
Number of Total Expansion Slots	7
Total Number of PCI Express Slots	6
Number of PCI Express x4 Slots	2
Number of PCI Express x16 Slots	4
Interfaces/Ports
Total Number of USB Ports	4
VGA	Yes
Onboard Interfaces
Number of SATA Interfaces	6
Total Number of Onboard USB Ports	5
Physical Characteristics
Form Factor	SSI MEB
Width	16"
Depth	13"
Miscellaneous
Environmentally Friendly	Yes
Environmental Certification	RoHS-6
