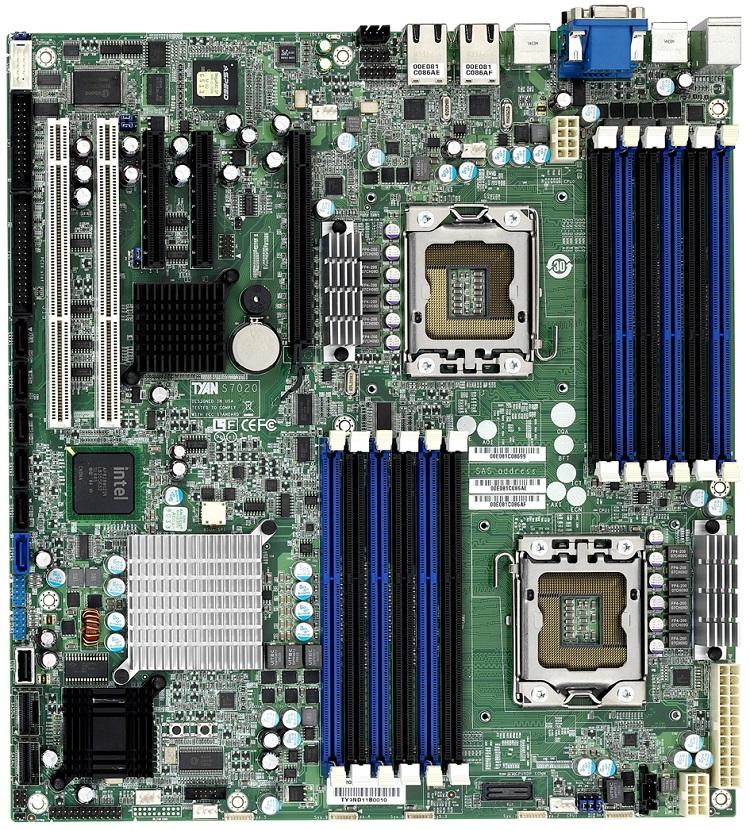

S7020AGM2NR Tyan S7020 Socket LGA 2366 Intel 5520/ICH10R Chipset DDR3 Intel Xeon 5500/5600 Series Processors Support DDR3 12x DIMM 6x SATA 3.0Gb/s SSI EEB Server Motherboard (Refurbished)

Mfg Part No:

S7020AGM2NR

Global Part Number (GPN):

1444972946

Call us at (800) 821-3354 for price and availability or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for S7020AGM2NR

General Information
Manufacturer Part Number	S7020AGM2NR
Brand Name	Tyan
Product Type	Server Motherboard
Processor & Chipset
Chipset Manufacturer	Intel
Total Processor Supported	2
Processor Socket	Socket B LGA-1366
Processor Supported	Xeon Dual-Core Xeon Quad-core
Memory
Number of Memory Slots	12
Maximum Memory	96 GB
Memory Speed Supported	1.33 GHz 1.07 GHz 800 MHz
Memory Technology	DDR3 SDRAM
I/O Controller
Controller Type	Serial ATA/300
RAID Supported	Yes
RAID Levels	0 1 1+0 5
Video
Onboard Video	On-board Video Chipset
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2050
Network & Communication
Gigabit Ethernet	Yes
I/O Expansions
Number of Total Expansion Slots	6
Total Number of PCI Express Slots	3
Number of PCI Express x8 Slots	2
Number of PCI Express x16 Slots	1
Onboard Interfaces
Number of SATA Interfaces	6
Physical Characteristics
Form Factor	SSI EEB
Width	12"
Depth	13"
