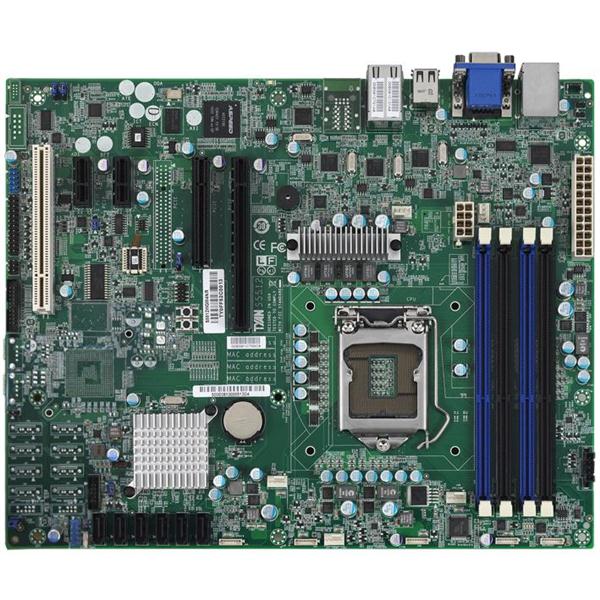

S5512GM4NR Tyan S5512 Socket LGA 1155 Intel SLB 9635 Chipset Intel Xeon E3-1200 Core i3-2100 Series Processors Support (2)Gbe ATX Server Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
S5512GM4NR
Global Part Number (GPN):
1464179549
Looking for a large quantity of S5512GM4NR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for S5512GM4NR
| General Information | |
| Manufacturer Part Number | S5512GM4NR |
| Brand Name | Tyan |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H2 LGA-1155 |
| Processor Supported |
Xeon Quad-core Core i3 Pentium Dual-core |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Maximum Memory | 32 GB |
| Memory Speed Supported |
1.33 GHz 1.07 GHz 800 MHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/600 Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 1+0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2150 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 6 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 6 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS-6 |
