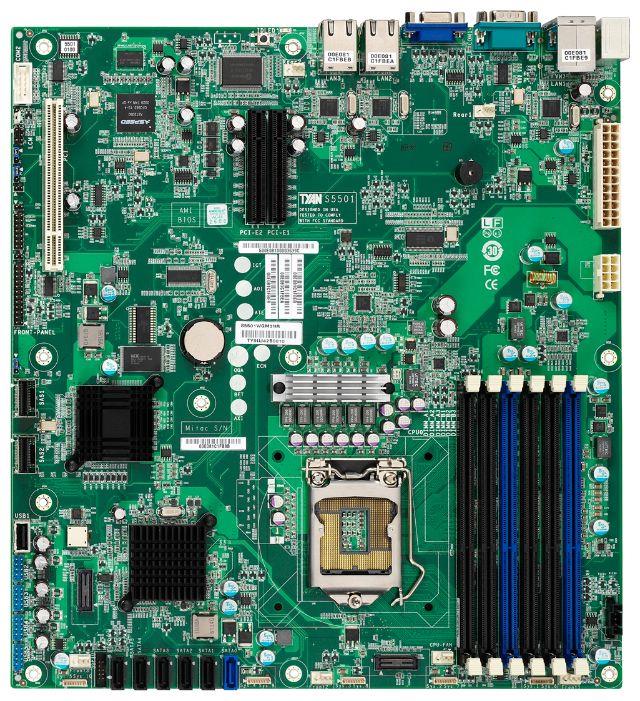

S5501WGM3NR Tyan MotherboardIntel 3420 DDR3 SdRam Socket 1156 Extended-ATX Server Motherboard (Refurbished)

S5501WGM3NR Tyan MotherboardIntel 3420 DDR3 SdRam Socket 1156 Extended-ATX Server Motherboard (Refurbished)

Mfg Part No:

S5501WGM3NR

$472.85 $622.17 You Save: $149.32 (24% Winter Discount)
Availability:Available for Order

Looking for a large quantity of S5501WGM3NR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for S5501WGM3NR

General Information
Manufacturer Part Number S5501WGM3NR
Brand Name Tyan
Product Type Server Motherboard
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket H LGA-1156
Processor Supported Xeon Dual-Core
Xeon Quad-core
Memory
Number of Memory Slots 6
Maximum Memory 32 GB
Memory Speed Supported 1.33 GHz
1.07 GHz
800 MHz
Memory Technology DDR3 SDRAM
I/O Controller
Controller Type Serial Attached SCSI (SAS)
Serial ATA/300
RAID Supported Yes
RAID Levels 0
1
5
1+0
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2050
Network & Communication
Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 3
Total Number of PCI Express Slots 2
Number of PCI Express x8 Slots 2
Interfaces/Ports
Total Number of USB Ports 2
Onboard Interfaces
Number of SATA Interfaces 6
Number of SAS Interfaces 2
Total Number of Onboard USB Ports 4
Physical Characteristics
Form Factor Extended ATX
Width 12"
Depth 13"
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS-6
