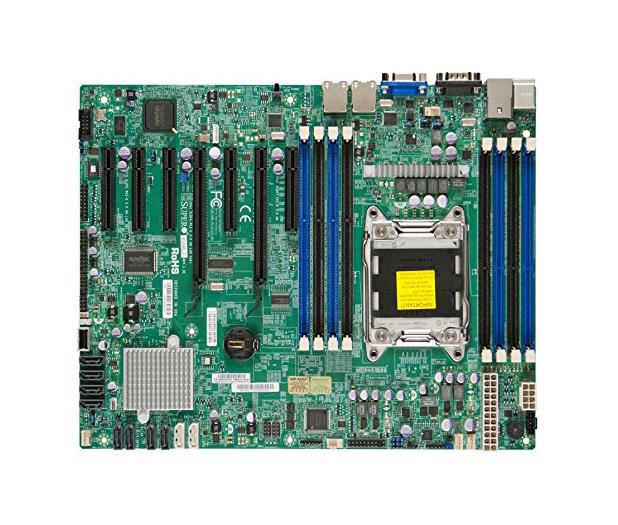

SuperMicro X9SRL-F Motherboard MBD-X9SRL-F-B
- Standard Memory: 0GB (Removable)
- Maximum Memory: 512GB using ECC Load Reduced DIMMs, 256GB Registered DIMMs, 64GB ECC Unbuffered DIMMs
- Memory Expansion: 8 Sockets
- CPU: Intel Xeon
- Chipset: Intel C600 Series
- Bus Architecture: PCI Express; SSD SATA 2.5-inch; USB
- Mfr System P/N: MBD-X9SRL-F-B
- Memory Comments: DDR3 modules automatically clock down depending on which Intel Xeon processor is used and the number of modules installed. Due to chipset limitations Quad Rank memory will operate at 1066MHz with 1 DIMM per Channel or 800MHz with 2 DIMMs per Channel. Modules of different memory types CANNOT be mixed within the same system. Please refer to the manual for additional memory instructions. Using LRDIMMs: Any configuration up to 512GB can be reached using any combination 16GB and 32GB modules in groups of four. Using ECC Registered DIMMs: Any configuration up to 256GB can be reached using any combination 2GB, 4GB, 8GB, 16GB and 32GB modules in Group of four. Using ECC Unbuffered DIMMs: Any configuration up to 64GB can be reached using 2GB, 4GB and 8GB modules in Group of four.
Memory Upgrade for SuperMicro X9SRL-F Motherboard MBD-X9SRL-F-B
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
M386B4G70DM0-YK04 | Samsung | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $60.73 | Add to List |
|
M386B4G70DM0-CMA4 | Samsung | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $83.59 | Add to List |
|
MT72KSZS4G72PZ-1G4E2 | Micron | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $71.55 | Add to List |
|
M393B2G70DB0-CMA | Samsung | PC-14900 1866Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $37.67 | Add to List |
|
HMT41GU6BFR8C-PB | Hynix | PC-12800 1600Mhz | 8 GB | Non-ECC Rank 2 | 1.5 | $36.20 | Add to List |
Memory Upgrade for SuperMicro X9SRL-F Motherboard MBD-X9SRL-F-B
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-14D358R4884-128G | 3D Memory | PC-10600 1333Mhz | 128 GB | Load Reduced ECC Rank 4 | 1.35 | $145.31 | Add to List |
|
3D-14D380R28360-64G | 3D Memory | PC-14900 1866Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $70.26 | Add to List |
|
3D-14D380R8333-32G | 3D Memory | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $63.61 | Add to List |
|
3D-14D380R8087-32G | 3D Memory | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $214.74 | Add to List |
|
|
3D-14D380R7988-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $36.33 | Add to List |
Accessories Upgrade for SuperMicro X9SRL-F Motherboard MBD-X9SRL-F-B
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
CM8063501291808 | LGA 2011 | E5-1660 v2 | 6 | 3.70 GHz | $155.57 | Add to List | |
|
CM8063501292405 | LGA 2011 | E5-1620 v2 | 4 | 3.70 GHz | $65.83 | Add to List | |
|
CM8063501292204 | LGA 2011 | E5-1650 v2 | 6 | 3.50 GHz | $63.65 | Add to List | |
|
CM8063501287203 | LGA 2011 | E5-2687W v2 | 8 | 3.40 GHz | $171.15 | Add to List | |
|
CM8063501293200 | LGA 2011 | E5-2658 v2 | 10 | 2.40 GHz | $62.09 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
WG82574L Intel 82574L Single-Port RJ-45 1Gbps Ethernet Controller$64.31
Power Supplies / Power Protection
Power Supplies
-
Add to List

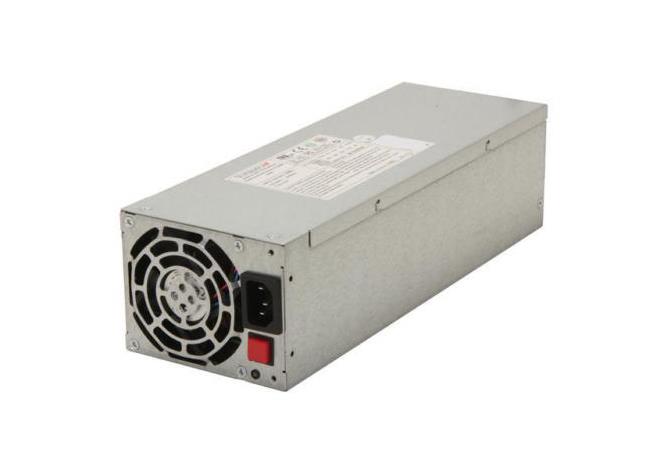

PWS-653-2H SuperMicro 650-Watts 100-240V 2U Multi-Output High-Efficiency Power Supply$458.95
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
MZ7LM3T8HCJM-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $712.71 | Add to List |
|
MZ7LM3T8HMLP-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $712.71 | Add to List |
|
MZ7LM1T9HCJM-00005 | Samsung | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Triple Level Cell (TLC) | $364.36 | Add to List |
|
SDLF1CRR-019T | SanDisk | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Multi-level Cell (MLC) | $335.16 | Add to List |
|
MTFDDAK1T9TCC-1AR1ZABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $364.36 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0086 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $285.22 | Add to List |
|
ST10000NM0016 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $285.22 | Add to List |
|
HUH721010ALE604 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $285.22 | Add to List |
|
HUH721010ALE600 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $285.22 | Add to List |
|
ST8000NM0206 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $250.26 | Add to List |
