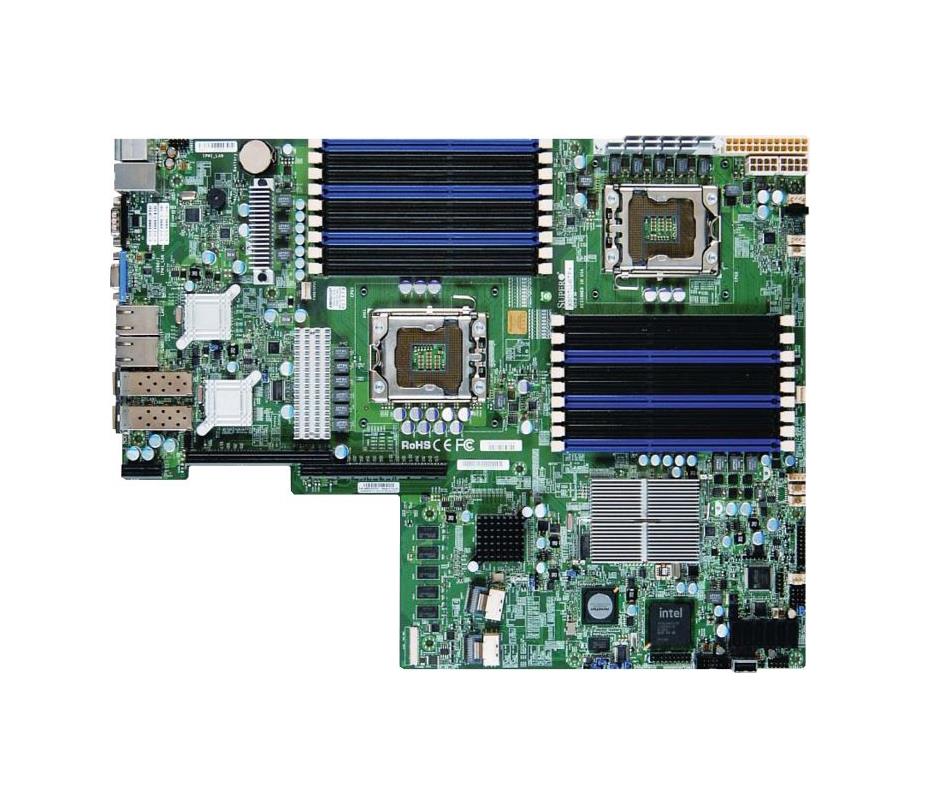

SuperMicro X8DTU-6TF+-LR Motherboard MBD-X8DTU-6TF+-LR-B
- Standard Memory: 0GB (Removable)
- Maximum Memory: 288GB ECC Registered DIMM, 48GB ECC Unbuffered DIMM
- Memory Expansion: 9 Sockets (3 Banks of 3) per CPU 18 Sockets (6 Banks of 3) using two CPUs
- CPU: Intel Xeon
- Chipset: Intel 5520
- Bus Architecture: PCI Express; SSD SATA 2.5-inch 9.5mm; USB
- Mfr System P/N: MBD-X8DTU-6TF+-LR-B
- Memory Comments: DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on which Intel Xeon model is used and the number of modules installed. Due to chipset limitations, DDR3 Quad Rank memory will operate at 1066MHz in the first Triple Channel bank. Adding Quad Rank modules in the second Triple Channel bank will operate at 800MHz. The third memory bank if present must be unpopulated. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Intel Xeon 5600 Series processors support 1.5V DDR3 and 1.35V low-voltage DDR3L memory. If 1.5V and 1.35V DIMMs are mixed, all DIMMs run at 1.5V. Xeon 5500 Series processors support only 1.5V memory. Due to chipset limitations, Unbuffered ECC DIMMs are limited to TWO Triple Channel Banks per processor on Intel Xeon 55xx series systems. Using ECC Registered DIMMs: any configuration up to 288GB can be reached using any combination of 1GB, 2GB, 4GB, 8GB, and 16GB modules. Using ECC Unbuffered DIMMs: any configuration up to 48GB can be reached using any combination of 1GB, 2GB, and 4GB modules.
Memory Upgrade for SuperMicro X8DTU-6TF+-LR Motherboard MBD-X8DTU-6TF+-LR-B
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D380R29323-24G | 3D Memory | PC-10600 1333Mhz | 24 GB | Registered ECC Rank 2 | 1.5 | $109.78 | Add to List |
|
|
3D-13D380R29309-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $73.18 | Add to List |
|
3D-13D380R9239-16G | 3D Memory | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $78.23 | Add to List |
|
3D-13D380R9569-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $36.59 | Add to List |
|
3D-13D380R9494-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 4 | 1.35 | $53.98 | Add to List |
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
ST800FM0002 | Seagate | SAS 6.0 Gbps | 800 GB | 2.5-inch | Enterprise MLC (eMLC) | $219.12 | Add to List |
|
SSDSA2BW600G3 | Intel | SATA 3.0 Gbps | 600 GB | 2.5-inch | Multi-level Cell (MLC) | $193.11 | Add to List |
|
MTFDDAC512MAM-1K1 | Micron | SATA 6.0 Gbps | 512 GB | 2.5-inch | Multi-level Cell (MLC) | $375.21 | Add to List |
|
SSDSA2BW300G3 | Intel | SATA 3.0 Gbps | 300 GB | 2.5-inch | Multi-level Cell (MLC) | $121.77 | Add to List |
|
MTFDDAC256MAM-1K1 | Micron | SATA 6.0 Gbps | 256 GB | 2.5-inch | Multi-level Cell (MLC) | $206.92 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST8000NM0085 | Seagate | SAS 12.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $277.52 | Add to List |
|
ST8000NM0075 | Seagate | SAS 12.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $277.52 | Add to List |
|
ST8000NM0065 | Seagate | SAS 12.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $277.52 | Add to List |
|
ST6000NM0245 | Seagate | SAS 12.0 Gbps | 6 TB | 3.5-inch | 256 MB | 7200 RPM | $152.39 | Add to List |
|
ST6000NM0115 | Seagate | SATA 6.0 Gbps | 6 TB | 3.5-inch | 256 MB | 7200 RPM | $230.23 | Add to List |
