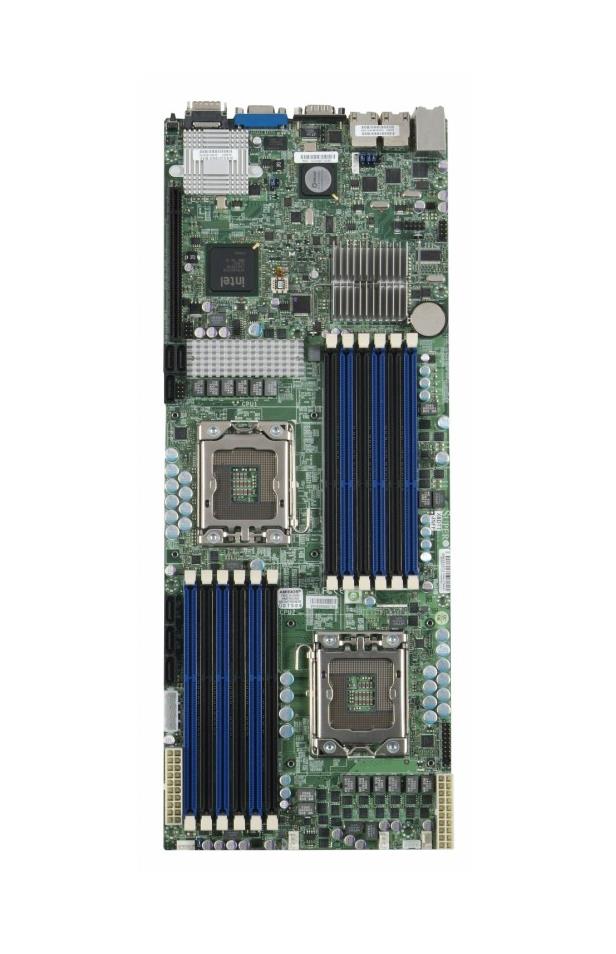

SuperMicro X8DTT-INF Motherboard MBD-X8DTT-INF-B
- Standard Memory: 0MB (Removable)
- Maximum Memory: 192GB Registered ECC DIMMs, 48GB ECC UDIMMs
- Memory Expansion: 12 Sockets (4 banks of 3) for Triple Channel mode
- CPU: Intel Xeon
- Chipset: Intel 5520
- Bus Architecture: PCI Express
- Mfr System P/N: MBD-X8DTT-INF-B; MBD-X8DTT-INF-O
- Memory Comments: DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on which Intel Xeon model is used and the number of modules installed. Due to chipset limitations, DDR3 Quad Rank memory will operate at 1066MHz in the first Triple Channel bank. Adding Quad Rank modules in the second Triple Channel bank will operate at 800MHz. The third memory bank if present must be unpopulated. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Due to chipset limitations, Unbuffered ECC DIMMs are limited to TWO Triple Channel Banks per processor on Intel Xeon 55xx series systems. Using Registered ECC DIMMs: any configuration up to 192GB can be reached using 1GB, 2GB, 4GB, 8GB, and 16GB modules. Using ECC Unbuffered DIMMs: any configuration up to 48GB can be reached using any combination of 1GB, 2GB and 4GB modules.
Memory Upgrade for SuperMicro X8DTT-INF Motherboard MBD-X8DTT-INF-B
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D362R2089-24G | 3D Memory | PC-8500 1066Mhz | 24 GB | Registered ECC Rank 4 | 1.5 | $109.78 | Add to List |
|
3D-13D328R2701-24G | 3D Memory | PC-10600 1333Mhz | 24 GB | Registered ECC Rank 2 | 1.5 | $109.78 | Add to List |
|
|
3D-13D362R2086-16G | 3D Memory | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $73.18 | Add to List |
|
|
3D-13D328R2698-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $73.18 | Add to List |
|
3D-13D338R8117-16G | 3D Memory | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $78.23 | Add to List |
