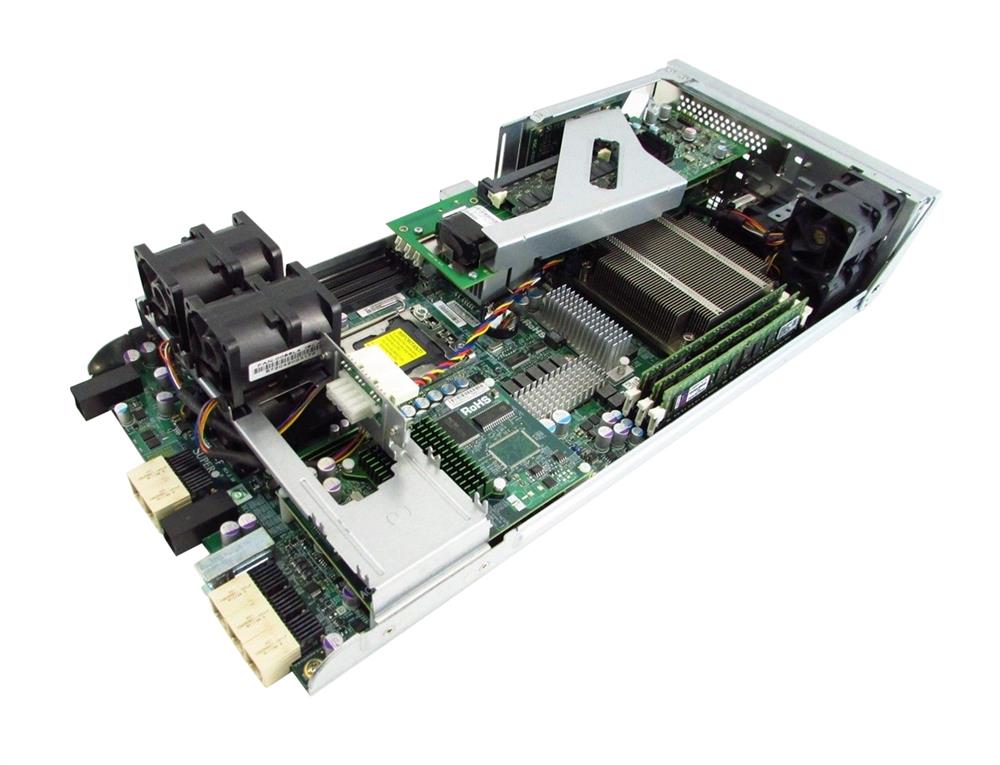

SuperMicro X8DTS-F Motherboard
- Standard Memory: 0MB (Removable)
- Maximum Memory: 24GB ECC Unbuffered DIMMs, 48GB ECC Registered DIMMs
- Memory Expansion: 3 Sockets (1 bank of 3) per CPU, 6 Sockets (2 Banks of 3) using two CPUs
- CPU: Intel Xeon
- Chipset: Intel 5520
- Bus Architecture: USB
- Memory Comments: DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on which Intel Xeon model is used and the number of modules installed. Due to chipset limitations, DDR3 Quad Rank memory will operate at 1066MHz in the first Triple Channel bank. Adding Quad Rank modules in the second Triple Channel bank will operate at 800MHz. The third memory bank if present must be unpopulated. Due to chipset limitations, Unbuffered ECC DIMMs are limited to TWO Triple Channel Banks per processor on Intel Xeon 55xx series systems. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Using ECC Registered DIMMs: any configuration up to 48GB can be reached using any combination of 1GB, 2GB, 4GB and 8GB modules. Using ECC Unbuffered DIMMs: any configuration up to 24GB can be reached using any combination of 1GB, 2GB, and 4GB modules.
Memory Upgrade for SuperMicro X8DTS-F Motherboard
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D362R29440-12G | 3D Memory | PC-10600 1333Mhz | 12 GB | Registered ECC Rank 2 | 1.5 | $114.81 | Add to List |
|
3D-13D362R9158-12G | 3D Memory | PC-8500 1066Mhz | 12 GB | Registered ECC Rank 4 | 1.5 | $114.81 | Add to List |
|
|
3D-13D362R29411-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.5 | $76.54 | Add to List |
|
3D-13D362R29383-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.5 | $36.59 | Add to List |
|
3D-13D362R29501-4G | 3D Memory | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 2 | 1.5 | $38.27 | Add to List |
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
SSDSC2BB016T7 | Intel | SATA 6.0 Gbps | 1.6 TB | 2.5-inch | Multi-level Cell (MLC) | $418.59 | Add to List |
|
SSDSC2BB012T7 | Intel | SATA 6.0 Gbps | 1.2 TB | 2.5-inch | Multi-level Cell (MLC) | $332.43 | Add to List |
|
SSDSC2BB960G7 | Intel | SATA 6.0 Gbps | 960 GB | 2.5-inch | Multi-level Cell (MLC) | $267.36 | Add to List |
|
SSDSC2BB800G7 | Intel | SATA 6.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $392.98 | Add to List |
|
SSDSA2BW600G3 | Intel | SATA 3.0 Gbps | 600 GB | 2.5-inch | Multi-level Cell (MLC) | $193.11 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST6000NM0115 | Seagate | SATA 6.0 Gbps | 6 TB | 3.5-inch | 256 MB | 7200 RPM | $230.23 | Add to List |
|
ST4000NM0035 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $192.00 | Add to List |
|
ST4000NM0115 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 256 MB | 7200 RPM | $251.40 | Add to List |
|
WD4000FYYZ | Western Digital | SATA 6.0 Gbps | 4 TB | 3.5-inch | 64 MB | 7200 RPM | $225.21 | Add to List |
|
WD4001FYYG | Western Digital | SAS 6.0 Gbps | 4 TB | 3.5-inch | 32 MB | 7200 RPM | $210.80 | Add to List |
