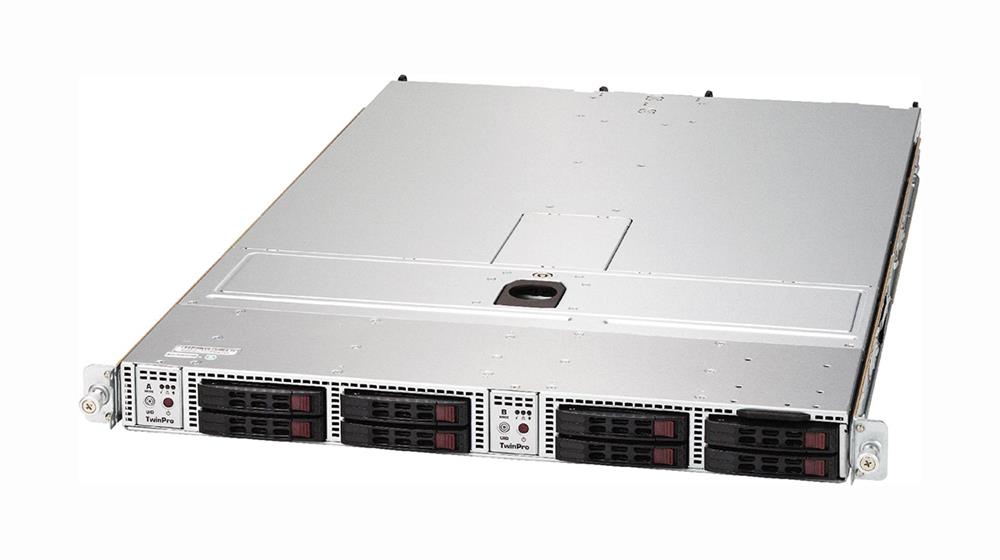

SYS-1028TP-DC1R Supermicro SuperServer 1028TP-DC1R Barebone System 1U Rack-mountable Intel C612 Chipset 2 Number of Node(s) Socket LGA 2011-v3 2 x Processor Support Black 1TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support 12Gb/s SAS RAID Supported Controller ASPEED AST2400 Integrated 4 x Total Bays 4 2.5" Bay(s) 2 x Total Expansion Slots Processor Support (Xeon) Gigabit Ethernet, Fast Ethernet 2 USB 3.0 Port(s) 2 x 1 kW
Mfg Part No:
Global Part Number (GPN):
SYS-1028TP-DC1R
Global Part Number (GPN):
1485793966
Looking for a large quantity of SYS-1028TP-DC1R? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for SYS-1028TP-DC1R
| General Information | |
| Manufacturer Part Number | SYS-1028TP-DC1R |
| Brand Name | Supermicro |
| Product Type | Barebone System |
| Processor & Chipset | |
| Number of Nodes | 2 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Supported | Xeon |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Memory | |
| Maximum Memory | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Number of Total Memory Slots | 16 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Ethernet Technology |
Gigabit Ethernet Fast Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of Internal 2.5" Bays | 4 |
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of SAS Interfaces | 4 |
| Power Description | |
| Input Voltage |
120 V AC 230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1000 W |
| Physical Characteristics | |
| Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 28.8" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
