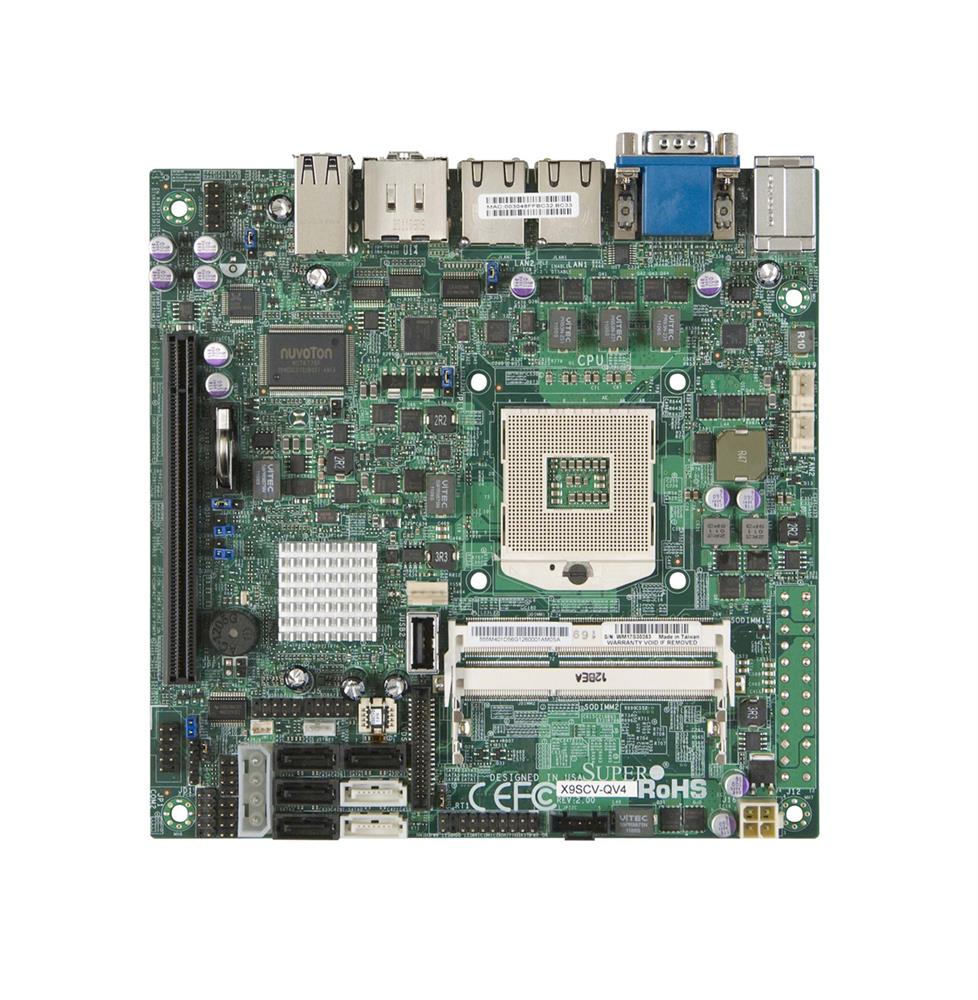

MBD-X9SCV-QV4-O SuperMicro X9SCV-QV4 Socket G2 Intel QM67 Chipset 2nd/3rd Generation Core i7 / i5 / i3 / Celeron Processors Support DDR3 2x So-DIMM 4x SATA2 3.0Gb/s Mini-ITX Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
MBD-X9SCV-QV4-O
Global Part Number (GPN):
1468457991
Looking for a large quantity of MBD-X9SCV-QV4-O? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for MBD-X9SCV-QV4-O
| General Information | |
| Manufacturer Part Number | MBD-X9SCV-QV4-O |
| Brand Name | Supermicro |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket G2 |
| Processor Supported |
Core i5 Core i7 Core i3 Celeron |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor |
SoDIMM UDIMM |
| Maximum Memory | 16 GB |
| Memory Speed Supported |
1.33 GHz 1.07 GHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/600 Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 1+0 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| VGA | Yes |
| HDMI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 5 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
RoHS-6 RoHS |
