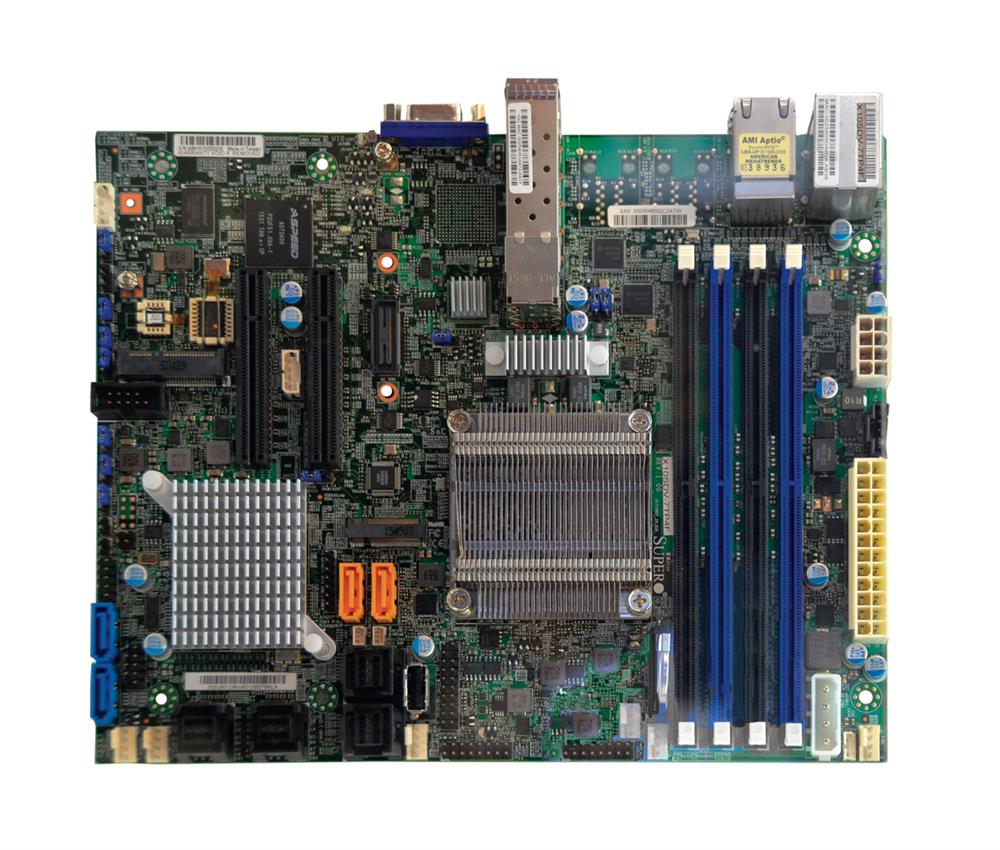

MBD-X10SDV-7TP4F-O SuperMicro X10SDV-7TP4F Socket FCBGA 1667 System On Chipset Intel Xeon Processors Support DDR4 4x DIMM 4x SATA3 6.0Gb/s Flex-ATX Server Motherboard (Refurbished)
Mfg Part No:
MBD-X10SDV-7TP4F-O
Looking for a large quantity of MBD-X10SDV-7TP4F-O? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for MBD-X10SDV-7TP4F-O
| General Information | |
| Manufacturer Part Number | MBD-X10SDV-7TP4F-O |
| Brand Name | Supermicro |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket BGA-1667 |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor |
UDIMM RDIMM DIMM |
| Maximum Memory | 128 GB |
| Memory Speed Supported |
2.13 GHz 1.87 GHz 1.60 GHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/600 6Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels |
10 5 1 0 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x8 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of SAS Interfaces | 16 |
| Total Number of Onboard USB Ports | 5 |
| Physical Characteristics | |
| Form Factor | Flex ATX |
| Width | 9" |
| Depth | 7.3" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
