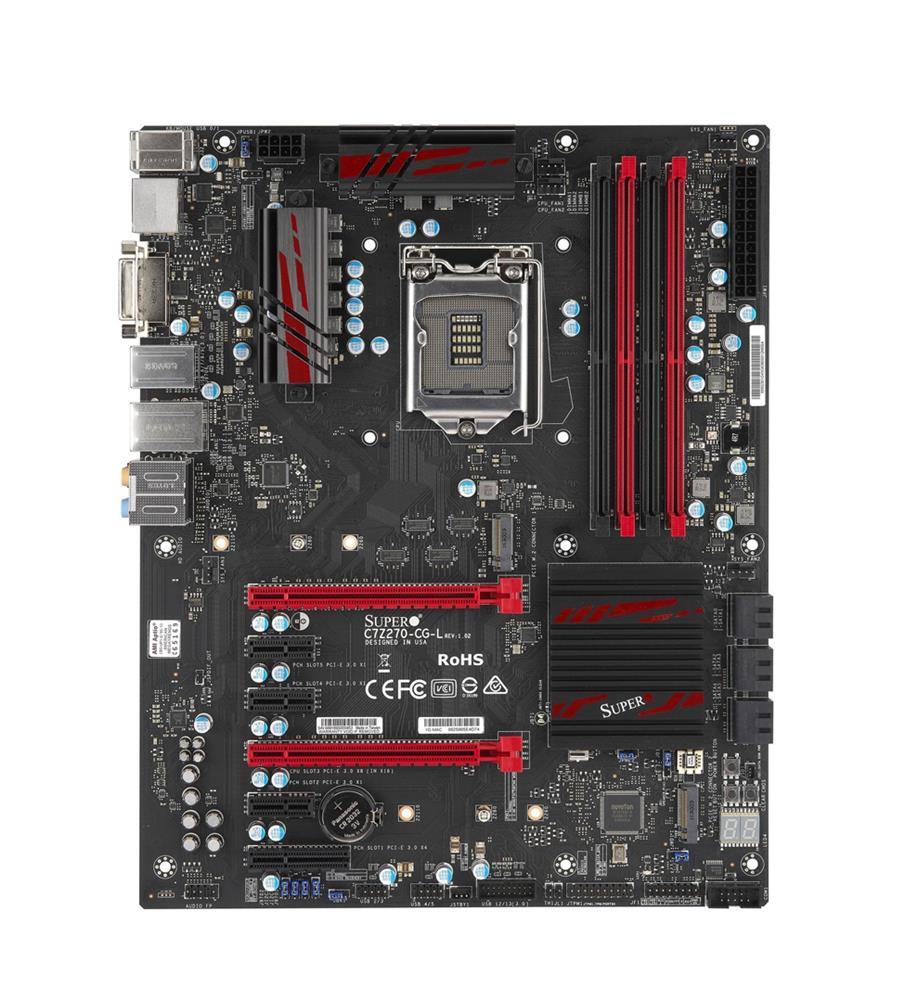

MBD-C7Z270-CG-L SuperMicro C7Z270-CG-L Socket LGA 1151 Intel Z270 Express Chipset 6th/7th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
Mfg Part No:
MBD-C7Z270-CG-L
Looking for a large quantity of MBD-C7Z270-CG-L? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for MBD-C7Z270-CG-L
| General Information | |
| Manufacturer Part Number | MBD-C7Z270-CG-L |
| Brand Name | Supermicro |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported |
Core i7 Core i3 Core i5 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor |
UDIMM DIMM |
| Maximum Memory | 64 GB |
| Memory Speed Supported | 2.80 GHz (O.C.) |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
10 5 1 0 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 4 |
| Number of USB 3.1 Ports | 2 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
