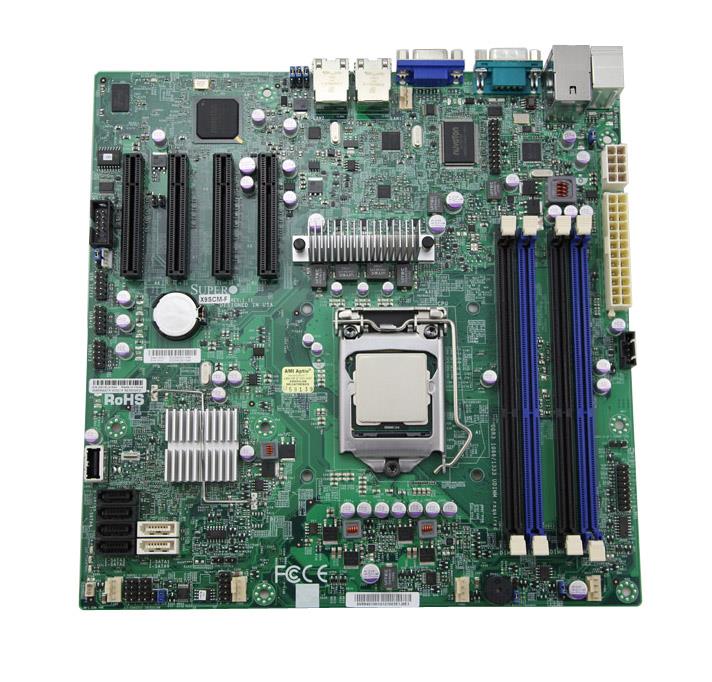

X9SCM SuperMicro Single Socket LGA 1155 Intel C204 Chipset Xeon E3-1200/ E3-1200 v2 Series 2nd & 3rd Generation Core i3/ Pentium/ Celeron Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s uATX Server Motherboard (Refurbished)

Mfg Part No:

X9SCM

Global Part Number (GPN):

1475626886

$289.33 $642.96 You Save: $353.63 (55% Special Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of X9SCM? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for X9SCM

Model
Manufacturer	SuperMicro
Manufacturer Part #	X9SCM
Performance
Product Type	Server System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1155
Supported CPU(s)	Intel Celeron Processor Intel Pentium Processor Intel Xeon Processor
Supported CPU Technologies	64-bit AES New Instructions Demand Based Switching Enhanced Intel Speedstep Technology Execute Disable Bit Idle States Intel 64 Architecture Intel Trusted Execution Technology Intel Turbo Boost Technology Intel Virtualization Technology Thermal Monitoring Technologies
Chipset	Intel C204
Number of Memory Slot(s)	4
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600)
Maximum Installed Memory	32GB
Expansion Slots	PCI Express x4 PCI Express x8
Expansion Slots Details	2 (x8) PCI-E 3.0 in x8 slots 1 (x4) PCI-E 2.0 in x8 slots
Storage Controller	Serial-ATA 3.0 Gbps Serial-ATA 6.0 Gbps
Storage Controller Details	6 SATA ports 6 SATA hard drives supported
On-Board Video Controller	BMC integrated Matrox G200
Network	Gigabit Ethernet
Connectors/Ports	RJ-45 (Ethernet) USB 2.0
Connectors/Ports Details	2x RJ45 LAN ports 9x USB 2.0 ports total (2x rear + 6x via header + 1x type A) 1x VGA port 2x Fast UART 16550 serial port (one header and one rear port) 1x DOM (Disk on Module) power connector 1x TPM Header

Request for Quote: X9SCM

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no X9SCM. Or Request a Quote below:

Quantity

How soon you need it?

General Information

X9SCM SuperMicro Single Socket LGA 1155 Intel C204 Chipset Xeon E3-1200/ E3-1200 v2 Series 2nd & 3rd Generation Core i3/ Pentium/ Celeron Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s uATX Server Motherboard (Refurbished)
