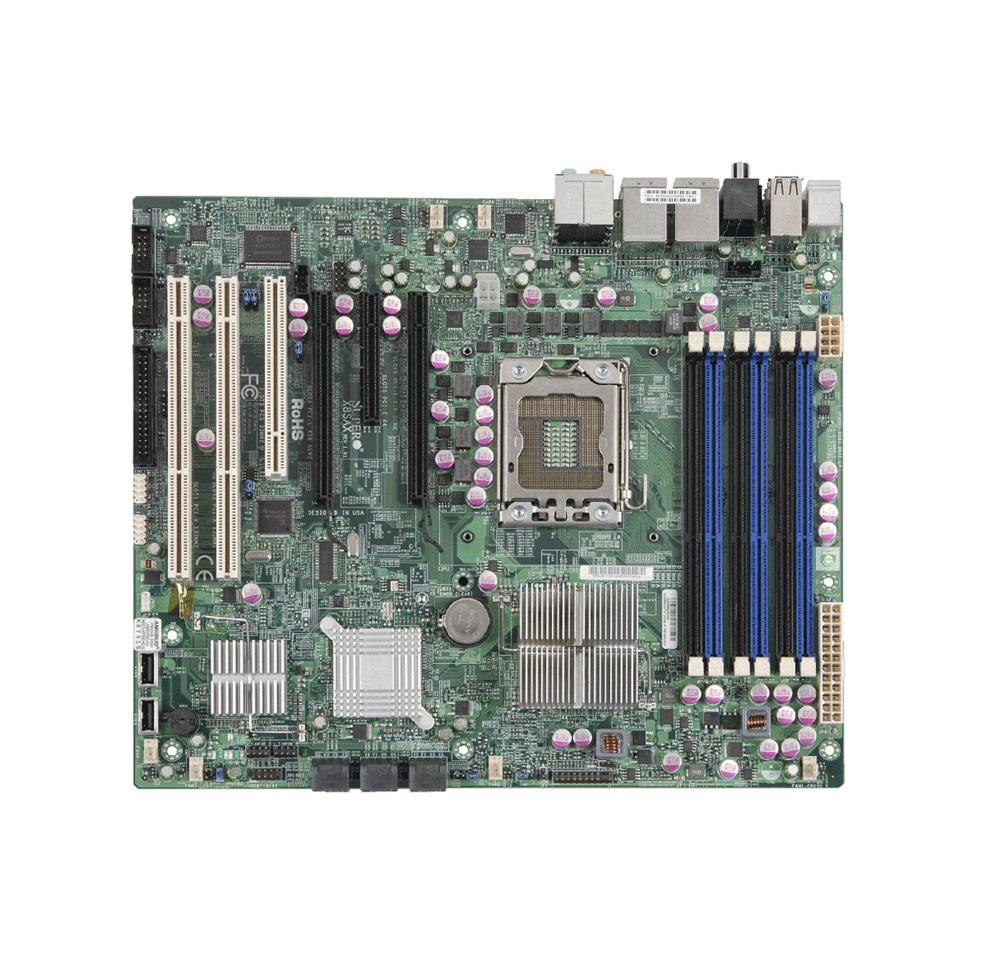

X8SAX-B SuperMicro X8SAX LGA 1366 Intel X58 Express Chipset Intel Xeon Series/ Core i7/i7 Extreme Edition Processors Support DDR3 6x DIMM 6x SATA 3.0Gb/s ATX Server Motherboard (Refurbished)

Mfg Part No:

X8SAX-B

$477.90 $682.72 You Save: $204.82 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of X8SAX-B? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for X8SAX-B

General Information
Manufacturer Part Number	X8SAX-B
Brand Name	Supermicro
Product Type	Desktop Motherboard
Processor & Chipset
Chipset Manufacturer	Intel
Total Processor Supported	1
Processor Socket	Socket B LGA-1366
Processor Supported	Core i7 Core i7 Extreme Edition
Memory
Number of Memory Slots	6
Maximum Memory	24 GB
Memory Speed Supported	1.33 GHz 1.07 GHz 800 MHz
Memory Technology	DDR3 SDRAM
I/O Controller
Controller Type	Floppy Controller Serial ATA/300
RAID Supported	Yes
RAID Levels	0 1 5 1+0
Audio
Audio Channels	7.1
Network & Communication
Gigabit Ethernet	Yes
I/O Expansions
Number of Total Expansion Slots	6
Total Number of PCI Express Slots	3
Number of PCI Express x4 Slots	1
Number of PCI Express x16 Slots	2
Interfaces/Ports
Total Number of USB Ports	8
S/PDIF	Yes
Onboard Interfaces
Number of SATA Interfaces	6
Total Number of Onboard USB Ports	3
Onboard S/PDIF Header	Yes
Physical Characteristics
Form Factor	ATX
Width	12"
Depth	10"
Miscellaneous
Environmentally Friendly	Yes
Environmental Certification	RoHS
