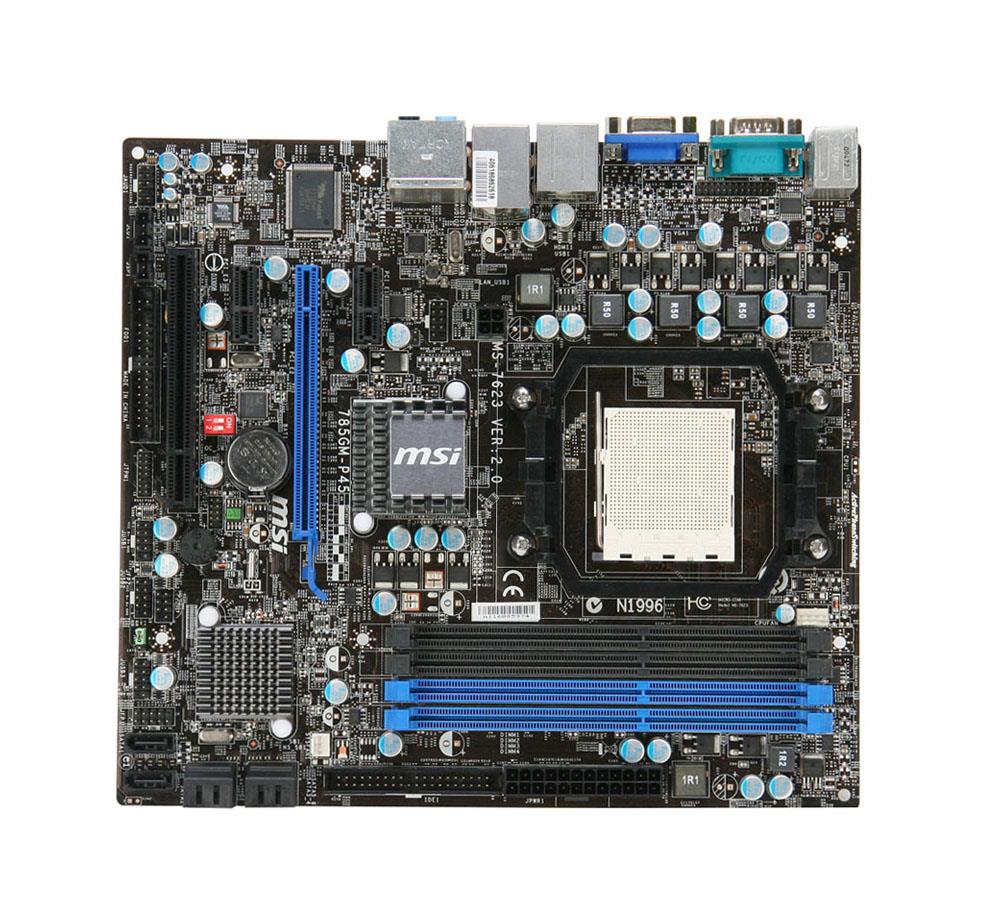

MS-7623 MSI Socket AM3 AMD 785G + SB710 Chipset AMD Phenom II X4/ Phenom II X3/ Phenom II X2/ Phenom II/ AMD Athlon II X4/ Athlon II X3/ Athlon II X2 Processors Support DDR3 4x DIMM 5x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

MS-7623

$228.15 $304.20 You Save: $76.05 (25% Autumn Discount)
Availability:In Stock

Looking for a large quantity of MS-7623? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for MS-7623

Model
Manufacturer MSI
Manufacturer Part # MS-7623
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type Socket AM3
Supported CPU(s) AMD Phenom II Processor
Chipset AMD 785G
South Bridge Chipset AMD SB710
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-6400 (DDR3-800)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 16 GB
Expansion Slots PCI-E 2.0 x16
PCI-E x1
Storage Controller SATA 3.0 Gbps
Audio Controller VIA VT1708S
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
HDMI
Microphone
PS/2 Keyboard
PS/2 Mouse
RJ-45
TPM Header
USB 2.0
VGA
Connectors/Ports Details Internal Connectors
  • 1 x 24-pin ATX power
  • 1 x 4-pin ATX 12V power
  • 1 x ATA/133
  • 1 x CD in
  • 1 x CPU Fan
  • 1 x Chassis Intrusion
  • 1 x Clear CMOS jumper
  • 1 x FDD
  • 1 x Front panel
  • 1 x Front panel audio
  • 1 x Overclocking switch
  • 1 x Parallel
  • 1 x S/PDIF out
  • 1 x Serial
  • 1 x System Fan
  • 1 x TPM module
  • 3 x USB 2.0
  • 6 x SATA II

  • Rear Panel Ports
  • 1 x HDMI
  • 1 x Keyboard PS/2
  • 1 x Mouse PS/2
  • 1 x RJ45
  • 1 x Serial
  • 1 x VGA
  • 4 x USB 2.0
  • 6 x Audio
  • Request for Quote:  MS-7623

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no MS-7623. Or Request a Quote below:



    General Information

  • MS-7623 MSI Socket AM3 AMD 785G + SB710 Chipset AMD Phenom II X4/ Phenom II X3/ Phenom II X2/ Phenom II/ AMD Athlon II X4/ Athlon II X3/ Athlon II X2 Processors Support DDR3 4x DIMM 5x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
