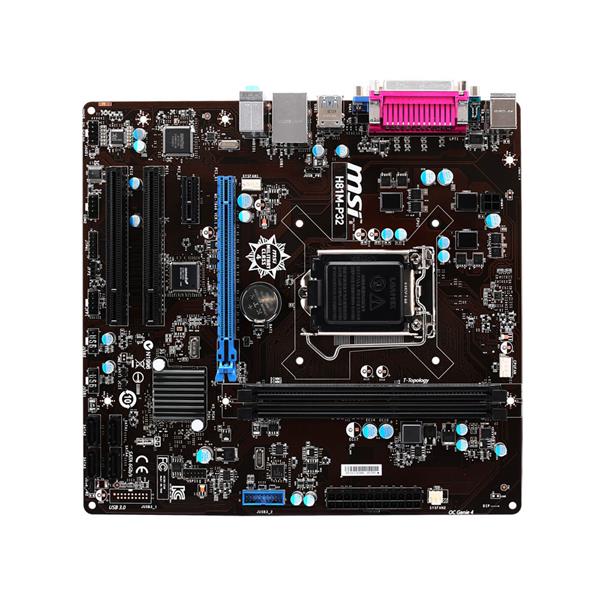

CSM-H81M-P32 MSI Socket LGA 1150 Intel H81 Chipset Intel Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 2x DIMM 2x SATA 3.0Gb/s Micro-ATX Motherboard (Refurbished)
Mfg Part No:
CSM-H81M-P32
Looking for a large quantity of CSM-H81M-P32? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for CSM-H81M-P32
| General Information | |
| Manufacturer Part Number | CSM-H81M-P32 |
| Brand Name | MSI |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| Processor Supported |
Core i7 Core i5 Core i3 Pentium Celeron |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| Maximum Memory | 16 GB |
| Memory Speed Supported |
1.60 GHz 1.33 GHz 1.07 GHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/600 Serial ATA/300 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Height | 5.2" |
| Width | 9.6" |
| Depth | 9" |
| Weight (Approximate) | 2.82 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
WEEE China RoHS |
| Country of Origin | China |
