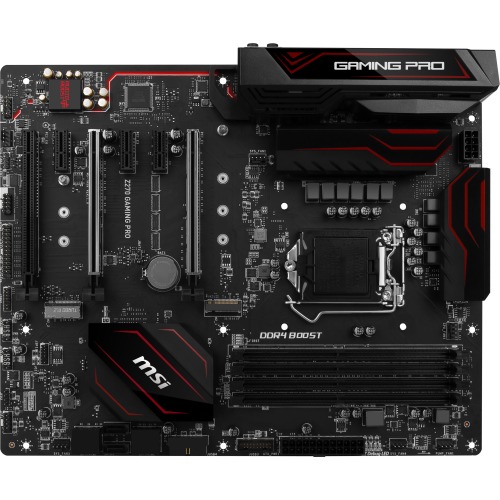

7A63-002R MSI Z270 GAMING PRO Socket LGA 1151 Intel Z270 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)
Mfg Part No:
7A63-002R
Looking for a large quantity of 7A63-002R? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for 7A63-002R
| General Information | |
| Manufacturer Part Number | 7A63-002R |
| Brand Name | MSI |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported |
Core i7 Core i3 Core i5 Pentium Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor |
DIMM UDIMM |
| Maximum Memory | 64 GB |
| Memory Speed Supported |
3 GHz (O.C.) 2.80 GHz (O.C.) 3.60 GHz (O.C.) 3.80 GHz (O.C.) 2.60 GHz (O.C.) 2.40 GHz (O.C.) 3.20 GHz (O.C.) 2.13 GHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
10 5 1 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.1 Ports | 6 |
| HDMI | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 3.1 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
