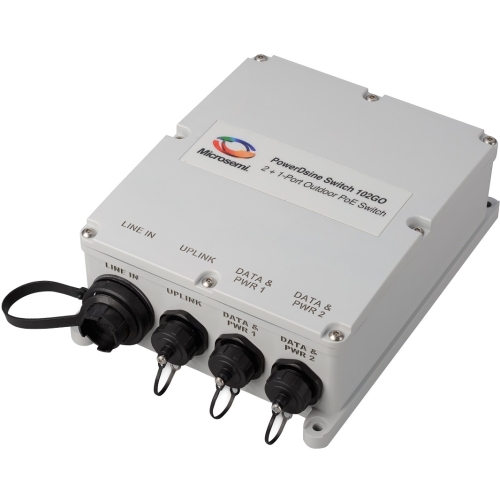

PDS-102GO/AC Microsemi PDS-102GO Outdoor PoE Switch 120 V AC, 230 V AC Input 54 V DC Output 1 Gigabit Ethernet Input Port(s) 2 PoE Output Port(s) 60 W

Mfg Part No:

PDS-102GO/AC

Global Part Number (GPN):

1487616216

Call us at (800) 821-3354 for price and availability or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for PDS-102GO/AC

General Information
Manufacturer Part Number	PDS-102GO/AC
Brand Name	Microsemi
Product Type	PoE Injector
Technical Information
Protection Type	Lightning Protection Surge Protection
Power Description
Input Voltage	120 V AC 230 V AC
Maximum Output Voltage	54 V DC
Maximum Output Power	60 W
Interfaces/Ports
Input Ports	1 Gigabit Ethernet
Output Ports	2 PoE
Physical Characteristics
Form Factor	Pole Mountable
Height	2.8"
Width	5.9"
Length	8.4"
Weight (Approximate)	2.09 lb
Miscellaneous
Certifications & Standards	Electromagnetic Emission & Unity: FCC Part 15, Class B EN 55022 Class B EN 55024, EN61000-4-5 Class 5 (6kV CM) VCCI Safety Approvals: Meets Surge Protection as specified in GR-1089-CORE Issue 4 ITU-T K.20 6 kV on AC lines Other Standards and Approvals: Dust and water intrusion: IEC60529, Level1P66 NEMA 250 IEEE 802.3af IEEE 802.3at
Environmentally Friendly	Yes
Environmental Certification	WEEE RoHS GS
