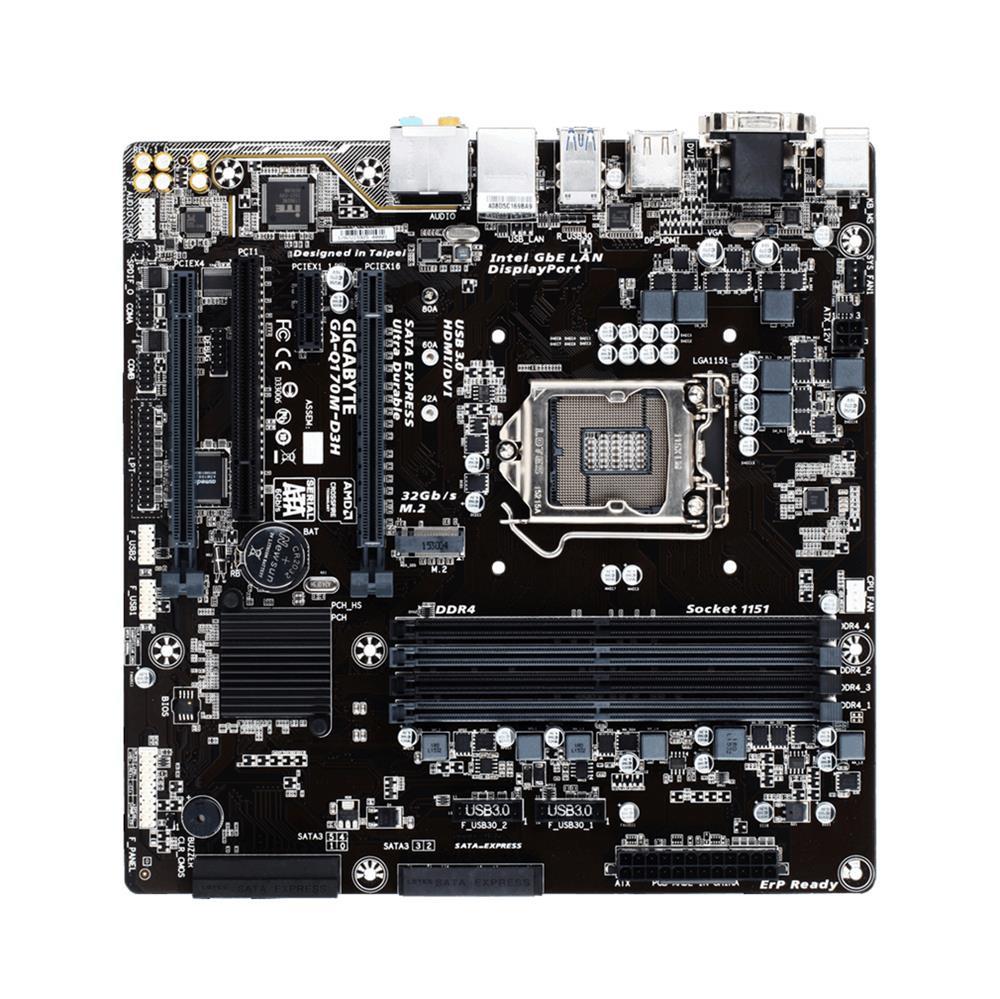

GA-Q170M-D3H Gigabyte Socket LGA 1151 Intel Q170 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

GA-Q170M-D3H

Global Part Number (GPN):

1481977158

$326.54 $725.65 You Save: $399.11 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of GA-Q170M-D3H? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for GA-Q170M-D3H

Model
Manufacturer	Gigabyte Tech
Manufacturer Part #	GA-Q170M-D3H
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Chipset	Intel Q170
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133)
Maximum Installed Memory	4 GB
Expansion Slots	PCI-E x1 PCI-E x16
Storage Controller	SATA 6.0 Gbps
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector Chassis Fan Connector COM CPU Fan Connector DVI-D HDMI PS/2 Keyboard PS/2 Mouse RJ-45 Serial USB 1.1 USB 2.0 USB 3.0 VGA
Connectors/Ports Details	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 3 x SATA Express connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x speaker header 2 x USB 3.0/2.0 headers 2 x USB 2.0/1.1 headers 2 x serial port headers 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x DisplayPort 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Request for Quote: GA-Q170M-D3H

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-Q170M-D3H. Or Request a Quote below:

Quantity

How soon you need it?

General Information

GA-Q170M-D3H Gigabyte Socket LGA 1151 Intel Q170 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
