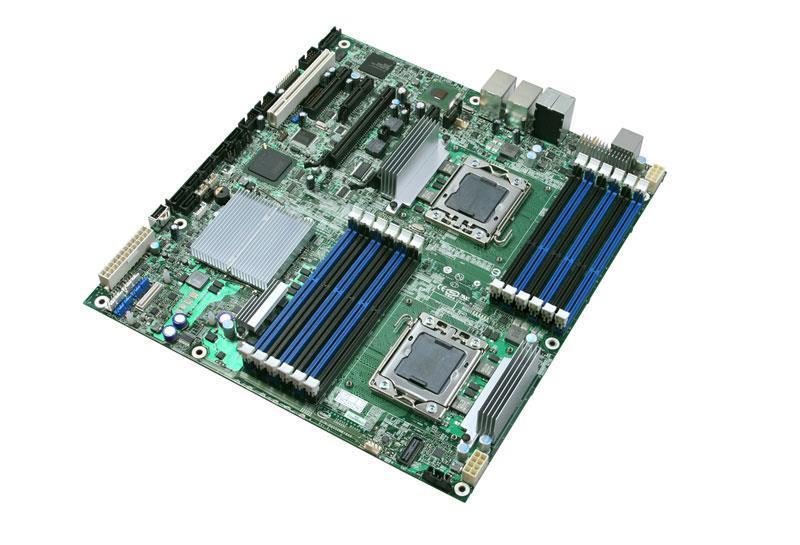

Intel S5520SCR Workstation Board
- Standard Memory: 0GB (Removable)
- Maximum Memory: 192GB
- Memory Expansion: Intel Xeon
- CPU: Intel 5520
- Chipset: PCI Express
- Bus Architecture: SHADY COVE
- Memory Comments: DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on which Intel Xeon model is installed and how many module Banks are populated. Please refer to the system manual for proper installation of DIMMs for Single, Dual, and Triple Channel configurations. Due to chipset limitations, DDR3 Quad Rank memory is limited to operate at a maximum of 1066Mhz. When two Quad Rank modules are installed per bank, the processor will automatically clock them down to 800MHz. Mixing x4 and x8 modules is allowed, however not within the same bank. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Due to chipset limitations, Unbuffered ECC DIMMs are limited to TWO Triple Channel Banks per processor on Intel Xeon 55xx series systems. Any configuration up to 192GB can be reached using 1GB, 2GB, 4GB, 8GB, and 16GB modules.
Memory Upgrade for Intel S5520SCR Workstation Board
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
DTM64327D | Dataram | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $71.95 | Add to List |
|

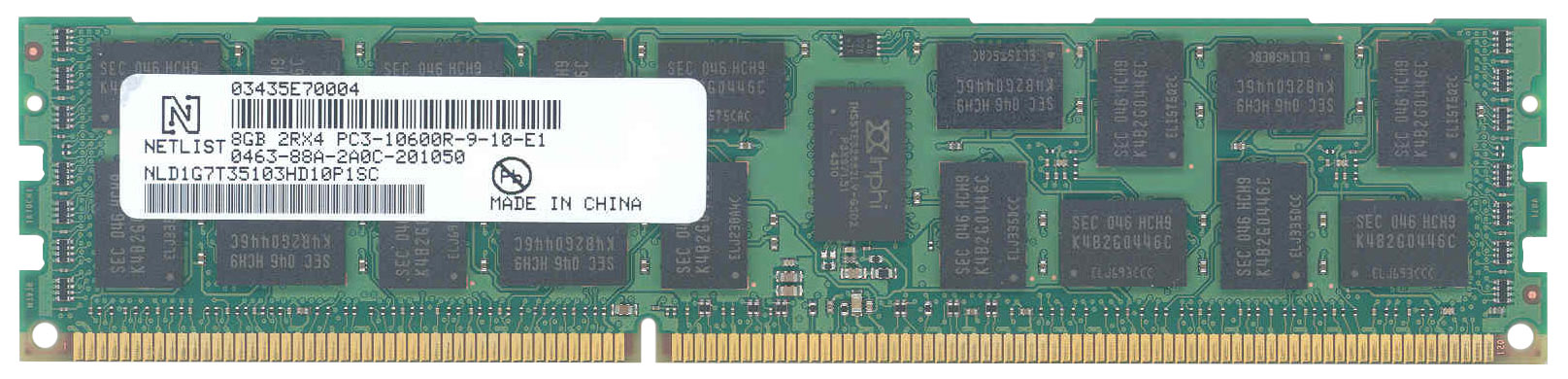

NLD1G7T35103HD10P1SC | NetList | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.5 | $43.94 | Add to List |
|
KVR13E9/8I | Kingston | PC-10600 1333Mhz | 8 GB | ECC Rank 2 | 1.5 | $55.55 | Add to List |
|

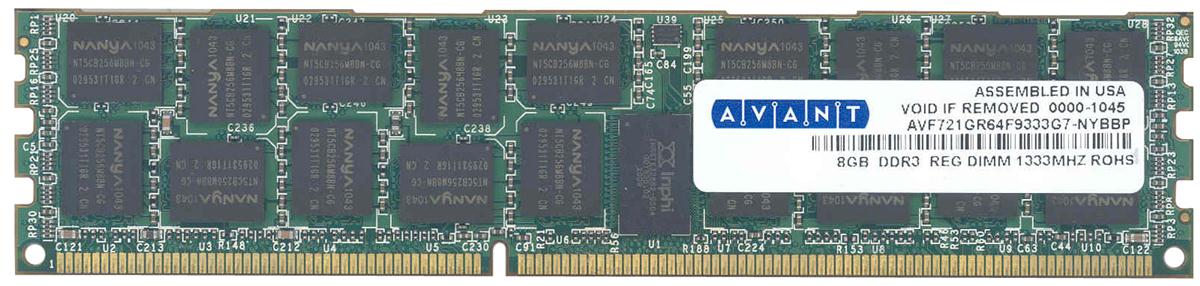

AVF721GR64F9333G7-NYBBP | Avant | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $43.94 | Add to List |
|
AL24P72E4BKH9S | ATP | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.35 | $38.52 | Add to List |
Memory Upgrade for Intel S5520SCR Workstation Board
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D378R29852-24G | 3D Memory | PC-10600 1333Mhz | 24 GB | Registered ECC Rank 2 | 1.5 | $109.78 | Add to List |
|
3D-13D379R10050-12G | 3D Memory | PC-10600 1333Mhz | 12 GB | Registered ECC Rank 1 | 1.5 | $114.81 | Add to List |
|
|
3D-13D378R29842-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $73.18 | Add to List |
|
3D-13D378R9812-16G | 3D Memory | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $78.23 | Add to List |
|
3D-13D378R29933-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.35 | $53.98 | Add to List |
Accessories Upgrade for Intel S5520SCR Workstation Board
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
X5690 | LGA 1366 | X5690 | 6 | 3.46 GHz | $212.24 | Add to List | |
|
E5645 | LGA 1366 | E5645 | 6 | 2.40 GHz | $148.81 | Add to List | |
|
L5518 | LGA 1366 | L5518 | 4 | 2.13 GHz | $67.75 | Add to List | |
|
L5638 | LGA 1366 | L5638 | 6 | 2.00 GHz | $113.81 | Add to List | |
|
E5504 | LGA 1366 | E5504 | 4 | 2.00 GHz | $102.05 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
E1G42ET Intel Dual-Ports RJ-45 1Gbps 10Base-T/100Base-TX/1000Base-T Gigabit Ethernet PCI Express 2.0 x4 Server Network Adapter$54.89 -
Add to List
E1G42EF Intel Gigabit EF Dual-Ports LC 1Gbps 1000Base-SX Gigabit Ethernet PCI Express 2.0 x4 Server Network Adapter$106.98 -
Add to List
EXPI9404PTL Intel PRO/1000 PT Quad-Ports RJ-45 1Gbps 10Base-T/100Base-TX/1000Base-T Gigabit Ethernet PCI Express x4 Low Profile Server Network Adapter$38.30 -
Add to List
EXPI9402PF Intel PRO/1000 PF Dual-Ports LC 1Gbps 1000Base-SX Gigabit Ethernet PCI Express x4 Server Network Adapter$147.96 -
Add to List
EXPI9402PT Intel PRO/1000 PT Dual-Ports RJ-45 1Gbps 10Base-T/100Base-TX/1000Base-T Gigabit Ethernet PCI Express x4 Server Network Adapter$52.78
Power Supplies / Power Protection
Power Supplies
-
Add to List
FXXRIGT670WPSU Intel 670-Watts ATX Power Supply for SC5600BASE Server Chassis$256.68
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
MZ7LM3T8HCJM-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,905.01 | Add to List |
|
MZ7LM3T8HMLP-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,905.01 | Add to List |
|
MTFDDAK1T9TCB-1AR1ZABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
|
SDLF1CRR-019T-1HA2 | SanDisk | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Multi-level Cell (MLC) | $833.29 | Add to List |
|
MZ7LM1T9HMJP-00005 | Samsung | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Triple Level Cell (TLC) | $951.87 | Add to List |
Storage
Controllers
-
Add to List
RS25NB008 Intel 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$382.01 -
Add to List
RS25DB080 Intel 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$453.73 -
Add to List
RT3WB080 Intel 256MB Cache 8-Port SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$580.06 -
Add to List
RS2WC080 Intel 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/10/50 Controller Card$115.09 -
Add to List
RS2WC040 Intel 4-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/10/50 Controller Card$157.89
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0016 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
ST8000NE0001 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $434.06 | Add to List |
|
ST6000VN0001 | Seagate | SATA 6.0 Gbps | 6 TB | 3.5-inch | 128 MB | 7200 RPM | $251.22 | Add to List |
|
ST5000NM0024 | Seagate | SATA 6.0 Gbps | 5 TB | 3.5-inch | 128 MB | 7200 RPM | $233.02 | Add to List |
|
ST4000VN0001 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $296.82 | Add to List |
