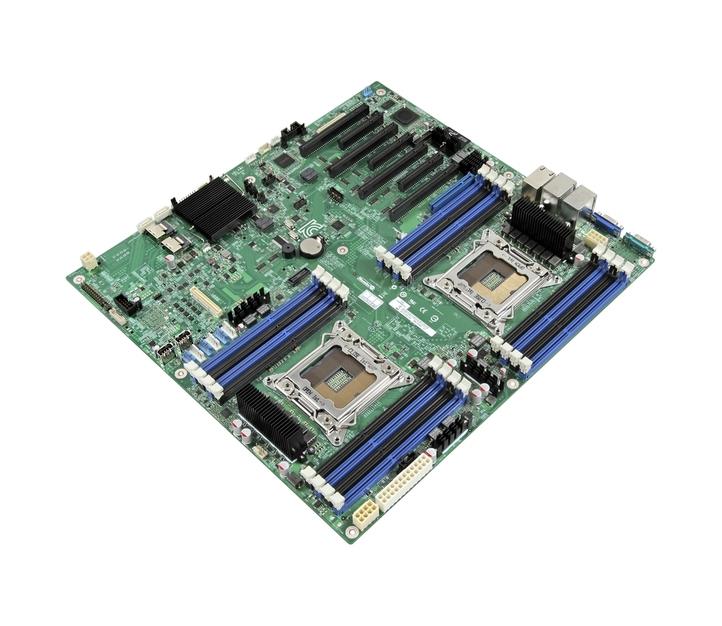

Intel S2600IP4 Server Board IRON PASS
- Standard Memory: 0GB (Removable)
- Maximum Memory: 512GB ECC LRDIMMs, 512GB Reg ECC RDIMMs, 64GB ECC UDIMMs
- Memory Expansion: 8 Sockets per processor, 16 Sockets with two processors
- CPU: Intel Xeon E5-2600 v1/v2 Series
- Chipset: Intel C602
- Bus Architecture: PCI Express; PCI-X; USB
- Mfr System P/N: S2600IP4
- Memory Comments: DDR3-1600 modules automatically clock down to 1333MHz and 1066MHz depending on which Intel Xeon model is installed and how many module Banks are populated. Please refer to the system manual for proper installation of DIMMs for Single, Dual, and Triple Channel configurations. Due to chipset limitations, DDR3 Quad Rank memory is limited to operate at a maximum of 1066Mhz. When two Quad Rank modules are installed per channel, the processor will automatically clock them down to 800MHz. Quad Rank modules are limited to 2 DIMMs Per Channel only. Third bank must remain empty. Maximum configuration is 512GB (16x32GB QR RDIMMs). Mixing x4 and x8 modules is allowed, however not within the same bank. Intel Xeon E5 Series processors support 1.5V DDR3 and 1.35V low-voltage DDR3L memory. If 1.5V and 1.35V DIMMs are mixed, all DIMMs run at 1.5V.
Memory Upgrade for Intel S2600IP4 Server Board IRON PASS
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
D3-64WT124SLV-11 | Ventura | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $101.83 | Add to List |
|
HMT84GL7AMR4A-PB | Hynix | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $113.14 | Add to List |
|
HMT84GL7AMR4C-RD | Hynix | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $51.26 | Add to List |
|
ACT32GHR72Q4J1066S | ACTICA | PC-8500 1066Mhz | 32 GB | Registered ECC Rank 4 | 1.5 | $88.29 | Add to List |
|
M386B4G70BM0-YH9 | Samsung | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $113.09 | Add to List |
Memory Upgrade for Intel S2600IP4 Server Board IRON PASS
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-15D309R26826-64G | 3D Memory | PC-14900 1866Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $312.93 | Add to List |
|
3D-15D309R26622-64G | 3D Memory | PC-12800 1600Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $312.93 | Add to List |
|
3D-15D309R6457-32G | 3D Memory | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $149.25 | Add to List |
|
3D-15D309R6406-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $288.85 | Add to List |
|
|
3D-15D309R26797-16G | 3D Memory | PC-14900 1866Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $78.23 | Add to List |
Accessories Upgrade for Intel S2600IP4 Server Board IRON PASS
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
E5-2697 v2 | LGA 2011 | E5-2697 v2 | 12 | 2.70 GHz | $121.00 | Add to List | |
|
E5-2609 v2 | LGA 2011 | E5-2609 v2 | 4 | 2.50 GHz | $121.00 | Add to List | |
|
E5-2670 v2 | LGA 2011 | E5-2670 v2 | 10 | 2.50 GHz | $121.00 | Add to List | |
|
E5-2630L v2 | LGA 2011 | E5-2630L v2 | 6 | 2.40 GHz | $134.90 | Add to List | |
|
E5-2695 v2 | LGA 2011 | E5-2695 v2 | 12 | 2.40 GHz | $121.00 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
I210T1 Intel Single-Port RJ-45 1Gbps 10Base-T/100Base-TX/1000Base-T Gigabit Ethernet PCI Express 2.1 x1 Server Network Adapter$87.26 -
Add to List
AXX10GBNIAIOM Intel 82599EB Dual-Ports 10Gbps SFP+ 10GBase-T I/O Module$188.96 -
Add to List
AXX4P1GBPWLIOM Intel I350-AE4 Quad-Ports RJ-45 1Gbps I/O Module$193.08 -
Add to List
AXX10GBTWLIOM Intel X540 Dual-Ports RJ-45 10Gbps 10GBase-T I/O Module$489.64 -
Add to List
I350F2 Intel Dual-Ports LC 1Gbps 1000Base-SX Gigabit Ethernet PCI Express 2.1 x4 Server Network Adapter$211.53
Power Supplies / Power Protection
Power Supplies
-
Add to List

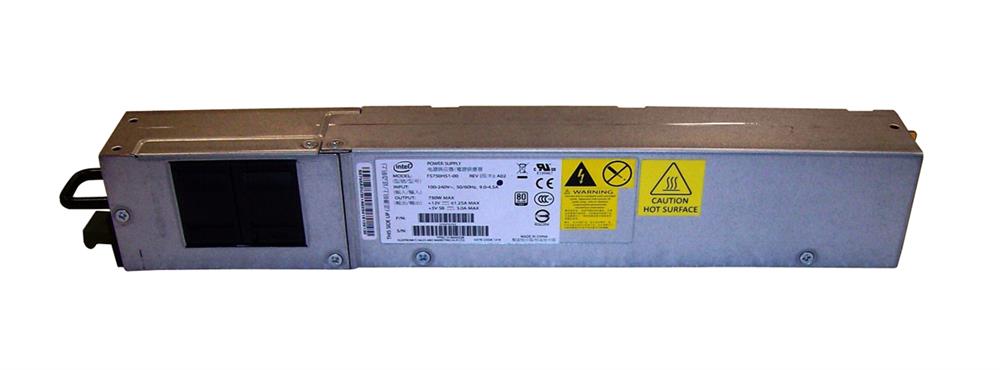

FXX750GERPS Intel 750-Watts High Efficiency Gold Hot Swap Power Supply$408.65
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
MZ7LM3T8HCJM-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,905.01 | Add to List |
|
MZ7LM3T8HMLP-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,905.01 | Add to List |
|
MTFDDAK1T9TCB-1AR1ZABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
|
SDLF1CRR-019T-1HA2 | SanDisk | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Multi-level Cell (MLC) | $833.29 | Add to List |
|
MZ7LM1T9HMJP-00005 | Samsung | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Triple Level Cell (TLC) | $951.87 | Add to List |
Storage
Controllers
-
Add to List
RMS25PB040 Intel 1GB Cache 4-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$133.85 -
Add to List
RMT3PB080 Intel 512MB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$167.31 -
Add to List
RMS25KB080 Intel 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/1E/10 Controller Card$32.11 -
Add to List
RMS25PB080 Intel 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$127.99 -
Add to List
RS25AB080 Intel 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$708.40
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0016 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
ST8000NE0001 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $434.06 | Add to List |
|
ST6000VN0001 | Seagate | SATA 6.0 Gbps | 6 TB | 3.5-inch | 128 MB | 7200 RPM | $251.22 | Add to List |
|
ST5000NM0024 | Seagate | SATA 6.0 Gbps | 5 TB | 3.5-inch | 128 MB | 7200 RPM | $233.02 | Add to List |
|
ST4000VN0001 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $296.82 | Add to List |
