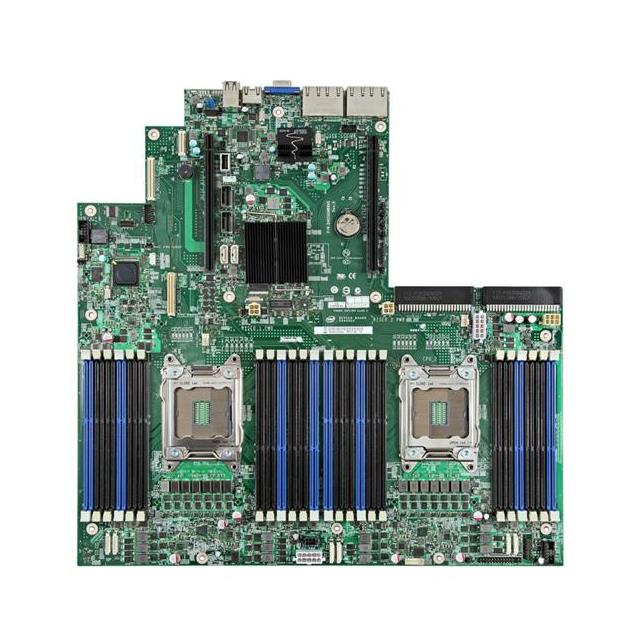

Intel S2600GZ4 Server Board GRIZZLY PASS
- Standard Memory: 0GB (Removable)
- Maximum Memory: 768GB ECC LRDIMMs, 512GB Reg ECC RDIMMs, 128GB ECC UDIMMs
- Memory Expansion: 24 Sockets Total , 12 Sockets (3 Banks of 4)
- CPU: Intel Xeon E5-2600 v1/v2 series
- Chipset: Intel C602
- Bus Architecture: PCI Express; PCI-X; USB
- Mfr System P/N: S2600GZ4
- Memory Comments: DDR3-1600 modules automatically clock down to 1333MHz, 1066MHz, and 800MHz depending on which Intel Xeon model is installed and how many module Banks are populated. Please refer to the system manual for proper installation of DIMMs for Single, Dual, Triple, and Quad Channel configurations. Due to chipset limitations, DDR3 Quad Rank memory is limited to operate at a maximum of 1066Mhz. When two Quad Rank modules are installed per channel, the processor will automatically clock them down to 800MHz. Quad Rank modules are limited to 2 DIMMs Per Channel only. Third bank must remain empty. Maximum configuration is 512GB (16x32GB QR RDIMMs). Mixing x4 and x8 modules is allowed, however not within the same bank. Intel Xeon E5 Series processors support 1.5V DDR3 and 1.35V low-voltage DDR3L memory. If 1.5V and 1.35V DIMMs are mixed, all DIMMs run at 1.5V. Unbuffered ECC UDIMM, Registered RDIMM and Load Reduced LRDIMM memory modules. Modules of different memory types cannot be mixed within the same system. Using Registered ECC RDIMMs: Any configuration up to 512GB can be reached using 2GB, 4GB, 8GB, 16GB and 32GB modules or kits. Using ECC Registered DIMMs: Any configuration up to 128GB can be reached using 2GB, 4GB, and 8GB modules or kits. Using Load Reduced DIMMs: Any configuration up to 768GB can be reached using 32GB modules or kits.
Memory Upgrade for Intel S2600GZ4 Server Board GRIZZLY PASS
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
D3-64WT124SLV-11 | Ventura | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $101.83 | Add to List |
|
HMT84GL7BMR4C-RD | Hynix | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $46.14 | Add to List |
|
M386B4G70DM0-YK0 | Samsung | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $101.83 | Add to List |
|

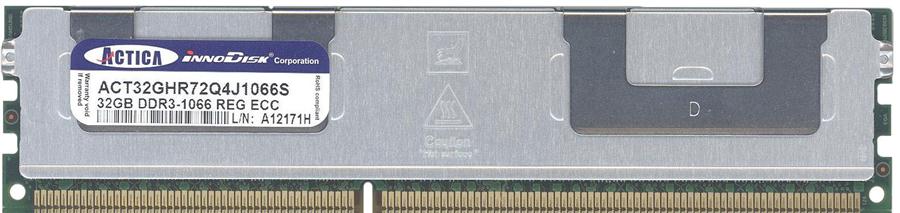

ACT32GHR72Q4J1066S | ACTICA | PC-8500 1066Mhz | 32 GB | Registered ECC Rank 4 | 1.5 | $88.29 | Add to List |
|
M386B4G70BM0-YH9 | Samsung | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $113.09 | Add to List |
Memory Upgrade for Intel S2600GZ4 Server Board GRIZZLY PASS
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-15D331R26017-64G | 3D Memory | PC-12800 1600Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $312.93 | Add to List |
|
3D-15D331R25901-64G | 3D Memory | PC-12800 1600Mhz | 64 GB | Registered ECC Rank 2 | 1.35 | $290.59 | Add to List |
|
3D-15D331R6171-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $288.85 | Add to List |
|
3D-15D331R6146-32G | 3D Memory | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $149.25 | Add to List |
|
3D-15D331R5847-32G | 3D Memory | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $118.60 | Add to List |
Accessories Upgrade for Intel S2600GZ4 Server Board GRIZZLY PASS
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
E5-2697 v2 | LGA 2011 | E5-2697 v2 | 12 | 2.70 GHz | $121.00 | Add to List | |
|
E5-2670 v2 | LGA 2011 | E5-2670 v2 | 10 | 2.50 GHz | $121.00 | Add to List | |
|

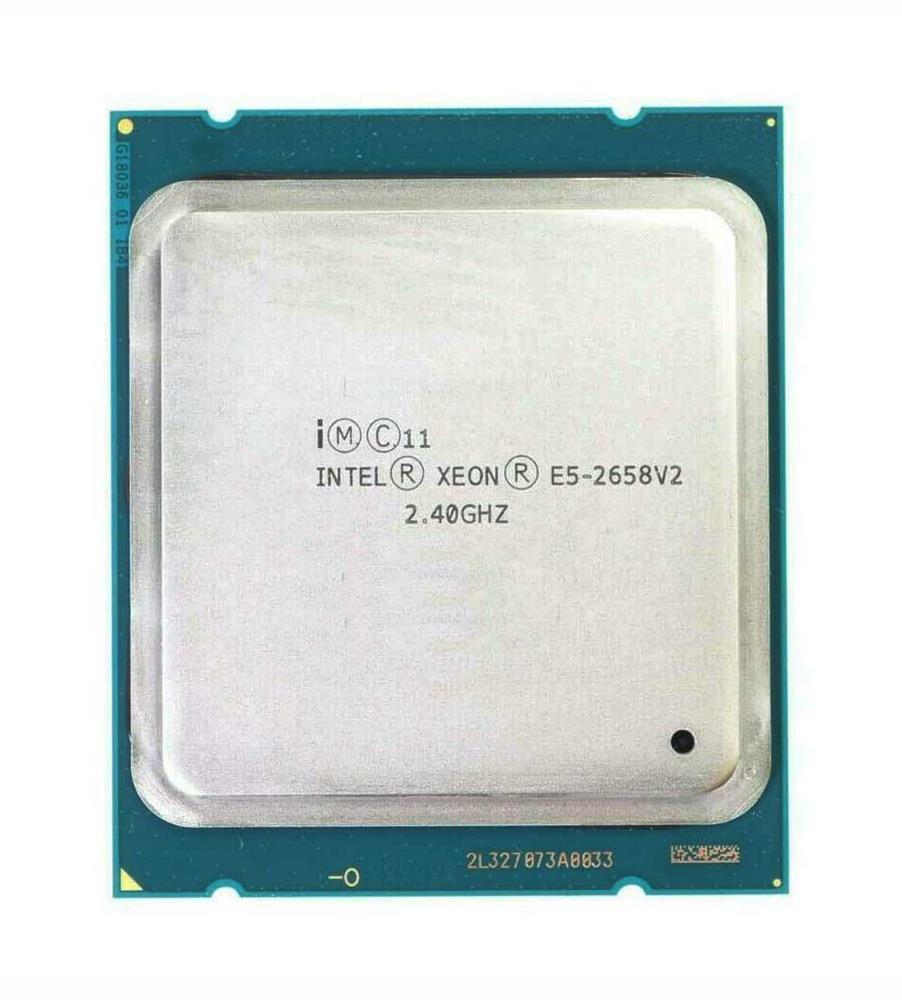

E5-2658 v2 | LGA 2011 | E5-2658 v2 | 10 | 2.40 GHz | $148.81 | Add to List | |
|

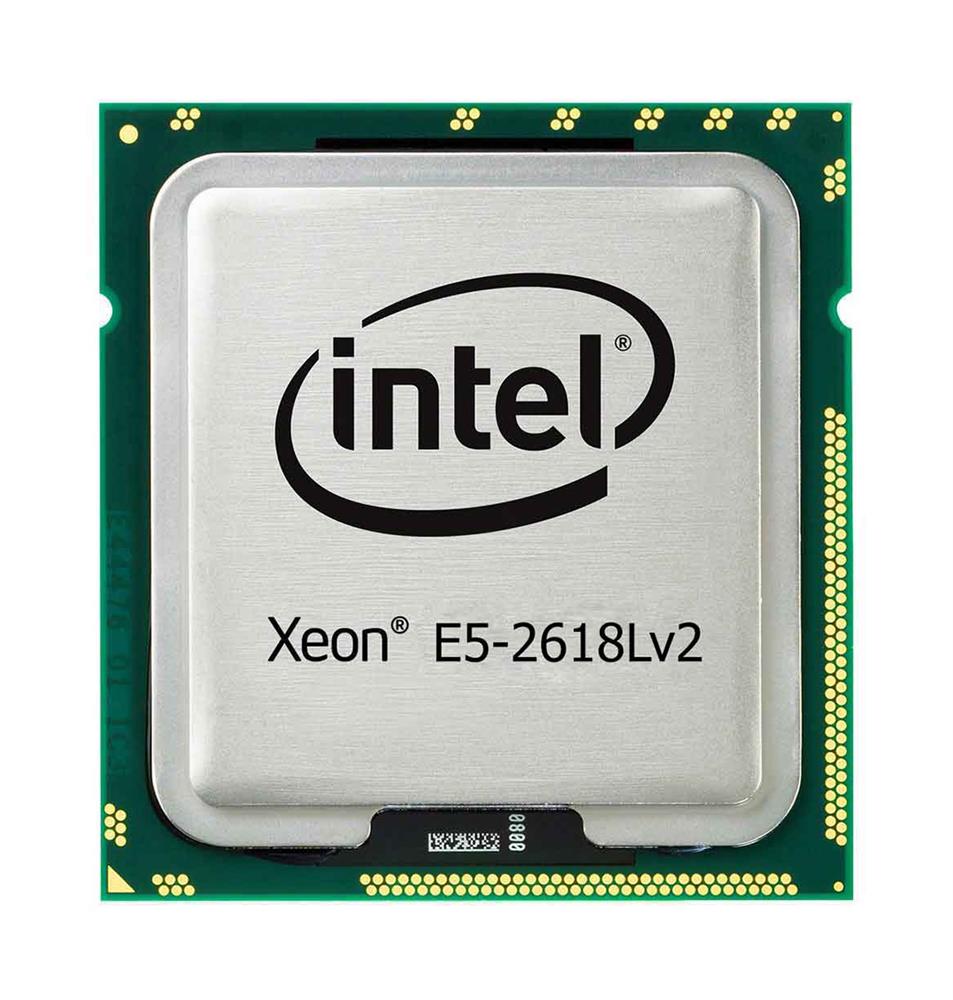

E5-2618L v2 | LGA2011 | E5-2618L v2 | 6 | 2.00 GHz | $128.05 | Add to List | |
|

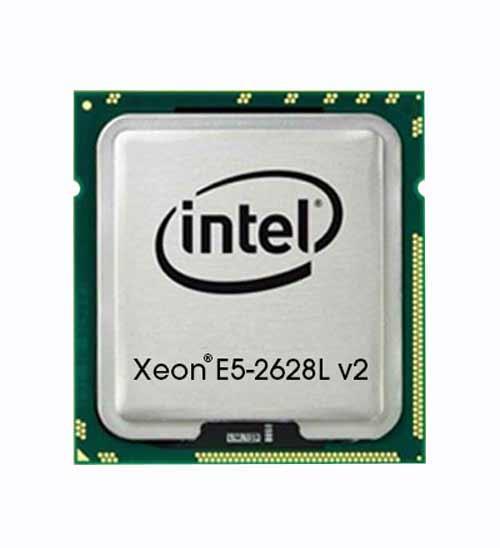

E5-2628L v2 | LGA 2011 | E5-2628L v2 | 8 | 1.90 GHz | $121.00 | Add to List |
Network & Accessories
Network Adapters
-
Add to List

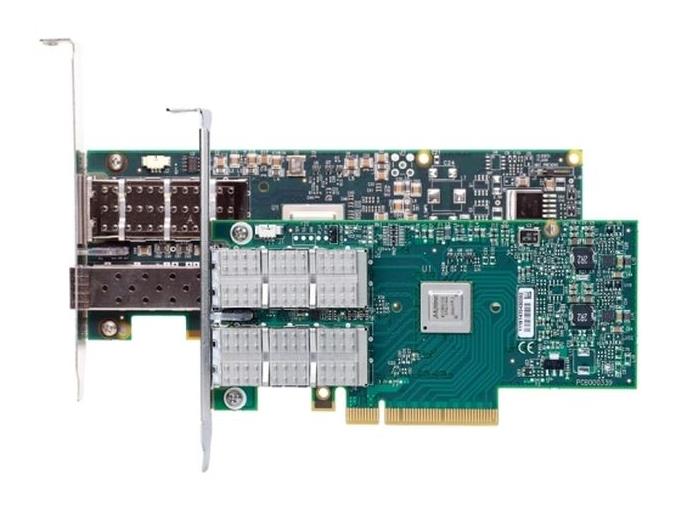

MCX354A-FCAT Mellanox ConnectX-3 Dual-Ports 56Gbps QSFP+ 10 Gigabit Ethernet PCI Express 3.0 x8 Network Adapter with VPI$198.31 -
Add to List

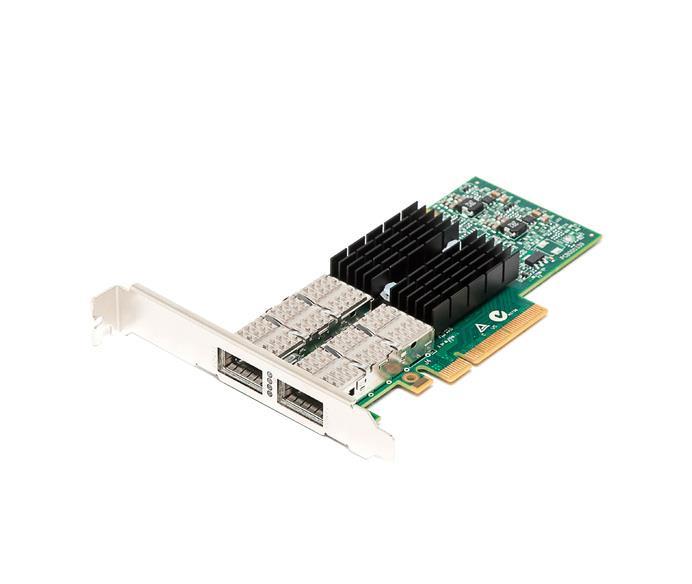

MCX354A-QCAT Mellanox ConnectX-3 Dual-Ports 56Gbps QSFP+ 10 Gigabit Ethernet PCI Express 3.0 x8 Network Adapter with VPI$152.86 -
Add to List
MHGH29B-XTR Mellanox ConnectX 2 VPI Dual-Ports 20Gbps PCI Express 2.0 x8 InfiniBand Host Channel Network Adapter (HCA)$62.06 -
Add to List

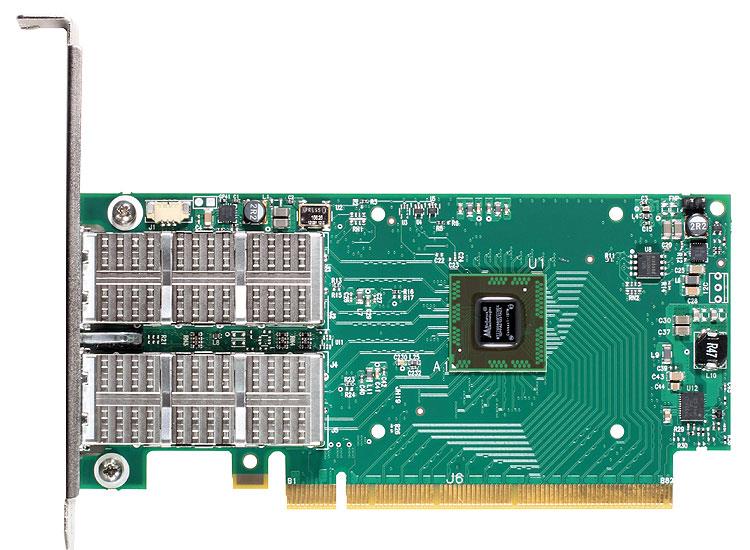

MCX354A-QCBT Mellanox ConnectX-3 Dual-Ports 56Gbps QSFP+ 10 Gigabit Ethernet PCI Express 3.0 x8 Network Adapter with VPI$71.36 -
Add to List
MCX353A-QCBT Mellanox ConnectX-3 QDR Single-Port QSFP 40Gbps Gigabit Ethernet PCI Express 3.0 x8 Network Adapter$78.49
Power Supplies / Power Protection
Power Supplies
-
Add to List

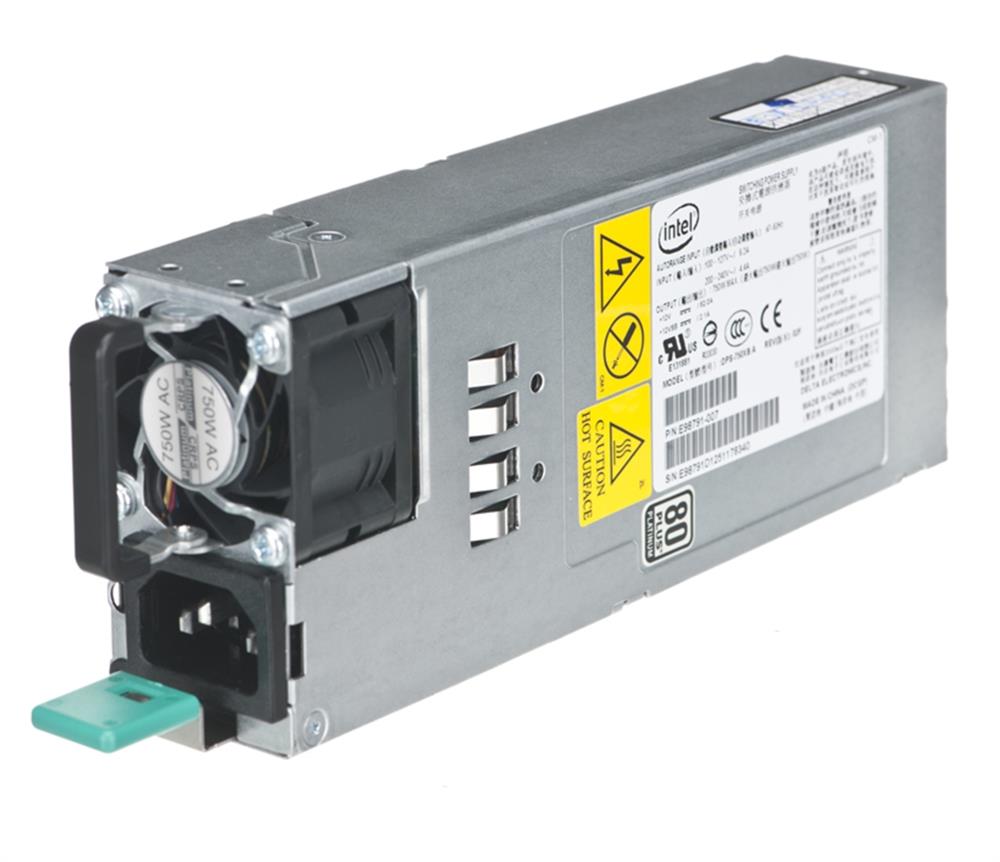

FXX750PCRPS Intel 750-Watts High Efficiency Platinum Redundant Power Supply$167.78
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
MZ7LM3T8HCJM-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,207.15 | Add to List |
|
MZ7LM3T8HMLP-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,207.15 | Add to List |
|
MTFDDAK1T9TCB-1AR1ZABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
|
SDLF1CRR-019T-1HA2 | SanDisk | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Multi-level Cell (MLC) | $833.29 | Add to List |
|
MZ7LM1T9HMJP-00005 | Samsung | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Triple Level Cell (TLC) | $951.87 | Add to List |
Storage
Controllers
-
Add to List

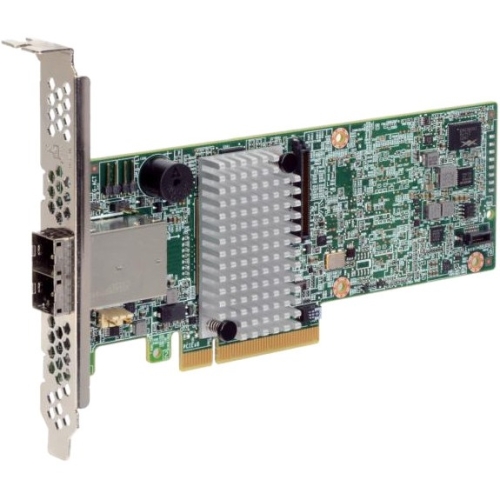

RS3SC008 Intel 1GB Cache 8-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$92.90 -
Add to List

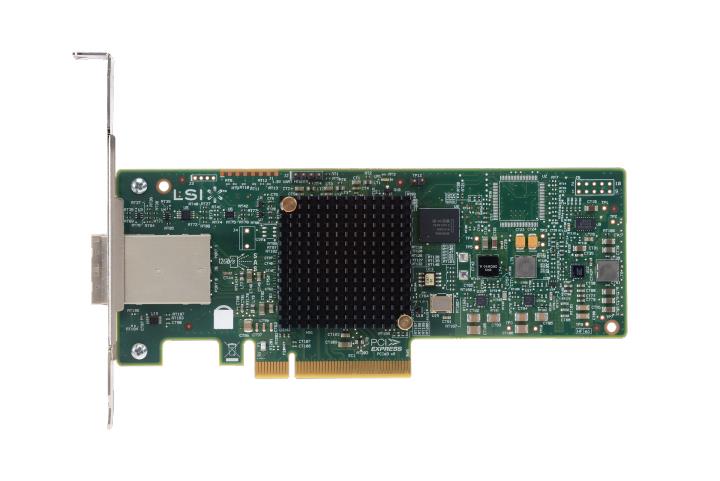

RS3GC008 Intel 8-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile MD2 RAID 0/1/1E/10/JBOD Controller Card$139.88 -
Add to List
RS3DC040 Intel 4-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60/JBOD Controller Card$127.99 -
Add to List
RS3WC080 Intel 8-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile MD2 RAID 0/1/5/10/50/JBOD Controller Card$225.51 -
Add to List

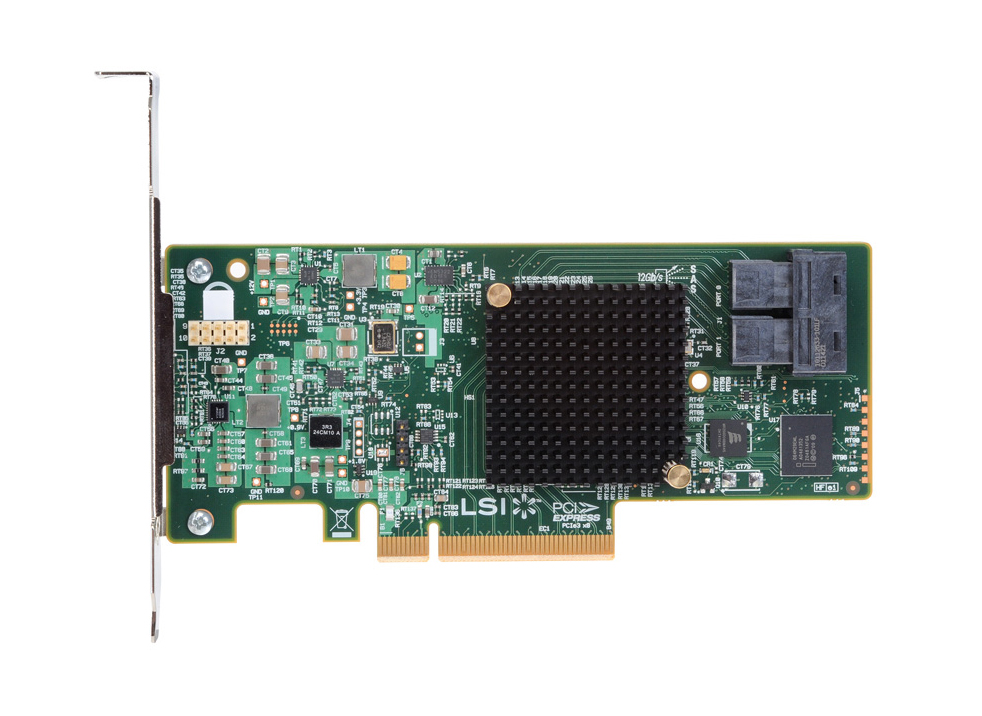

RS3UC080 Intel 8-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile MD2 RAID 0/1/1E/10/JBOD Controller Card$152.04
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0016 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
ST8000NE0001 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $434.06 | Add to List |
|
ST6000VN0001 | Seagate | SATA 6.0 Gbps | 6 TB | 3.5-inch | 128 MB | 7200 RPM | $251.22 | Add to List |
|
ST5000NM0024 | Seagate | SATA 6.0 Gbps | 5 TB | 3.5-inch | 128 MB | 7200 RPM | $233.02 | Add to List |
|
ST4000VN0001 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $296.82 | Add to List |
