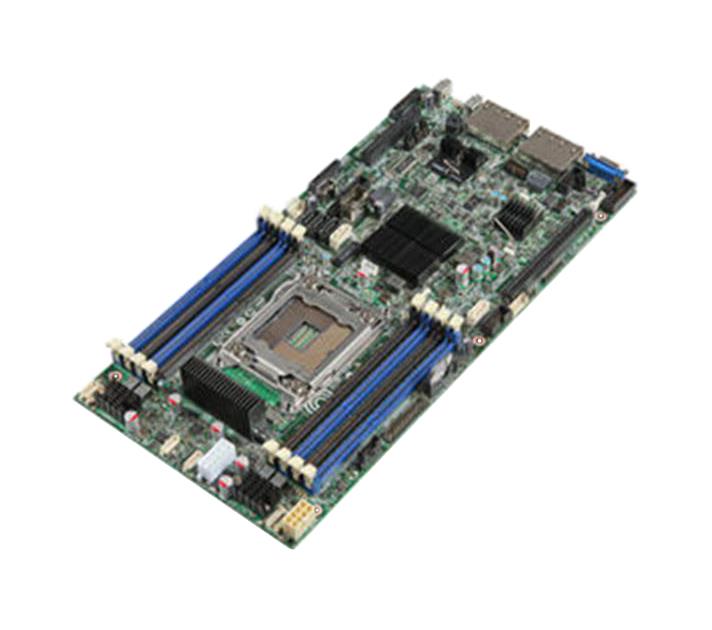

Intel S1600JP4 Server Board
- Standard Memory: 0GB (Removable)
- Maximum Memory: 256GB
- Memory Expansion: 8 Sockets (2 Banks of 4)
- CPU: Intel Xeon E5-1600 v1/v2 Series, Intel Xeon E5-2600 v1/v2 Series
- Chipset: Intel C602
- Bus Architecture: PCI Express; PCI-X; USB
- Mfr System P/N: JACKSON PASS; S1600JP2; S1600JP4
- Memory Comments: DDR3-1600 modules automatically clock down to 1333MHz and 1066MHz depending on which Intel Xeon model is installed and how many module Banks are populated. Please refer to the system manual for proper installation of DIMMs for Single, Dual, and Triple Channel configurations. DDR3 LRDIMMs and Quad Rank RDIMMs are NOT supported with this motherboard. Mixing x4 and x8 modules is allowed, however not within the same bank. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Intel Xeon E5 Series processors support 1.5V DDR3 and 1.35V low-voltage DDR3L memory. If 1.5V and 1.35V DIMMs are mixed, all DIMMs run at 1.5V. Any configuration up to 256GB can be reached using 2GB, 4GB, 8GB, 16GB and 32GB modules.

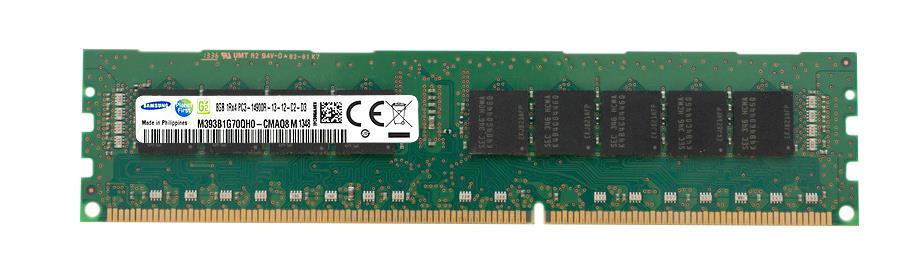

Memory Upgrade for Intel S1600JP4 Server Board
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
D3-64WT124SLV-11 | Ventura | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $94.06 | Add to List |
|
HMT84GL7BMR4C-RD | Hynix | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $96.87 | Add to List |
|
HMT84GL7AMR4A-PB | Hynix | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $104.51 | Add to List |
|
M386B4G70BM0-YH9 | Samsung | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $104.51 | Add to List |
|
M393B4G70BM0-YH9 | Samsung | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $173.61 | Add to List |
Memory Upgrade for Intel S1600JP4 Server Board
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-15D311R20859-64G | 3D Memory | PC-14900 1866Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $314.07 | Add to List |
|
3D-15D311R10894-32G | 3D Memory | PC-14900 1866Mhz | 32 GB | Registered ECC Rank 1 | 1.5 | $137.68 | Add to List |
|
3D-15D311R0828-32G | 3D Memory | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $118.23 | Add to List |
|
3D-15D311R0726-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $288.53 | Add to List |
|
|
3D-15D311R20843-16G | 3D Memory | PC-14900 1866Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $78.52 | Add to List |
Accessories Upgrade for Intel S1600JP4 Server Board
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
E5-1680 v2 | LGA 2011 | E5-1680 v2 | 8 | 3.00 GHz | $200.91 | Add to List | |
|
E5-1607 v2 | LGA 2011 | E5-1607v2 | 4 | 3.00 GHz | $121.00 | Add to List | |
|
E5-2697 v2 | LGA 2011 | E5-2697 v2 | 12 | 2.70 GHz | $121.00 | Add to List | |
|
E5-2670 v2 | LGA 2011 | E5-2670 v2 | 10 | 2.50 GHz | $121.00 | Add to List | |
|
E5-2630L v2 | LGA 2011 | E5-2630L v2 | 6 | 2.40 GHz | $134.90 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
MCX354A-FCAT Mellanox ConnectX-3 Dual-Ports 56Gbps QSFP+ 10 Gigabit Ethernet PCI Express 3.0 x8 Network Adapter with VPI$198.31 -
Add to List
MCX354A-QCAT Mellanox ConnectX-3 Dual-Ports 56Gbps QSFP+ 10 Gigabit Ethernet PCI Express 3.0 x8 Network Adapter with VPI$152.86 -
Add to List
MCX354A-QCBT Mellanox ConnectX-3 Dual-Ports 56Gbps QSFP+ 10 Gigabit Ethernet PCI Express 3.0 x8 Network Adapter with VPI$71.36 -
Add to List
MCX353A-QCBT Mellanox ConnectX-3 QDR Single-Port QSFP 40Gbps Gigabit Ethernet PCI Express 3.0 x8 Network Adapter$78.49 -
Add to List

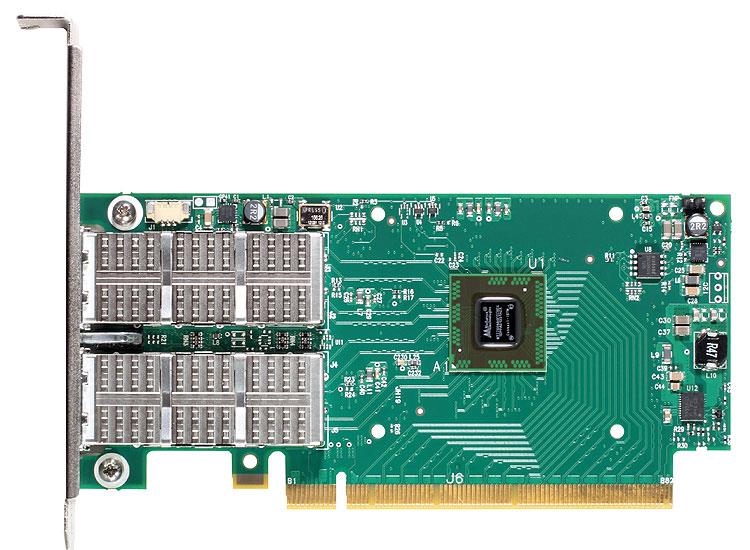

MCX314A-BCBT Mellanox ConnectX-3 EN Dual-Ports 56Gbps QSFP PCI Express 3.0 x8 Network Adapter$122.86
Power Supplies / Power Protection
Power Supplies
-
Add to List
FXX750PCRPS Intel 750-Watts High Efficiency Platinum Redundant Power Supply$167.78
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
MZ7LM3T8HCJM-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,448.32 | Add to List |
|
MZ7LM3T8HMLP-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,448.32 | Add to List |
|
MTFDDAK1T9TCB-1AR1ZABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
|
SDLF1CRR-019T-1HA2 | SanDisk | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Multi-level Cell (MLC) | $1,183.99 | Add to List |
|
MZ7LM1T9HMJP-00005 | Samsung | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Triple Level Cell (TLC) | $1,208.35 | Add to List |
Storage
Controllers
-
Add to List
RMS25PB040 Intel 1GB Cache 4-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$133.85 -
Add to List
RMS25KB080 Intel 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/1E/10 Controller Card$32.11 -
Add to List
RMS25PB080 Intel 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$127.99 -
Add to List
RS25SB008 Intel 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card$97.77 -
Add to List
RMS25KB040 Intel 4-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/1E/10 Controller Card$86.65
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0016 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $395.44 | Add to List |
|
ST8000NE0001 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $434.06 | Add to List |
|
ST6000VN0001 | Seagate | SATA 6.0 Gbps | 6 TB | 3.5-inch | 128 MB | 7200 RPM | $389.49 | Add to List |
|
ST5000NM0024 | Seagate | SATA 6.0 Gbps | 5 TB | 3.5-inch | 128 MB | 7200 RPM | $245.80 | Add to List |
|
ST4000VN0001 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $293.58 | Add to List |
