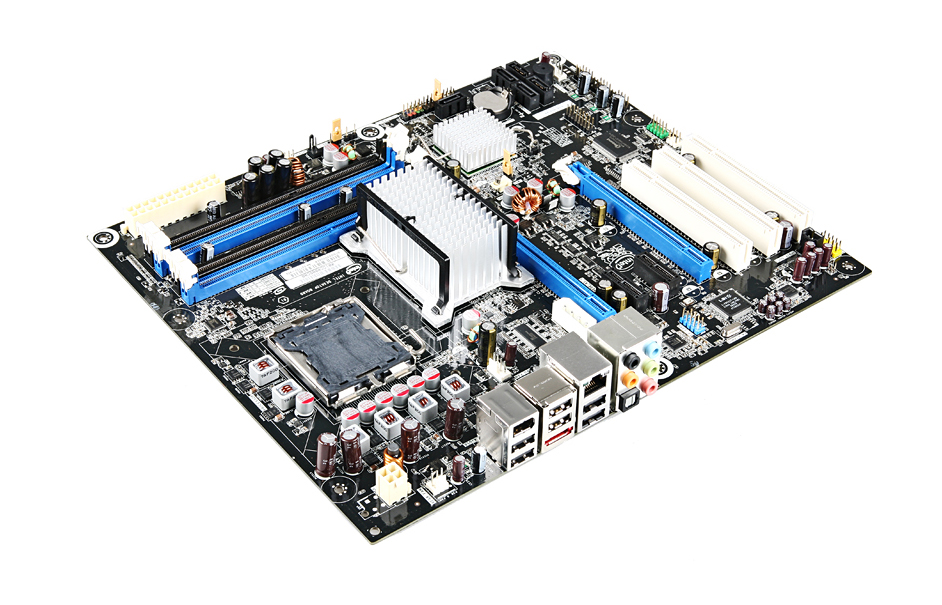

DP45SG Intel Socket LGA 775 Intel P45 Express + ICH10R Chipset Pentium/ Celeron/ Core 2 Duo/ Core 2 Extreme/ Dual-Core Xeon 3000/ Core 2 Quad/ Celeron 400/ Quad-Core Xeon 3200/ Dual-Core Xeon 3100/ Quad-Core Xeon 3300 Processors Support DDR3 4x DIMM 6x SATA 3.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

DP45SG

Global Part Number (GPN):

1448178799

$144.50 $321.10 You Save: $176.60 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of DP45SG? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for DP45SG

Model
Manufacturer	Intel
Manufacturer Part #	DP45SG
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA775
Supported CPU(s)	Intel Celeron Processor Intel Core2 Duo Desktop Processor Intel Core2 Extreme Processor Intel Core2 Quad Processor Intel Dual-Core Xeon Processor Intel Pentium Dual-Core Processor Intel Quad-Core Xeon Processor
FSB Speed (Maximum)	1333 MHz
Supported CPU Technologies	Dual Core Enhanced Intel Speedstep Technology Execute Disable Bit Idle States Intel 64 Architecture Intel Virtualization Technology Quad Core Thermal Monitoring Technologies
Chipset	Intel P45 Express
South Bridge Chipset	Intel ICH10R
Number of Memory Slot(s)	4
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-6400 (DDR3-800) PC3-8500 (DDR3-1066)
Maximum Installed Memory	8 GB
Expansion Slots	PCI PCI Express x1 PCI Express x16
Storage Controller	Serial-ATA 3.0 Gbps
Audio Controller	On-board
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out FireWire (IEEE 1394) Microphone RJ-45 (Ethernet) S/PDIF - TOSLINK USB 2.0
Other Information
Features	Memory: Dual Channel Architecture BIOS: ACPI support SMBIOS support Sleep / Wake Up: Mouse Wake Up Wake on USB Port Keyboard Wake Up Wake on PCI Device Suspend to RAM (STR) Hardware: System Voltage CPU Core Voltage CPU Fan Tachometer Chassis Temperature CPU Core Temperature Chassis Fan Tachometer Chassis Intrusion Detection

Request for Quote: DP45SG

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no DP45SG. Or Request a Quote below:

Quantity

How soon you need it?

General Information

DP45SG Intel Socket LGA 775 Intel P45 Express + ICH10R Chipset Pentium/ Celeron/ Core 2 Duo/ Core 2 Extreme/ Dual-Core Xeon 3000/ Core 2 Quad/ Celeron 400/ Quad-Core Xeon 3200/ Dual-Core Xeon 3100/ Quad-Core Xeon 3300 Processors Support DDR3 4x DIMM 6x SATA 3.0Gb/s ATX Motherboard (Refurbished)
