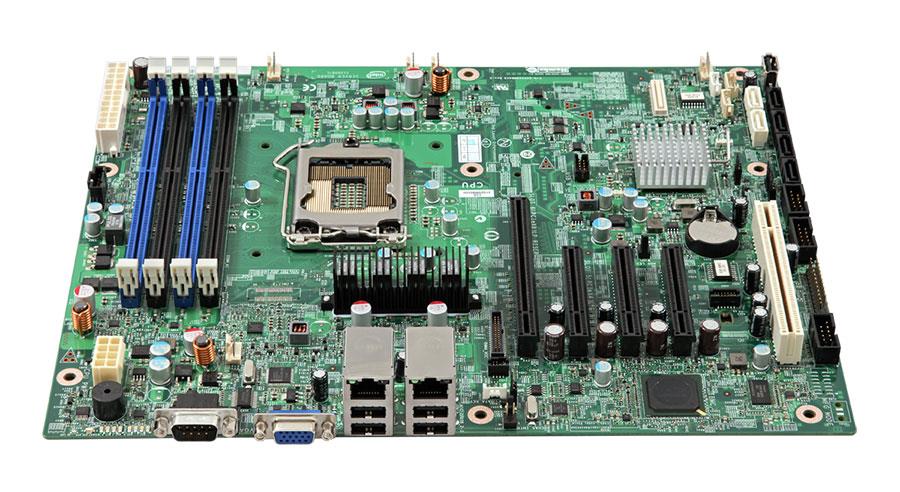

DBS1200BTLR Intel S1200BTL Socket LGA 1155 Intel C204 Chipset Intel Xeon E3-1200 Series Processors Support DDR3 4xDIMM 4x SATA 3.0Gb/s ATX Server Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
DBS1200BTLR
Global Part Number (GPN):
1466398891
Looking for a large quantity of DBS1200BTLR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for DBS1200BTLR
| General Information | |
| Manufacturer Part Number | DBS1200BTLR |
| Brand Name | Intel |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H2 LGA-1155 |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor |
DIMM UDIMM |
| Maximum Memory | 32 GB |
| Memory Speed Supported |
1.60 GHz 1.33 GHz 1.07 GHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/300 Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 1+0 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | ServerEngines Pilot II |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x4 Slots | 3 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 5 |
| Physical Characteristics | |
| Form Factor | ATX |
| Height | 5.2" |
| Width | 12" |
| Depth | 9.6" |
| Weight (Approximate) | 2.70 lb |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR |
