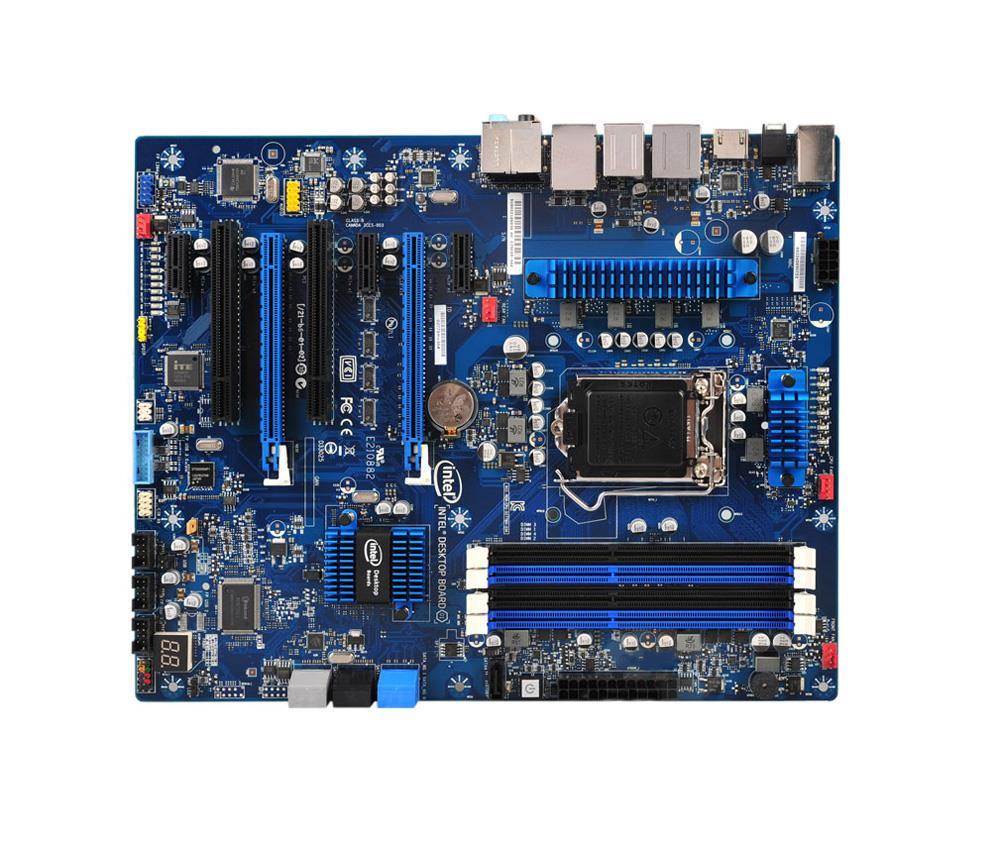

BOXDZ77BH55K Intel Desktop Motherboard DZ77BH-55K iZ77 Express Chipset Socket H2 LGA1155 1 Pack ATX 1 x Processor Support (Refurbished)
Mfg Part No:
Global Part Number (GPN):
BOXDZ77BH55K
Global Part Number (GPN):
1465222201
Looking for a large quantity of BOXDZ77BH55K? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for BOXDZ77BH55K
| General Information | |
| Manufacturer Part Number | BOXDZ77BH55K |
| Brand Name | Intel |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H2 LGA-1155 |
| Processor Supported |
Core i5 Core i7 Core i3 Xeon Pentium Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Maximum Memory | 32 GB |
| Memory Speed Supported |
1.60 GHz 1.33 GHz 1.07 GHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/300 Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 1+0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | Intel |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 7 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Number of eSATA Ports | 1 |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 7 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 3.0 Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 5.0 |
