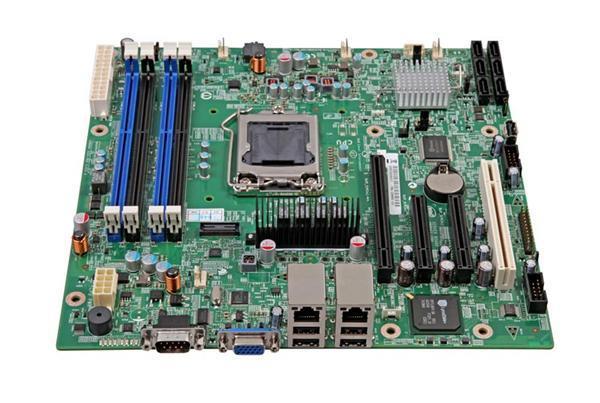

DBS1200BTSR-1PK Intel S1200BTSR Server Motherboard - Intel C202 Chipset - Socket H2 LGA-1155 - Micro ATX - 32 GB DDR3 SDRAM Maximum RAM - UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA (Refurbished)
Mfg Part No:
Global Part Number (GPN):
DBS1200BTSR-1PK
Global Part Number (GPN):
1499232347
Looking for a large quantity of DBS1200BTSR-1PK? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for DBS1200BTSR-1PK
| General Information | |
| Manufacturer Part Number | DBS1200BTSR-1PK |
| Brand Name | Intel |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C202 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H2 LGA-1155 |
| Processor Supported |
Core i3 Xeon |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Maximum Memory | 32 GB |
| Memory Speed Supported |
1.60 GHz 1.33 GHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 10 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | Intel |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
