HPE Synergy 480 Gen10 (G10) CTO w/o Drives (871941-B21)
- Standard Memory: 8GB, 16GB, 32GB (Removable)
- Maximum Memory: 3TB ECC LRDIMMs, 1.5TB Reg ECC RDIMMs
- Memory Expansion: 12 Sockets per CPU, 24 Sockets using two CPU
- CPU: Intel Xeon Scalable Processors
- No of Processors: 2
- CPU Socket Type: LGA 3647
- Chipset: Intel C621
- Bus Architecture: SSD SATA 2.5-inch 9.5mm; SSD SATA 3.5-inch; USB 2.0/3.x Type-A
- Mfr System P/N: 871941-B21
- Form Factor: Blade Server
- Memory Comments: Memory will clock down to run at optimal speeds depending on processor model installed. See latest ProLiant QuickSpecs for processor models and supported memory speeds. This system supports Registered ECC (RDIMM) or Load Reduced (LRDIMM) memory. Mixing RDIMM and LRDIMM is not supported within this system. If only one processor is installed, only 12 DIMM slots are available. When populating with two processors 24 DIMM slots are available. White DIMM slots designate the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
Memory Upgrade for HPE Synergy 480 Gen10 (G10) CTO w/o Drives (871941-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|

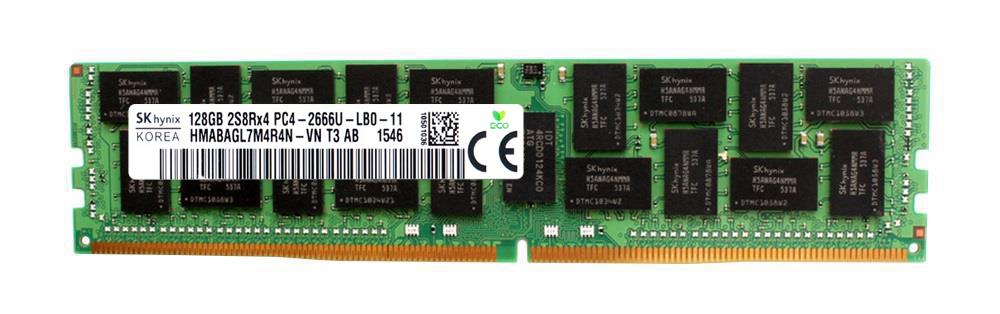

815102-B21 | HPE | PC-21300 2666MHz | 128 GB | Load Reduced ECC Rank 8 | 1.2 | $1,795.00 | Add to List |
|
815101-B21 | HPE | PC-21300 2666MHz | 64 GB | Load Reduced ECC Rank 4 | 1.2 | $370.38 | Add to List |
|
815100-B21 | HPE | PC-21300 2666MHz | 32 GB | Registered ECC Rank 2 | 1.2 | $252.39 | Add to List |
|
845264-B21 | HPE | PC-21300 2666MHz | 16 GB | Registered ECC Rank 1 | 1.2 | $112.93 | Add to List |
|
835955-B21 | HPE | PC-21300 2666MHz | 16 GB | Registered ECC Rank 2 | 1.2 | $152.24 | Add to List |
Memory Upgrade for HPE Synergy 480 Gen10 (G10) CTO w/o Drives (871941-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-1572R1514-128G | 3D Memory | PC-23400 2933MHz | 128 GB | Load Reduced ECC Rank 8 | 1.2 | $1,453.45 | Add to List |
|
3D-1534R5920-128G | 3D Memory | PC-21300 2666MHz | 128 GB | Load Reduced ECC Rank 8 | 1.2 | $1,550.99 | Add to List |
|
|
3D-1572R1525-64G | 3D Memory | PC-23400 2933MHz | 64 GB | Load Reduced ECC Rank 4 | 1.2 | $602.36 | Add to List |
|
|
3D-1572R21519-64G | 3D Memory | PC-23400 2933MHz | 64 GB | Registered ECC Rank 2 | 1.2 | $1,079.58 | Add to List |
|
3D-1534R5915-64G | 3D Memory | PC-21300 2666MHz | 64 GB | Load Reduced ECC Rank 4 | 1.2 | $517.18 | Add to List |
Accessories Upgrade for HPE Synergy 480 Gen10 (G10) CTO w/o Drives (871941-B21)
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
872119-B21 | LGA 3647 | 8180 | 28 | 2.50 GHz | $291.80 | Add to List | |
|
872116-B21 | LGA 3647 | 6140M | 18 | 2.30 GHz | $121.00 | Add to List | |
|

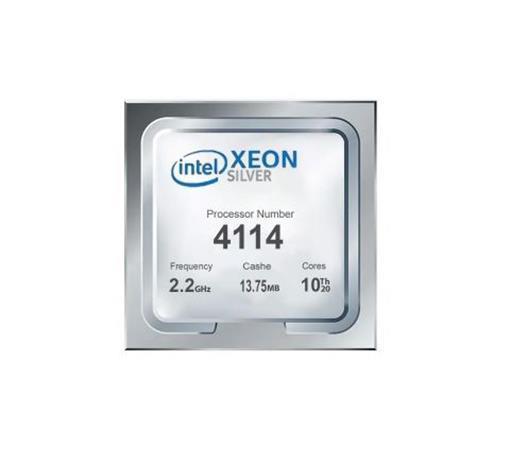

872112-B21 | LGA 3647 | 4114 | 10 | 2.20 GHz | $121.00 | Add to List | |
|

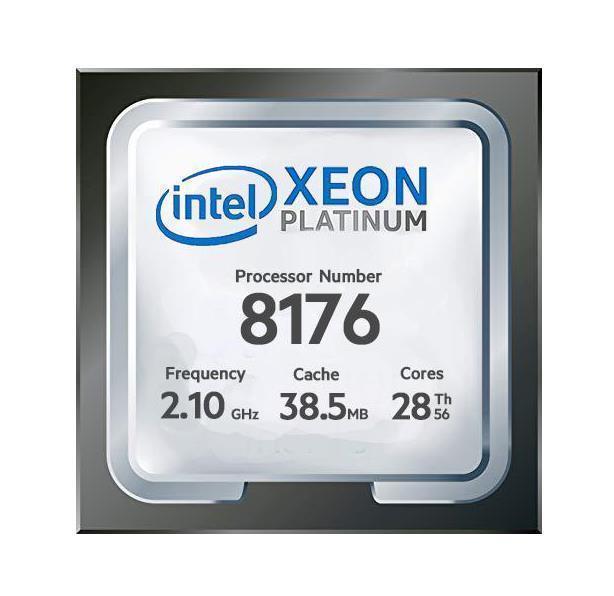

872120-B21 | LGA 3647 | 8176 | 28 | 2.10 GHz | $121.00 | Add to List | |
|

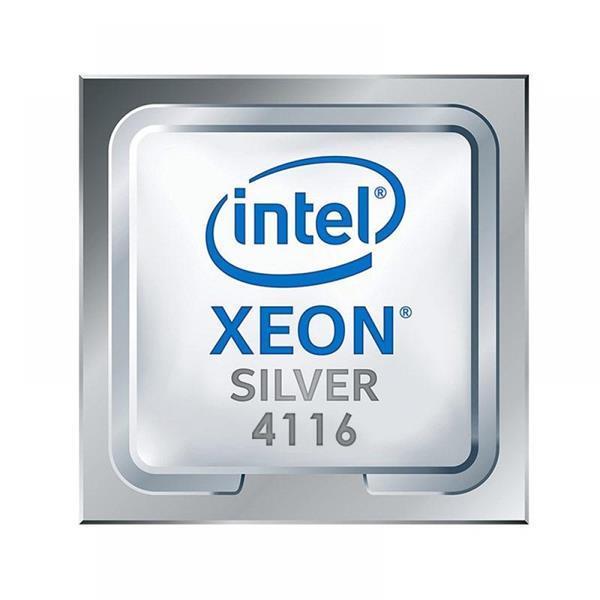

872114-L21 | LGA 3647 | 4116 | 12 | 2.10 GHz | $134.90 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
867322-B21 HPE Synergy 6810C 50Gbps Gigabit Ethernet PCI Express 3.0 x16 Mezzanine Network Adapter$197.56 -
Add to List
777430-B21 HPE Synergy 3820C Dual-Ports 20Gbps PCI Express 3.0 Converged Network Adapter$47.88 -
Add to List
794538-B21 HPE Synergy 2820C Dual-Ports 10Gbps PCI Express 3.0 Converged Network Adapter$38.35 -
Add to List
777454-B21 HPE Synergy 3530C Dual-Ports 16Gbps Fibre Channel Host Bus Adapter$801.99 -
Add to List
777452-B21 HPE Synergy 3830C 16Gbps Fibre Channel Host Bus Adapter$102.26
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
868830-B21 | HP | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Multi-level Cell (MLC) | $1,241.16 | Add to List |
|
764894-B21 | HP | PCI Express 3.0 x4 | 2 TB | 2.5-inch | Multi-level Cell (MLC) | $251.93 | Add to List |
|

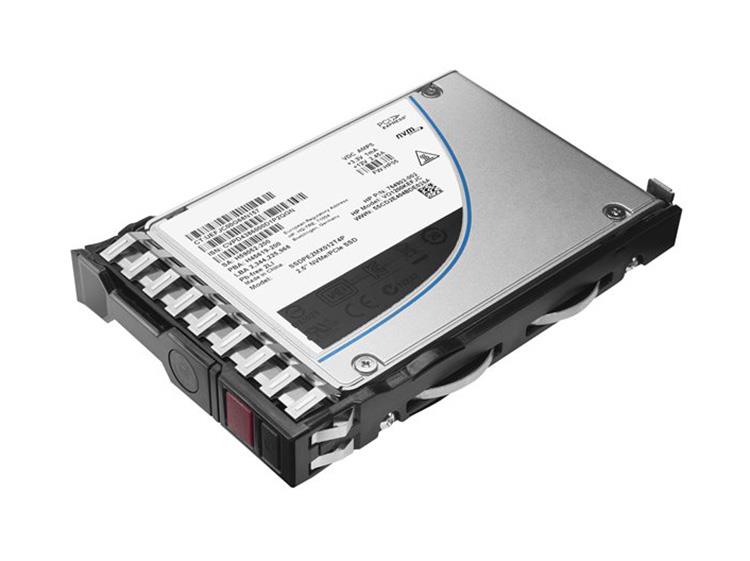

872352-B21 | HP | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | $833.29 | Add to List | |
|
868826-B21 | HP | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Multi-level Cell (MLC) | $833.29 | Add to List |
|

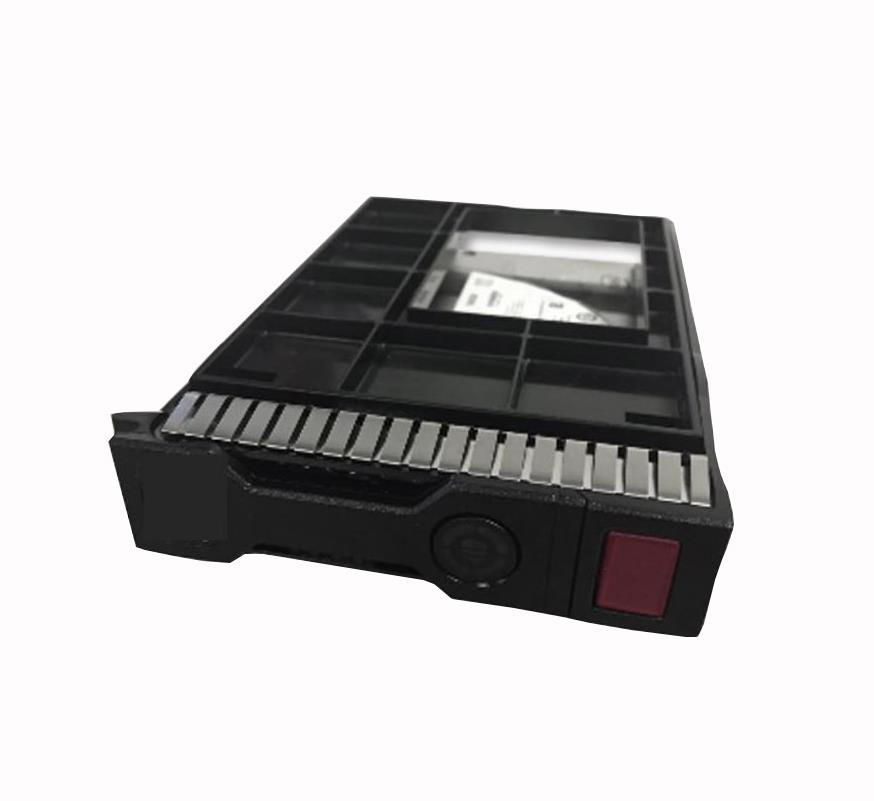

872363-B21 | HP | SATA 6.0 Gbps | 1.6 TB | 2.5-inch | $418.59 | Add to List |
Storage
Controllers
-
Add to List
823852-B21 HPE Smart Array E208i-c 8-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 RAID 0/1/5/10 Controller Card$328.81 -
Add to List
804428-B21 HPE Smart Array P416ie-m 2GB Cache 16-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Mezzanine RAID 0/1/5/6/10/50/60/1ADM/10ADM Controller Card$198.46 -
Add to List

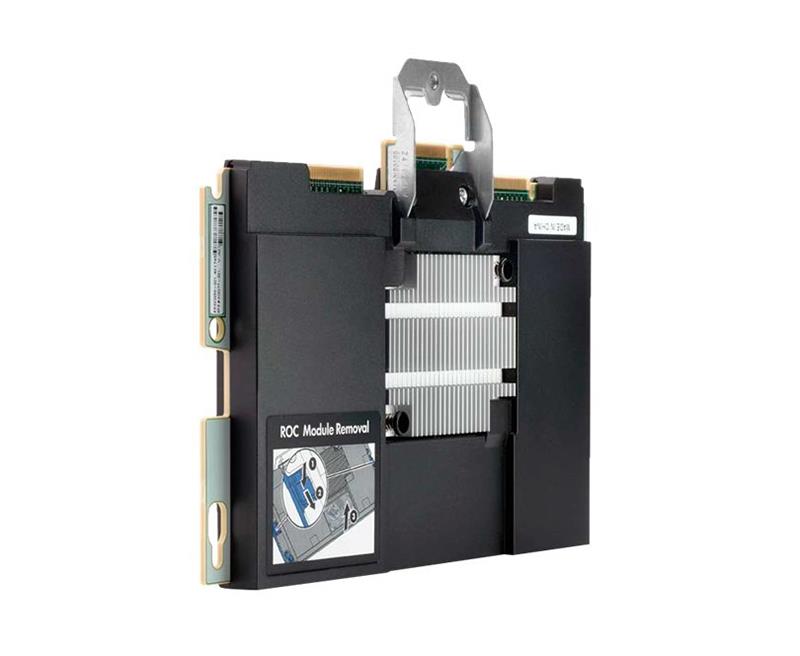

804424-B21 HPE Smart Array P204i-c 1GB Cache 4-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Type-c RAID 0/1/5/6/10/1ADM Controller Card$278.76
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
765455-B21 | HP | SATA 6.0 Gbps | 2 TB | 2.5-inch | 7200 RPM | $284.58 | Add to List | |
|
765466-B21 | HP | SAS 12.0 Gbps | 2 TB | 2.5-inch | 7200 RPM | $133.10 | Add to List | |
|
872481-B21 | HP | SAS 12.0 Gbps | 1.8 TB | 2.5-inch | 10000 RPM | $253.71 | Add to List | |
|
791034-B21 | HP | SAS 12.0 Gbps | 1.8 TB | 2.5-inch | 10000 RPM | $253.71 | Add to List | |
|
872479-B21 | HP | SAS 12.0 Gbps | 1.2 TB | 2.5-inch | 10000 RPM | $192.13 | Add to List |
