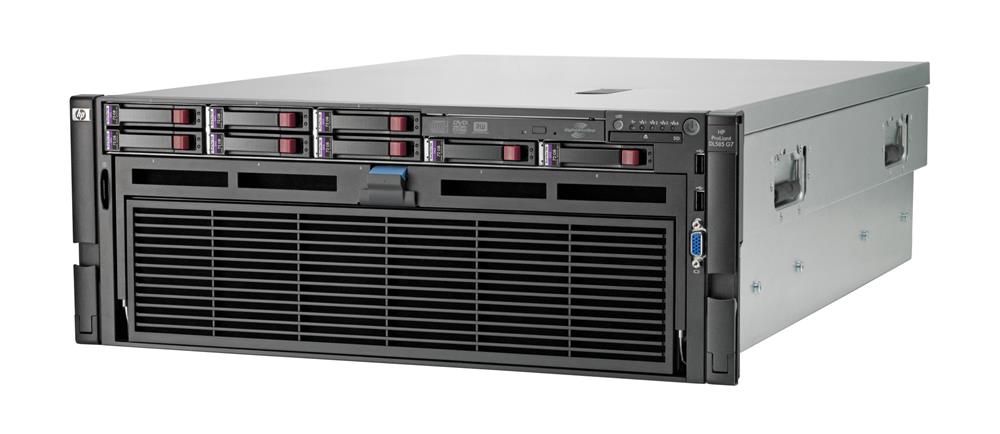

HP ProLiant DL585 G7 CTO (590480-B21)
- Standard Memory: 32GB or 64GB (Removable)
- Maximum Memory: 1.50TB ECC LRDIMMs and 1TB ECC Reg RDIMMs
- Memory Expansion: 12 Sockets (3 Banks of 4) per CPU 48 Sockets Total
- CPU: AMD Opteron
- Chipset: AMD SR5690
- Bus Architecture: PCI Express; SSD SATA 2.5-inch
- Mfr System P/N: 590480-B21
- Memory Comments: Maximum 1TB configuration is achieved using four (4) 32GB quad-rank RDIMMs and eight (8) 16GB dual-rank RDIMMs in all four installed processors. Maximum 1.5TB configuration is achieved using forty-eight (48) 32GB LRDIMMs. Registered and Load Reduced modules CANNOT be mixed within the same system. Quad-rank RDIMMs must be installed only in memory sockets 2, 5, 8 and 11 of each installed processor. Advanced ECC function is not available if x4 and x8 memory modules are mixed in memory channels (A and B), (C and D), or both, but standard ECC is still available. Advanced ECC is available if x4 and x8 memory modules are mixed in memory channels (A and C), (B and D), or both. 1600MHz memory is only supported in conjunction with Opteron 6200 series or later processors. Installing two memory modules at a time per processor privides for addition performance, installing four at a time per processor provides for better performance, and installing equal amounts of memory for all processors provides for best performance. 4GB DDR3-1333 Reg ECC modules come in two versions: x4 and x8 DRAM. The two parts may be installed in the same system but not within the same memory bank. Use like modules for dual and quad channel operation.
Memory Upgrade for HP ProLiant DL585 G7 CTO (590480-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
708643-B21 | HP | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $79.49 | Add to List |
|
647903-B21 | HP | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $144.19 | Add to List |
|
708641-B21 | HP | PC-14900 1866Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $81.37 | Add to List |
|
713985-B21 | HP | PC-12800 1600Mhz | 16 GB | Registered ECC Rank 2 | 1.35 | $62.24 | Add to List |
|
672631-B21 | HP | PC-12800 1600Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $74.83 | Add to List |
Memory Upgrade for HP ProLiant DL585 G7 CTO (590480-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-15D321R14497-32G | 3D Memory | PC-12800 1600Mhz | 32 GB | Registered ECC Rank 1 | 1.5 | $146.37 | Add to List |
|
3D-15D321R4479-32G | 3D Memory | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $149.25 | Add to List |
|
3D-15D321R24475-16G | 3D Memory | PC-12800 1600Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $78.23 | Add to List |
|
3D-15D321R4472-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 4 | 1.35 | $72.65 | Add to List |
|
3D-15D321R24470-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.35 | $72.65 | Add to List |
Accessories Upgrade for HP ProLiant DL585 G7 CTO (590480-B21)
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
725940-B21 | LGA 2011 | E5-2650 v2 | 8 | 2.60 GHz | $134.90 | Add to List | |
|
725941-B21 | LGA 2011 | E5-2630 v2 | 6 | 2.60 GHz | $134.90 | Add to List | |
|
725942-B21 | LGA 2011 | E5-2609 v2 | 4 | 2.50 GHz | $134.90 | Add to List | |
|
725938-B21 | LGA 2011 | E5-2670 v2 | 10 | 2.50 GHz | $134.90 | Add to List | |
|
725939-B21 | LGA 2011 | E5-2660 v2 | 10 | 2.20 GHz | $134.90 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
700760-B21 HPE FlexFabric Dual-Ports 10Gbps PCI Express 2.1 533FLR-T FIO Network Adapter$71.52 -
Add to List
700759-B21 HP FlexFabric 533GLR-T Dual-Ports 10Gbps Ethernet PCI Express 2.0 x8 Network Adapter$42.58 -
Add to List
700752-B21 HP Flexfabric Dual-Ports SFP+ 10Gbps Gigabit Ethernet PCI Express 2.0 x8 Network Adapter$102.26 -
Add to List
700751-B21 HP Flexfabric Dual-Ports SFP+ 10Gbps Gigabit Ethernet PCI Express 2.0 x8 Network Adapter$108.55 -
Add to List
684219-B21 HP FlexFabric 10Gbps SFP+ Dual-Ports Gigabit Ethernet PCI Express 2.0 Network Adapter$201.67
Power Supplies / Power Protection
Power Supplies
-
Add to List
578322-B21 HP 1200-Watts High Efficiency Hot Swap Redundant Platinum AC Power Supply for ProLiant DL360 DL380 and SL170z G6 Server$140.45
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
730057-B21 | HP | SATA 6.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $392.98 | Add to List |
|
802584-B21 | HP | SAS 12.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $206.57 | Add to List |
|
718192-B21 | HP | SATA 6.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $392.98 | Add to List |
|
690829-B21 | HP | SAS 6.0 Gbps | 800 GB | 2.5-inch | $219.12 | Add to List | |
|
691868-B21 | HP | SATA 6.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $392.98 | Add to List |
Storage
Controllers
-
Add to List
650926-B21 HP H222 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 3.0 x8 HBA Controller Card$176.68 -
Add to List
631674-B21 HP Smart Array P421 2GB Dual Port SAS 6Gbps / SATA 3Gbps PCI Express 3.0 x8 0/1/5/6/10/50/60 RAID Controller Card$198.46 -
Add to List
631673-B21 HP Smart Array P421 1GB Dual Port SAS 6Gbps / SATA 3Gbps PCI Express 3.0 x8 0/1/5/6/10/50/60 RAID Controller Card$288.36 -
Add to List
631667-B21 HP Smart Array P222 512MB Cache Dual Port SAS 6Gbps / SATA 6Gbps 8-Channel PCI Express 3.0 x8 Low Profile 0/1/5/6/10/50/60 RAID Controller Card$28.57 -
Add to List
614988-B21 HP 8-Port SAS 6Gbps / SATA 3Gbps PCI Express 2.0 x8 HBA Controller Card$102.70
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
785415-001 | HP | SAS 12.0 Gbps | 1.2 TB | 2.5-inch | 10000 RPM | $192.13 | Add to List | |
|
693719-001 | HP | SAS 6.0 Gbps | 1.2 TB | 2.5-inch | 64 MB | 10000 RPM | $125.95 | Add to List |
|
626162-001 | HP | SATA 3.0 Gbps | 1 TB | 2.5-inch | 7200 RPM | $120.81 | Add to List | |
|
606020-001 | HP | SAS 6.0 Gbps | 1 TB | 2.5-inch | 7200 RPM | $190.65 | Add to List | |
|

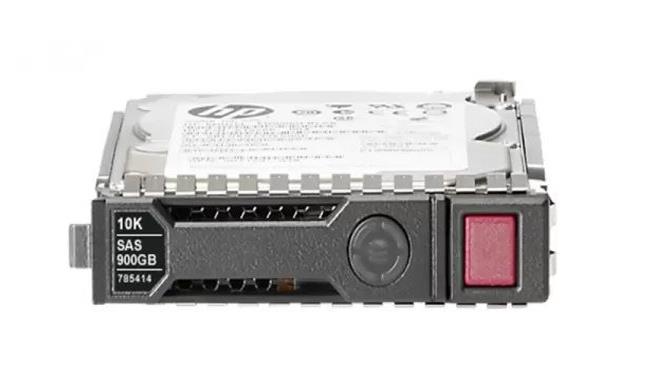

785414-001 | HP | SAS 12.0 Gbps | 900 GB | 2.5-inch | 10000 RPM | $168.04 | Add to List |
