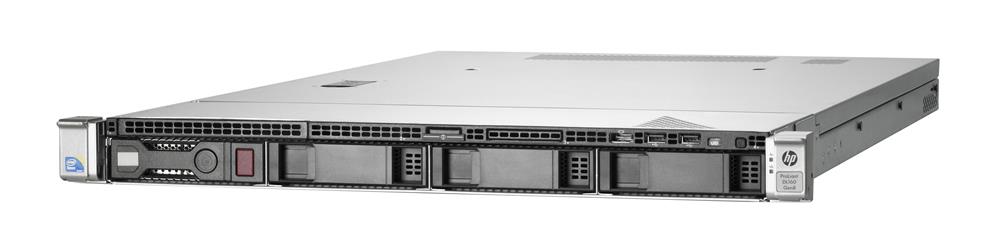

HP ProLiant DL160 Gen8 (G8) CTO (666281-B21)
- Standard Memory: 16GB or 32GB (Removable)
- Maximum Memory: 768GB LRDIMMs, 384GB ECC Registered 1.35V LV DIMMs , 384GB ECC Registered DIMMs, 128GB ECC Unbuffered DIMMs
- Memory Expansion: 24 Sockets using two processors, 12 Sockets (3 Banks of 4) per processor
- CPU: Intel Xeon
- Chipset: Intel C600 Series
- Bus Architecture: PCI Express; PCI-X; SSD SATA 2.5-inch 9.5mm; SSD SATA 3.5-inch
- Mfr System P/N: 666281-B21, 666282-B21
- Form Factor: 1U Rack Server
- Memory Comments: This system supports Registered ECC (RDIMM) or Unbuffered ECC (ECC UDIMM) or Load Reduced (LRDIMM) memory. Mixing RDIMM, ECC UDIMM and LRDIMM is not supported within this system. If only one processor is installed, only 12 DIMM slots are available. When populating with two processors 24 DIMM slots are available. No more than two ECC UDIMMs may be installed per channel. It is recommended to install UDIMMs in first and third banks, leaving second bank (sockets 2, 5, 8, and 11) open. Depending on the memory configuration and processor model, the memory speed may run at 1600MHz, 1333MHz or 1066MHz. See latest ProLiant QuickSpecs for processor models and supported memory speeds. 4GB DDR3-1333 Reg ECC modules come in two versions x4 and x8 DRAMs. The two parts may be installed in the same system but not within the same memory bank. Use like modules for dual and triple channel operation. Using LRDIMMs: any configuration up to 768GB can be reached using 32GB LRDIMMs. Using 1.35V LV RDIMMs: any configuration up to 512GB can be reached using 4GB, 8GB, 16GB and 32GB modules in groups of four using two processors. Maximum memory requires populating sixteen (16) 32GB LV RDIMMs in 2-DIMM-per-channel configuration. Using ECC Registered DIMMs: any configuration up to 384GB can be reached using 2GB, 4GB, 8GB, 16GB and 32GB modules in groups of four using two processors. Maximum memory requires populating twenty-four (24) 16GB RDIMMs. Using ECC Unbuffered DIMMs: any configuration up to 128GB can be reached using 2GB, 4GB and 8GB modules using two processors.
Memory Upgrade for HP ProLiant DL160 Gen8 (G8) CTO (666281-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
647903-B21 | HP | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $144.19 | Add to List |
|
672631-B21 | HP | PC-12800 1600Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $74.83 | Add to List |
|
647901-B21 | HP | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.35 | $62.24 | Add to List |
|
690802-B21 | HP | PC-12800 1600Mhz | 8 GB | Registered ECC Rank 2 | 1.5 | $54.23 | Add to List |
|
669324-B21 | HP | PC-12800 1600Mhz | 8 GB | ECC Rank 2 | 1.5 | $66.70 | Add to List |
Memory Upgrade for HP ProLiant DL160 Gen8 (G8) CTO (666281-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-14D377R2286-32G | 3D Memory | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $118.60 | Add to List |
|
3D-14D377R2284-32G | 3D Memory | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $149.25 | Add to List |
|
3D-14D335R6156-32G | 3D Memory | PC-8500 1066Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $288.85 | Add to List |
|
3D-14D309R8680-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $149.18 | Add to List |
|
3D-14D335R26191-16G | 3D Memory | PC-14900 1866Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $78.23 | Add to List |
Accessories Upgrade for HP ProLiant DL160 Gen8 (G8) CTO (666281-B21)
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|

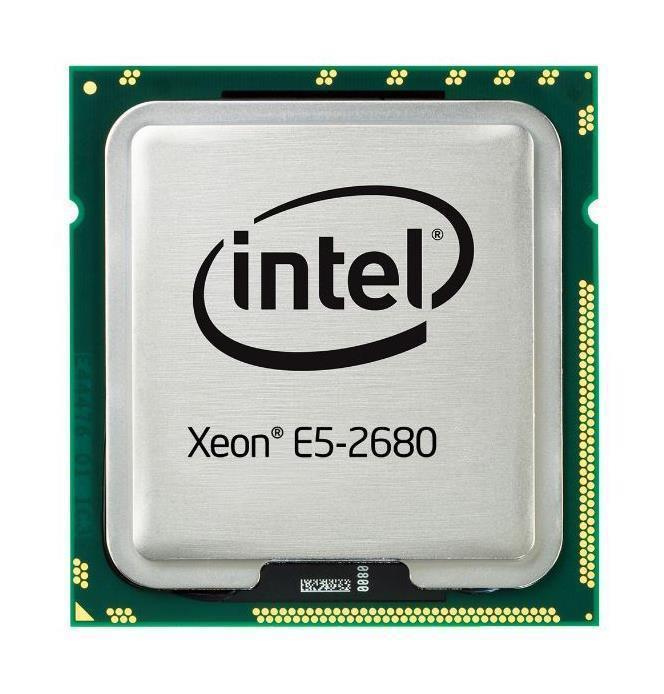

662933-B21 | LGA 2011 | E5-2680 | 8 | 2.70 GHz | $371.99 | Add to List | |
|
662932-B21 | LGA 2011 | E5-2670 | 8 | 2.60 GHz | $182.09 | Add to List | |
|

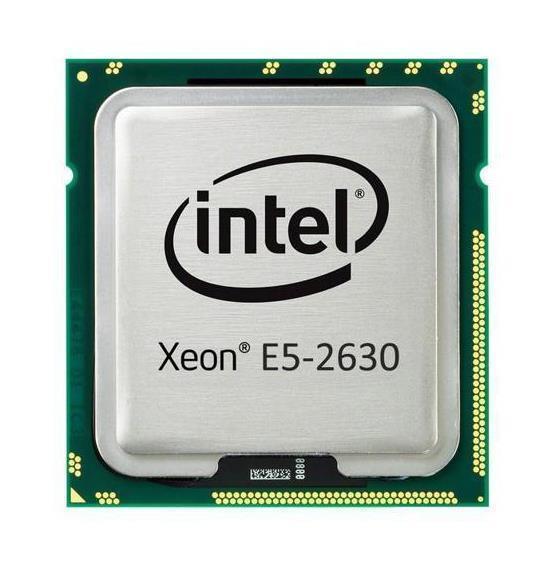

662929-B21 | LGA 2011 | E5-2630 | 6 | 2.30 GHz | $196.22 | Add to List | |
|

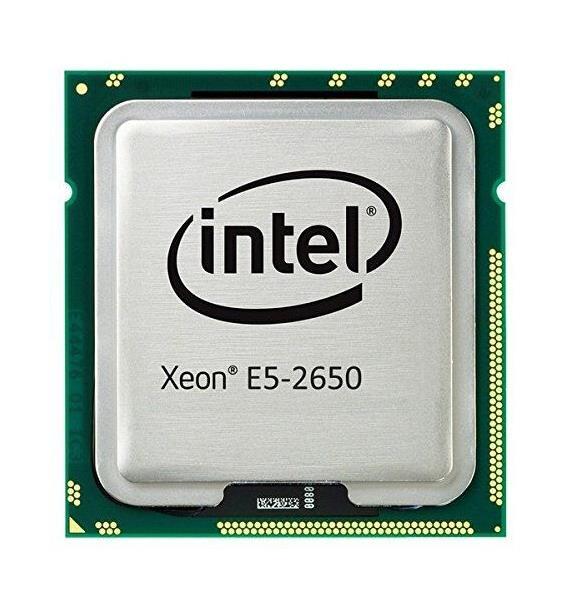

662931-B21 | LGA 2011 | E5-2650 | 8 | 2.00 GHz | $123.98 | Add to List | |
|

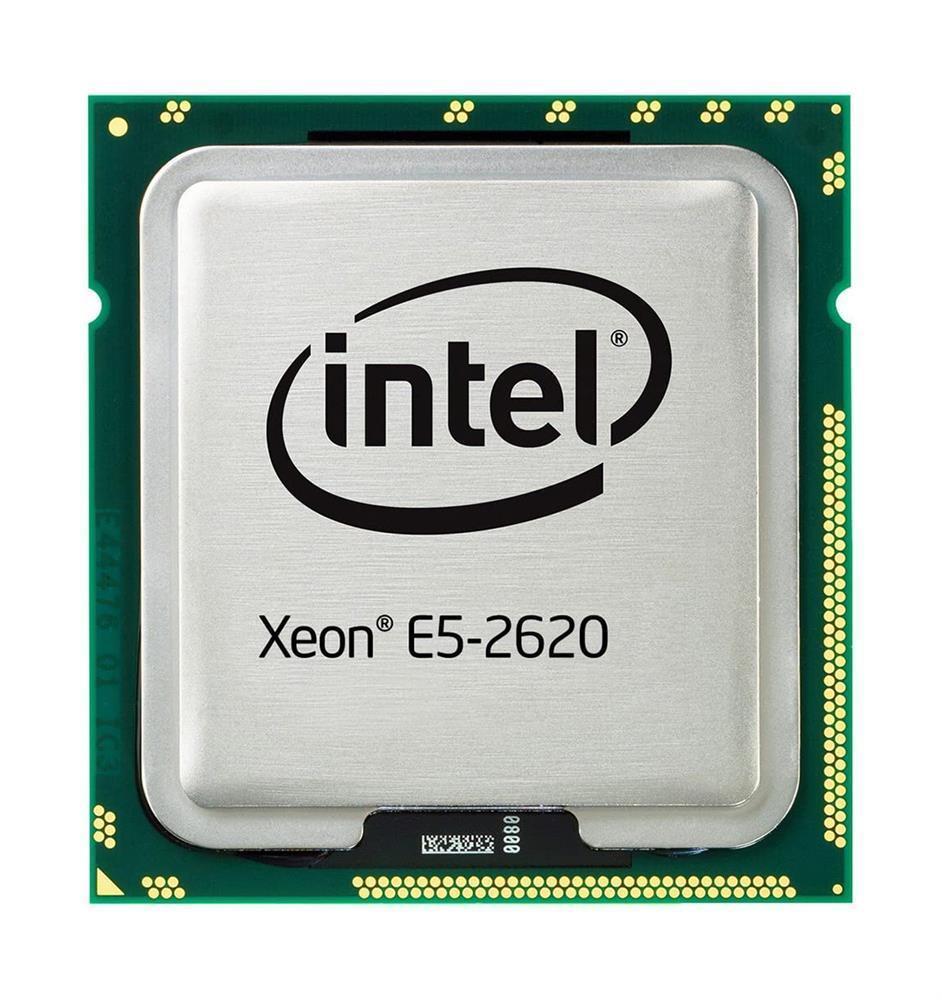

662928-B21 | LGA 2011 | E5-2620 | 6 | 2.00 GHz | $83.64 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
700759-B21 HP FlexFabric 533GLR-T Dual-Ports 10Gbps Ethernet PCI Express 2.0 x8 Network Adapter$42.58 -
Add to List
700751-B21 HP Flexfabric Dual-Ports SFP+ 10Gbps Gigabit Ethernet PCI Express 2.0 x8 Network Adapter$108.55 -
Add to List
716591-B21 HP 561T Dual-Ports RJ-45 10Gbps Gigabit Ethernet PCI Express 2.1 x8 Network Adapter$106.98 -
Add to List
700699-B21 HP Dual-Ports RJ-45 10Gbps Gigabit Ethernet PCI Express 2.1 x8 Network Adapter$45.96 -
Add to List
665243-B21 HP Dual-Ports SFP+ 10Gbps Gigabit Ethernet PCI Express 2.0 x8 Network Adapter$47.88
Power Supplies / Power Protection
Power Supplies
-
Add to List
656363-B21 HP 750-Watts Common Slot High Efficiency Platinum Plus Redundant Hot Swap Switching Power Supply for ProLiant DL380P DL385 Gen8 Servers$145.44 -
Add to List
656362-B21 HP 460-Watts Common Slot High Efficiency Platinum Plus Redundant Hot Swap Switching Power Supply for ProLiant DL380P DL385 Gen8 Servers$164.93
Servers
Server Accessories
-
Add to List

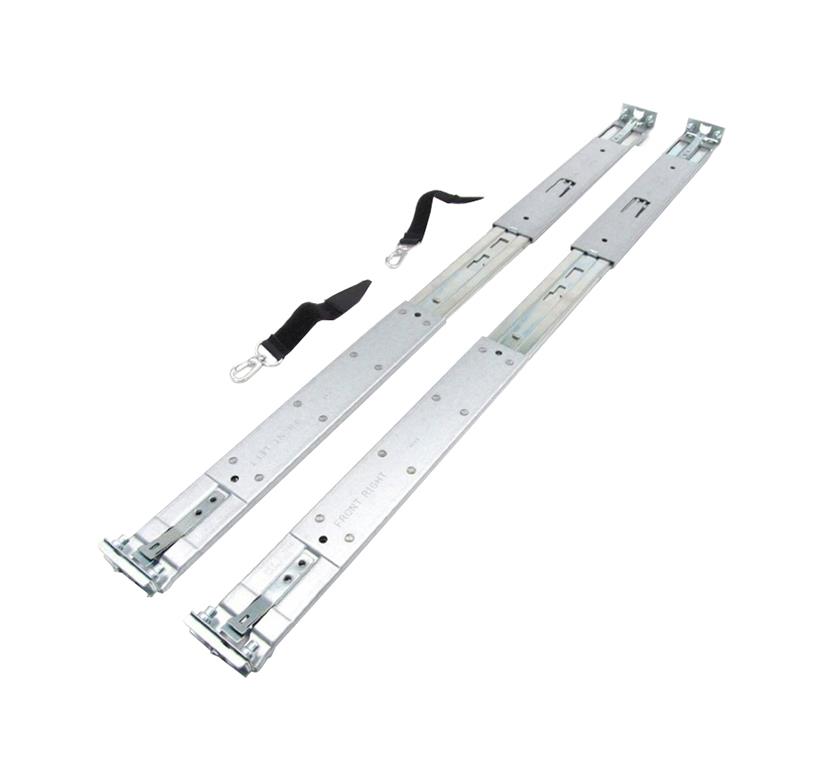

727604-B21 HP 1u Friction Rail Kit$153.52 -
Add to List

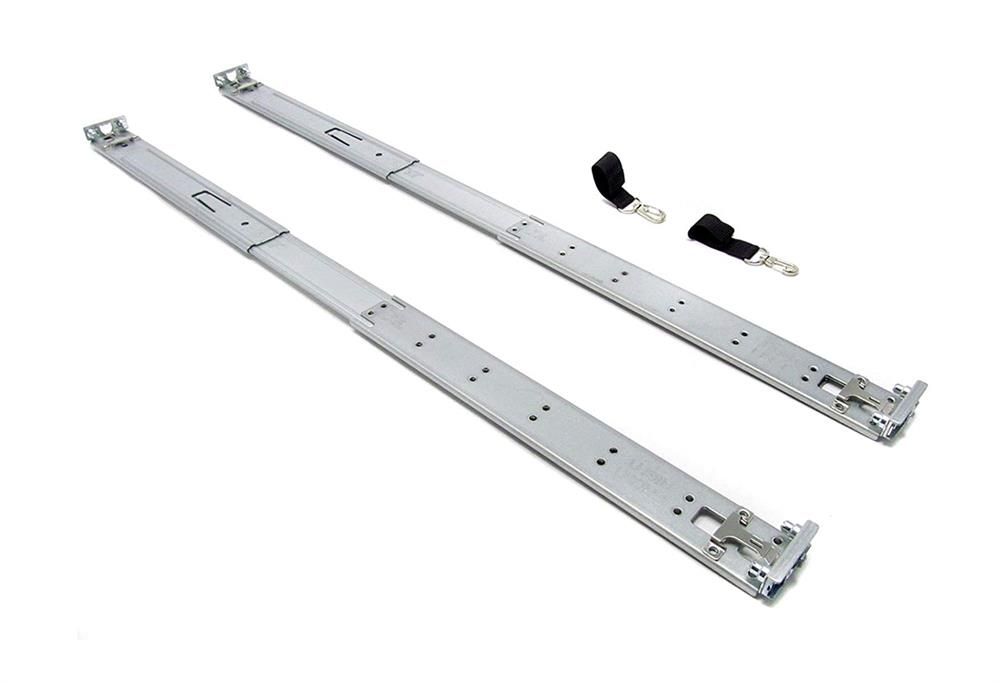

679367-002 HP Mounting Rail Kit for Server$147.62 -
Add to List

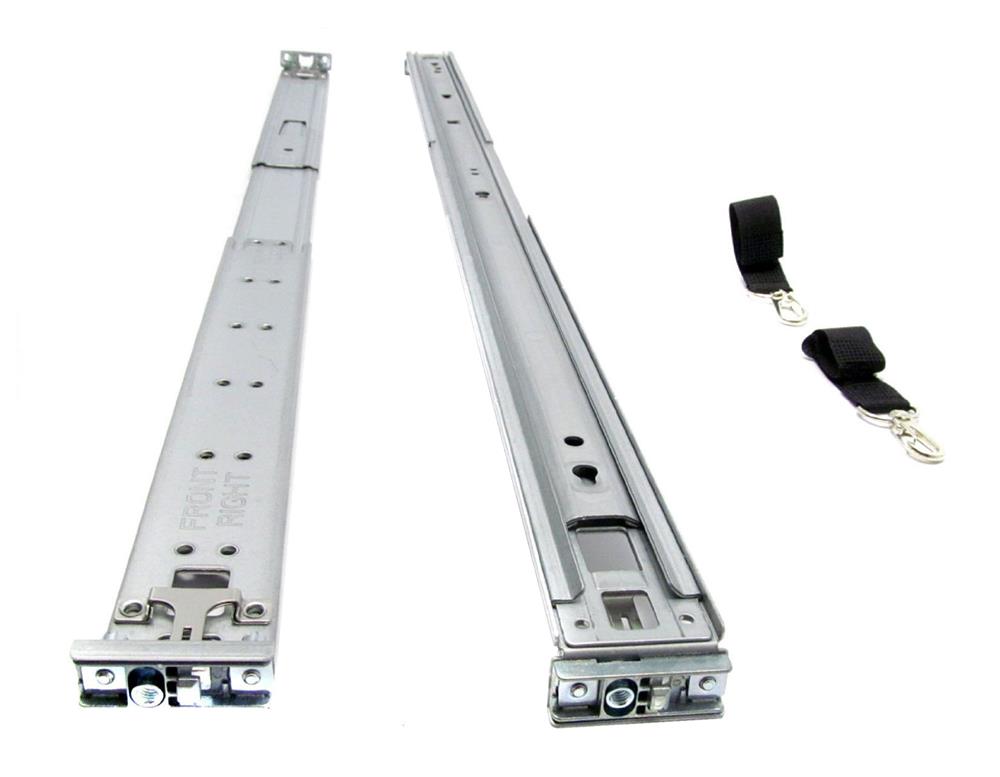

663200-B21 HP Rack Rail Kit 1U Integrated for ProLiant DL160 Gen8 DL160 Gen8 Base DL160 Gen8 Entry DL160 Gen8 Performance$131.74 -
Add to List
675040-001 HP Sps-rail Kit Friction$94.71
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
691860-B21 | HP | SATA 6.0 Gbps | 800 GB | 2.5-inch | $392.98 | Add to List | |
|
690829-B21 | HP | SAS 6.0 Gbps | 800 GB | 2.5-inch | $219.12 | Add to List | |
|
691868-B21 | HP | SATA 6.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $392.98 | Add to List |
|
691856-B21 | HP | SATA 6.0 Gbps | 400 GB | 3.5-inch | Multi-level Cell (MLC) | $177.77 | Add to List |
|
690827-B21 | HP | SAS 6.0 Gbps | 400 GB | 2.5-inch | $138.79 | Add to List |
Storage
Controllers
-
Add to List
729552-B21 HP H221 8-Channels 6Gbps SAS PCI Express 3.0 x8 Controller Host Bus Network Adapter$324.97 -
Add to List
650933-B21 HP H220 8-Channel 6Gbps SAS/SATA PCI Express 3.0 x8 Controller Host Bus Network Adapter$70.23 -
Add to List
650926-B21 HP H222 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 3.0 x8 HBA Controller Card$176.68 -
Add to List
615418-B21 HP Smart Array P822 2GB SAS 6Gbps / SATA 6Gbps PCI Express 3.0 x8 0/1/5/6/50/60 RAID Controller Card$85.22 -
Add to List
650931-B21 HP H221 Dual Port SAS 6 Gbps / SATA 6Gbps PCI Express 2.0 x8 HBA Controller Card$152.04
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
761497-001 | HP | SAS 6.0 Gbps | 6 TB | 3.5-inch | 7200 RPM | $195.16 | Add to List | |
|
695842-001 | HP | SAS 6.0 Gbps | 4 TB | 3.5-inch | 7200 RPM | $398.08 | Add to List | |
|
693720-001 | HP | SATA 6.0 Gbps | 4 TB | 3.5-inch | 7200 RPM | $208.55 | Add to List | |
|
653959-001 | HP | SAS 6.0 Gbps | 3 TB | 3.5-inch | 7200 RPM | $126.91 | Add to List | |
|
628182-001 | HP | SATA 6.0 Gbps | 3 TB | 3.5-inch | 7200 RPM | $189.00 | Add to List |
