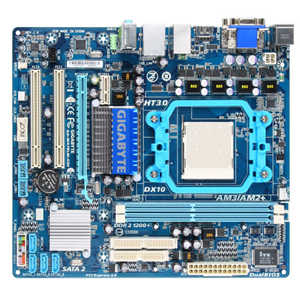

GA-MA78LM-S2H Gigabyte Desktop Motherboard AMD 760G Chipset Socket AM3 PGA-941 Micro ATX 1 x Processor Support 8GB DDR2 SDRAM Maximum RAM Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7) RAID Supported Controller Onboard (Refurbished)
Mfg Part No:
GA-MA78LM-S2H
Looking for a large quantity of GA-MA78LM-S2H? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for GA-MA78LM-S2H
| General Information | |
| Manufacturer Part Number | GA-MA78LM-S2H |
| Brand Name | Gigabyte |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM3 PGA-941 |
| Processor Supported |
Phenom II X4 Phenom II X3 Phenom II X2 Phenom X4 Phenom X3 Athlon II X2 Athlon 64 FX Athlon 64 X2 Athlon 64 Athlon X2 Athlon II X3 Athlon II X4 Sempron Opteron |
| Memory | |
| Number of Memory Slots | 2 |
| Maximum Memory | 8 GB |
| Memory Speed Supported |
1.07 GHz 800 MHz |
| Memory Technology | DDR2 SDRAM |
| I/O Controller | |
| Controller Type |
Floppy Controller Serial ATA/300 Ultra ATA/133 (ATA-7) |
| RAID Supported | Yes |
| RAID Levels |
0 1 1+0 JBOD |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ATI |
| Graphics Controller Model | Radeon HD 3000 |
| Audio | |
| Audio Channels | 5.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| VGA | Yes |
| HDMI | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 8.7" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
RoHS WEEE |
