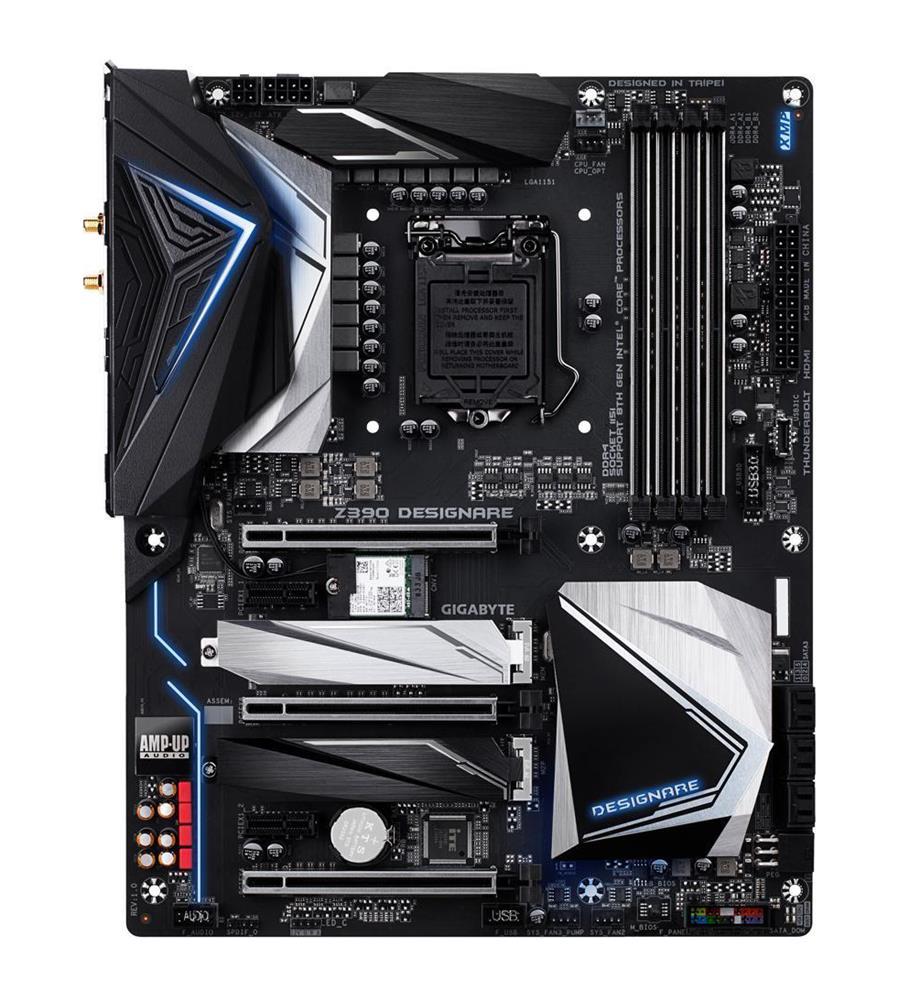

Z390 DESIGNARE Gigabyte Socket LGA 1151 Intel Z390 Express Chipset Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
Z390 DESIGNARE Gigabyte Socket LGA 1151 Intel Z390 Express Chipset Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Z390 DESIGNARE Gigabyte Socket LGA 1151 Intel Z390 Express Chipset Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

Z390 DESIGNARE

Icon Global Part Number (GPN):

1492449527

$494.31 $1,098.48 You Save: $604.17 (55% Father's Day Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of Z390 DESIGNARE? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for Z390 DESIGNARE

Model
Manufacturer Gigabyte Tech
Manufacturer Part # Z390 DESIGNARE
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Chipset Intel Z370
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Maximum Installed Memory 128 GB
Expansion Slots PCI-E x16
 PCI-E x8
Storage Controller SATA 6.0 Gbps
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Chassis Fan Connector
 CPU Fan Connector
 HDMI
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 1.1
 USB 2.0
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x PEG power connector
  • 2 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 2 x system fan headers
  • 1 x system fan/water cooling pump header
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  • 1 x USB 3.1 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x S/PDIF Out header
  • 1 x Clear CMOS jumper

    • Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x DisplayPort In port
  • 1 x HDMI port
  • 2 x SMA antenna connectors (2T2R)
  • 2 x USB 3.1 Gen 2 Type-A ports (red)
  • 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support)
  • 4 x USB 3.1 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
    		•
    Request for Quote:  Z390 DESIGNARE

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z390 DESIGNARE. Or Request a Quote below:



    General Information

  • Z390 DESIGNARE Gigabyte Socket LGA 1151 Intel Z390 Express Chipset Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
