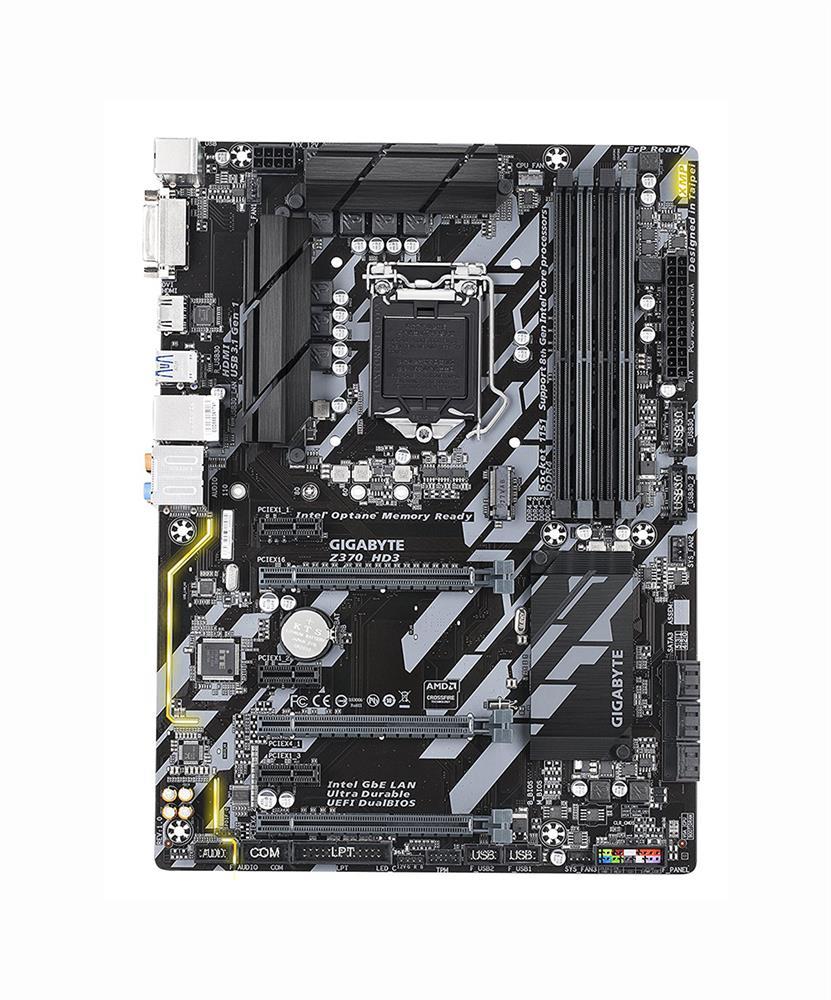

Z370 HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z370 Express Chipset 8th Generation Core i7 / i5 / i3 Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
Z370 HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z370 Express Chipset 8th Generation Core i7 / i5 / i3 Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Z370 HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z370 Express Chipset 8th Generation Core i7 / i5 / i3 Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

Z370 HD3 (rev. 1.0)

Icon Global Part Number (GPN):

1490331206

$482.26 $1,071.69 You Save: $589.43 (55% Special Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of Z370 HD3 (rev. 1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for Z370 HD3 (rev. 1.0)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # Z370 HD3 (rev. 1.0)
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
Chipset Intel Z370
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-25600 (DDR4-3200)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E x1
 PCI-E x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Audio-In
 Audio-Out
 CPU Fan Connector
 Parallel
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 Serial
 USB 1.1
 USB 2.0
 USB 3.1
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x RGB LED strip header
  • 6 x SATA 6Gb/s connectors
  • 1 x M.2 Socket 3 connector
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 2 x USB 3.1 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x parallel port header
  • 1 x serial port header
  • 1 x Clear CMOS jumper

    • Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.1 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    		•
    Request for Quote:  Z370 HD3 (rev. 1.0)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z370 HD3 (rev. 1.0). Or Request a Quote below:



    General Information

  • Z370 HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z370 Express Chipset 8th Generation Core i7 / i5 / i3 Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
