Looking for a large quantity of H310M S2V (rev. 1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Model | |
Manufacturer | Gigabyte Tech |

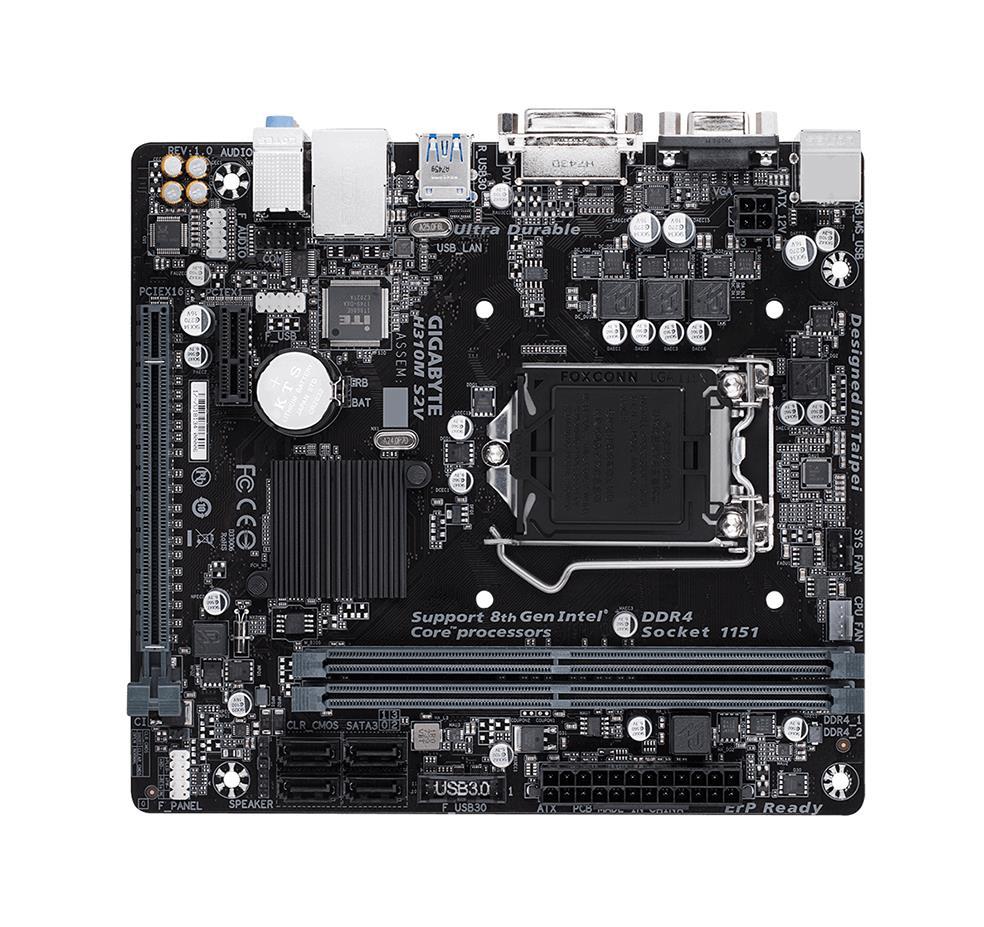

Manufacturer Part # | H310M S2V (rev. 1.0) |
Performance | |
Product Type | System Board |
Form Factor | Micro ATX |
CPU Socket Type | LGA 1151 |
Supported CPU(s) |
Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor |
Number of Memory Slot(s) | 2 |
Number of Memory Channel(s) | 2 |
Supported Memory Standard(s) |
PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400) PC4-21333 (DDR4-2666) |
Maximum Installed Memory | 32 GB |
Expansion Slots |
PCI-E x1 PCI-E x16 |
Storage Controller | SATA 6.0 Gbps |
Audio Controller | Realtek ALC887 |
Network | Gigabit Ethernet |
Connectors/Ports |
24-pin ATX Power Connector Chassis Fan Connector CPU Fan Connector DVI-D PS/2 Keyboard PS/2 Mouse RJ-45 USB 1.1 USB 2.0 |
Connectors/Ports Details | Internal I/O Connectors
Back Panel Connectors |
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no H310M S2V (rev. 1.0). Or Request a Quote below:
