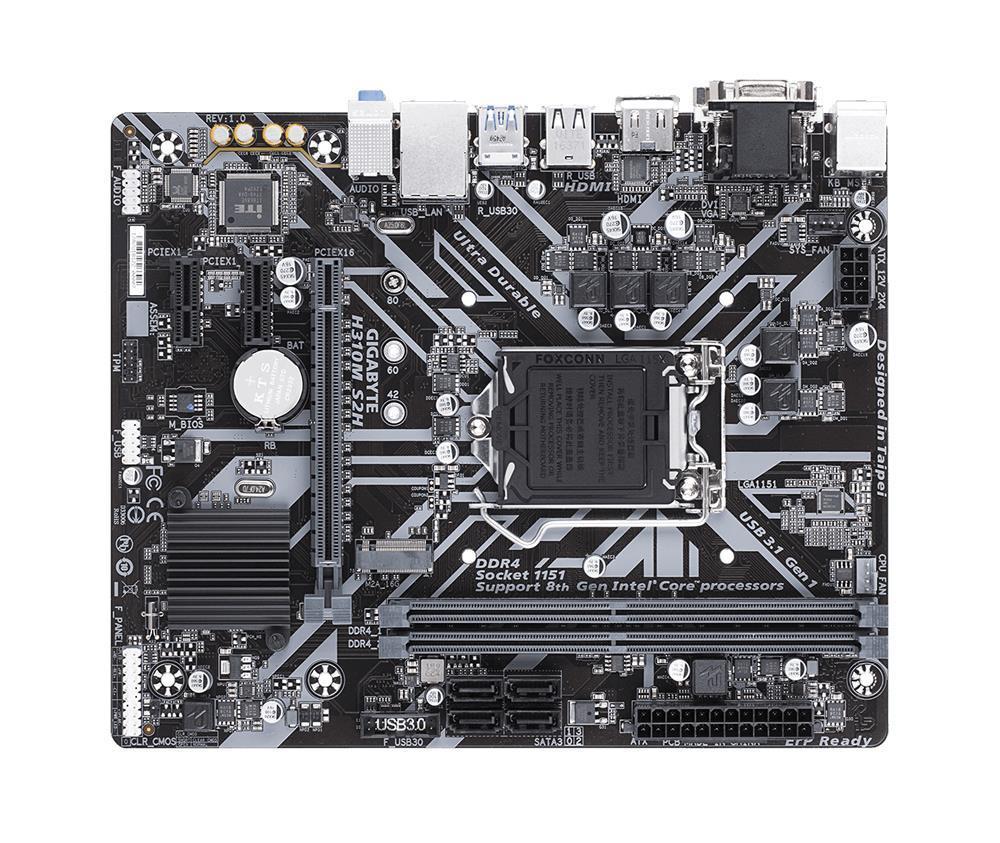

H310MS2H(rev.1.1) Gigabyte Socket LGA 1151 H310 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
H310MS2H(rev.1.1) Gigabyte Socket LGA 1151 H310 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

H310MS2H(rev.1.1) Gigabyte Socket LGA 1151 H310 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

H310MS2H(rev.1.1)

$572.51 $817.87 You Save: $245.36 (30% Special Discount)
Availability:Available for Order

Looking for a large quantity of H310MS2H(rev.1.1)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for H310MS2H(rev.1.1)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # H310MS2H(rev.1.1)
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Chipset Intel H310
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-21333 (DDR4-2666)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E x1
 PCI-E x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Audio-In
 Audio-Out
 CPU Fan Connector
 D-Sub
 DVI-D
 HDMI
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 1.1
 USB 2.0
 USB 3.1
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.1 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x speaker header
  • 1 x Clear CMOS jumper

    • Back Paenl Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 2 x USB 3.1 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
    		•
    Request for Quote:  H310MS2H(rev.1.1)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no H310MS2H(rev.1.1). Or Request a Quote below:



    General Information

  • H310MS2H(rev.1.1) Gigabyte Socket LGA 1151 H310 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
