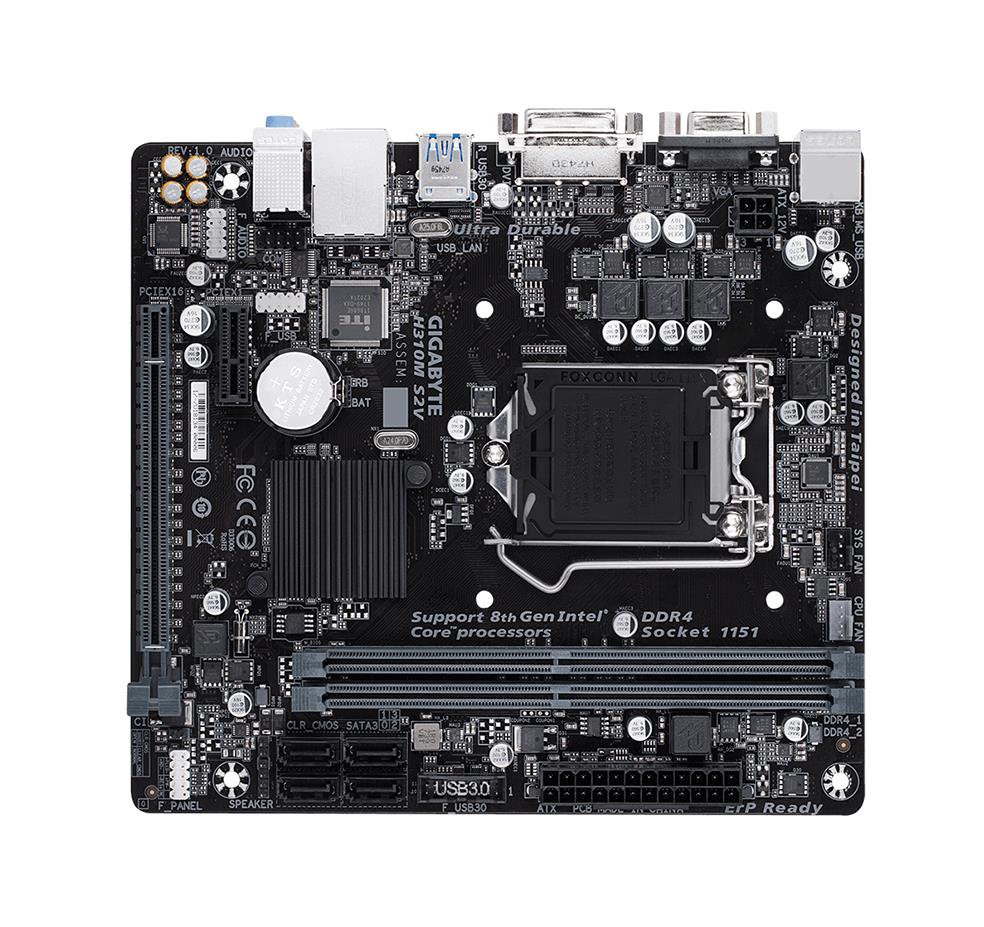

H310M S2V Gigabyte Socket LGA 1151 Intel H310 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

H310M S2V

$195.35 $279.07 You Save: $83.72 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of H310M S2V? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for H310M S2V

Model
Manufacturer	Gigabyte Tech
Manufacturer Part #	H310M S2V
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Number of Memory Slot(s)	2
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400) PC4-21333 (DDR4-2666)
Maximum Installed Memory	32 GB
Expansion Slots	PCI-E x1 PCI-E x16
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector Chassis Fan Connector CPU Fan Connector DVI-D PS/2 Keyboard PS/2 Mouse RJ-45 USB 1.1 USB 2.0
Connectors/Ports Details	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Request for Quote: H310M S2V

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no H310M S2V. Or Request a Quote below:

Quantity

How soon you need it?

General Information

H310M S2V Gigabyte Socket LGA 1151 Intel H310 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
