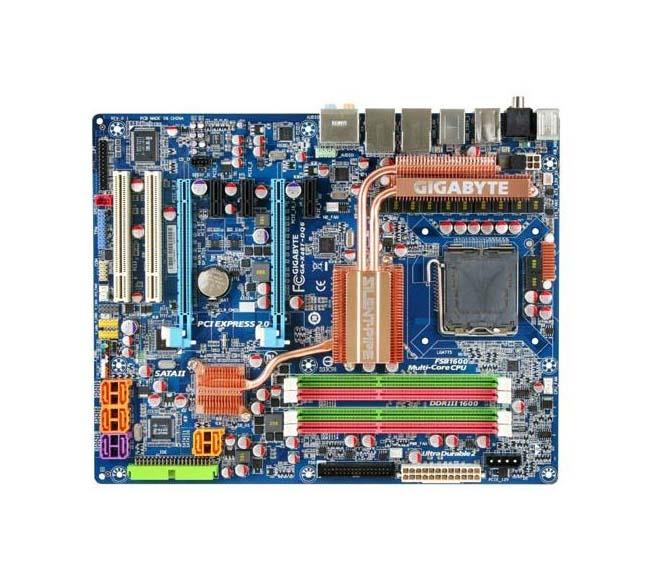

GAX48TDQ6 Gigabyte Socket LGA 775 Intel X48/ ICH9R Chipset Intel Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Intel Pentium D/ Intel Pentium Processor Extreme Edition/ Intel Celeron Processors Support DDR3 4x DIMM 6x SATA 3.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

GAX48TDQ6

$271.13 $387.32 You Save: $116.19 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of GAX48TDQ6? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GAX48TDQ6

Model
Manufacturer	Gigabyte Tech
Manufacturer Part #	GAX48TDQ6
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 775
Supported CPU(s)	Intel Celeron Processor Intel Core2 Extreme Processor Intel Core2 Quad Processor Intel Pentium 4 Processor Intel Pentium 4 Processor Extreme Edition Intel Pentium D Processor
Chipset	Intel X48 Express
South Bridge Chipset	Intel ICH9R
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-16000 (DDR3-2000) PC3-6400 (DDR3-800) PC3-8500 (DDR3-1066)
Maximum Installed Memory	8GB
Expansion Slots	PCI-E 2.0 x16 PCI-E x1
Expansion Slots Details	2 x PCI Express 2.0 x16 slots (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x16.) 3 x PCI Express x1 slots (share with the PCIE_16_2 slot) 2 x PCI slots
Storage Controller	SATA 3.0 Gbps
Storage Controller Details	South Bridge 6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 GIGABYTE SATA2 chip 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices 2 x SATA 3Gb/s connectors (GSATAIIA, GSATAIIB) supporting up to 2 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, and JBOD iTE IT8718 chip 1 x floppy disk drive connector supporting up to 1 floppy disk drive
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector HDMI Microphone PS/2 PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 1.1 USB 2.0
Connectors/Ports Details	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin PCIe 12V power connector 1 x floppy disk drive connector 1 x IDE connector 6 x SATA 3Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x power fan header 1 x North Bridge fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x IEEE 1394a header 1 x parallel port header 1 x serial port header 1 x power LED header 1 x chassis intrusion header Back Panel Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin PCIe 12V power connector 1 x floppy disk drive connector 1 x IDE connector 6 x SATA 3Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x power fan header 1 x North Bridge fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x IEEE 1394a header 1 x parallel port header 1 x serial port header 1 x power LED header 1 x chassis intrusion header

Request for Quote: GAX48TDQ6

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GAX48TDQ6. Or Request a Quote below:

Quantity

How soon you need it?

General Information

GAX48TDQ6 Gigabyte Socket LGA 775 Intel X48/ ICH9R Chipset Intel Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Intel Pentium D/ Intel Pentium Processor Extreme Edition/ Intel Celeron Processors Support DDR3 4x DIMM 6x SATA 3.0Gb/s ATX Motherboard (Refurbished)
