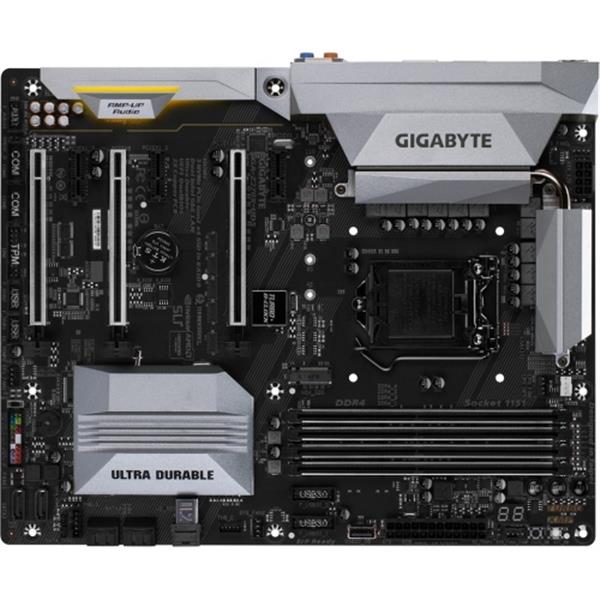

GA-Z270X-UD5 Gigabyte Ultra Durable Desktop Motherboard Intel Z270 Chipset Socket H4 LGA-1151 (Refurbished)
Mfg Part No:
GA-Z270X-UD5
Looking for a large quantity of GA-Z270X-UD5? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for GA-Z270X-UD5
| General Information | |
| Manufacturer Part Number | GA-Z270X-UD5 |
| Brand Name | Gigabyte |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported |
Core i7 Core i5 Core i3 Pentium Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor |
DIMM UDIMM |
| Maximum Memory | 64 GB |
| Memory Speed Supported |
3 GHz (O.C.) 2.80 GHz (O.C.) 3.60 GHz (O.C.) 3.80 GHz (O.C.) 3.87 GHz (O.C.) 3.73 GHz (O.C.) 2.40 GHz (O.C.) 3.20 GHz (O.C.) 3.33 GHz (O.C.) 3.30 GHz (O.C.) 3.40 GHz (O.C.) 3.47 GHz (O.C.) 2.67 GHz (O.C.) 2.13 GHz 3.67 GHz (O.C.) 4 GHz (O.C.) |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
10 5 1 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.1 Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Thunderbolt | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 3.1 Ports | 4 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
