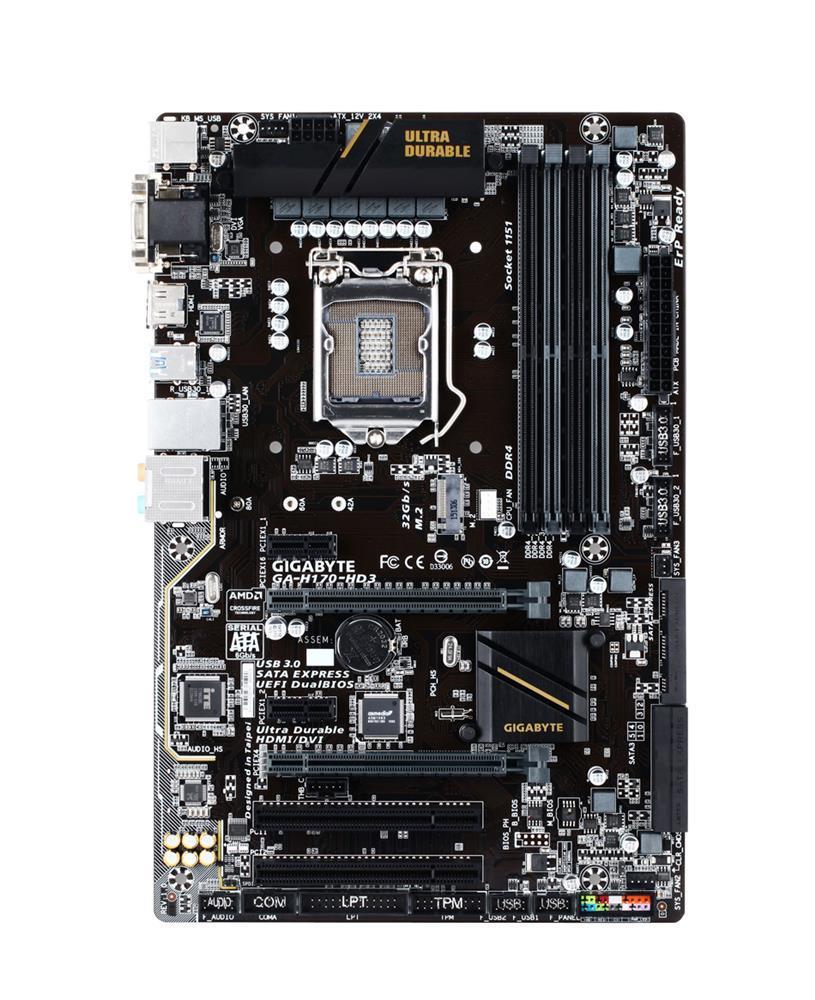

GA-H170-HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z270 Express Chipset Core 7th/6th Generation i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
GA-H170-HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z270 Express Chipset Core 7th/6th Generation i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

GA-H170-HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z270 Express Chipset Core 7th/6th Generation i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

GA-H170-HD3 (rev. 1.0)

Icon Global Part Number (GPN):

1490863955

$482.26 $1,071.69 You Save: $589.43 (55% Father's Day Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of GA-H170-HD3 (rev. 1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-H170-HD3 (rev. 1.0)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-H170-HD3 (rev. 1.0)
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Chipset Intel H170
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E x1
 PCI-E x16
 PCI-E x4
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Parallel
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 Serial
 USB 1.1
 USB 2.0
 USB 3.0
 USB 3.1
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x M.2 Socket 3 connector
  • 2 x SATA Express connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 2 x USB 3.0/2.0 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header
  • 1 x Thunderbolt™ add-in card connector
  • 1 x serial port header
  • 1 x parallel port header
  • 1 x Clear CMOS jumper

    • Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.0/2.0 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    		•
    Request for Quote:  GA-H170-HD3 (rev. 1.0)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-H170-HD3 (rev. 1.0). Or Request a Quote below:



    General Information

  • GA-H170-HD3 (rev. 1.0) Gigabyte Socket LGA 1151 Intel Z270 Express Chipset Core 7th/6th Generation i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
