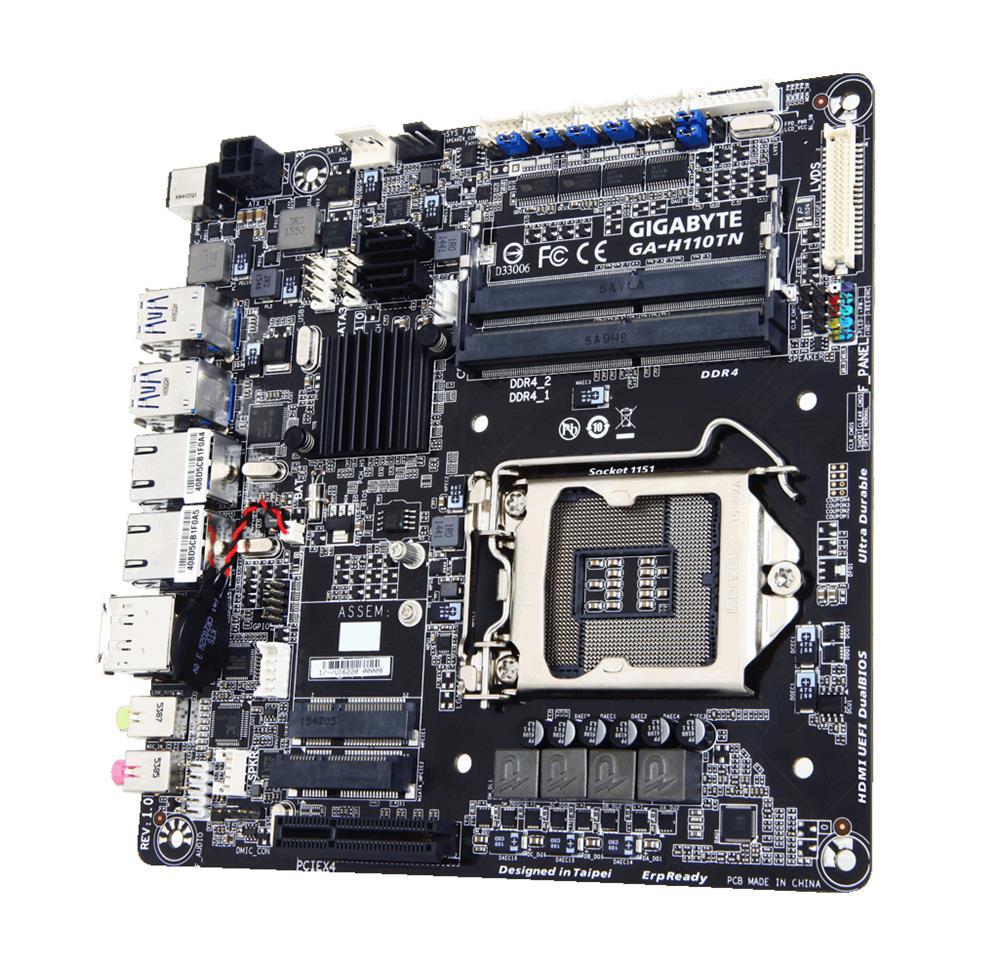

GA-H110TN-GSM PLUS Gigabyte Socket LGA 1151 Intel H110 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 2x SATA 6.0Gb/s Thin Mini-ITX Motherboard (Refurbished)
Mfg Part No:
GA-H110TN-GSM PLUS
Looking for a large quantity of GA-H110TN-GSM PLUS? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for GA-H110TN-GSM PLUS
| General Information | |
| Manufacturer Part Number | GA-H110TN-GSM PLUS |
| Brand Name | Gigabyte |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported |
Core i7 Core i3 Core i5 Pentium Celeron |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Maximum Memory | 32 GB |
| Memory Speed Supported | 2.13 GHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 3 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of mSATA Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
WEEE China RoHS ErP Ready |
| Country of Origin | China |
