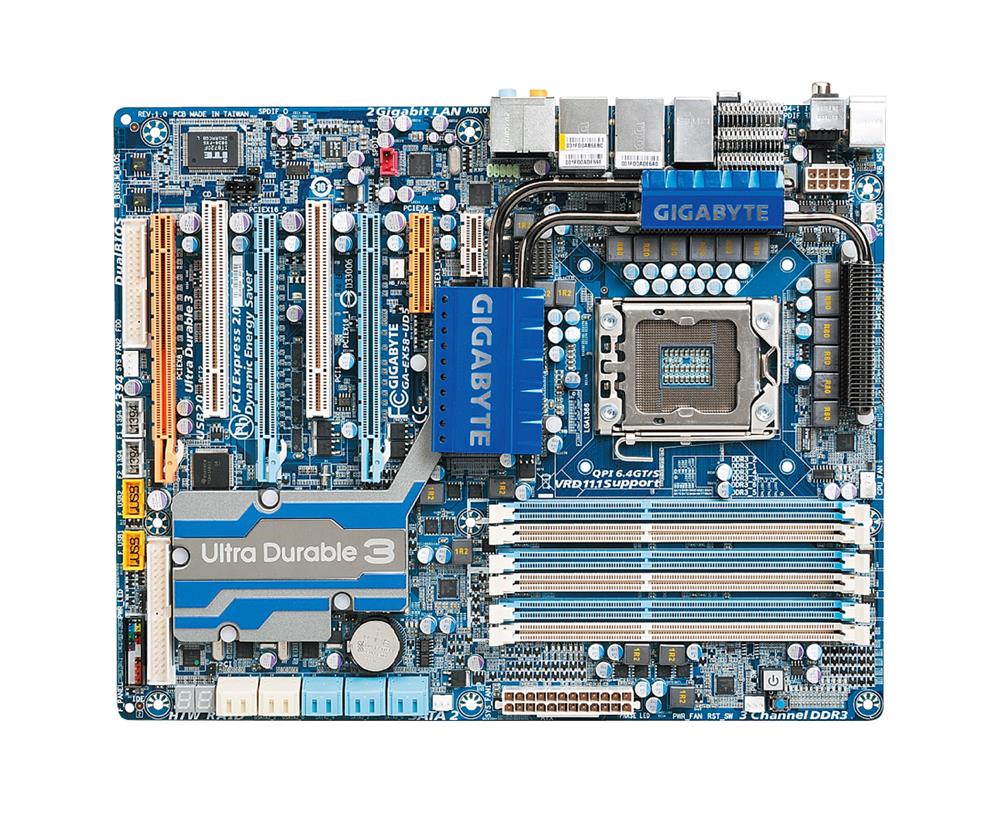

GA-EX58-UD5 GIGABYTE Intel X58 Chipset Socket LGA1366 Intel Core i7 Processors Support ATX Motherboard (Refurbished)
Mfg Part No:
GA-EX58-UD5
Looking for a large quantity of GA-EX58-UD5? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for GA-EX58-UD5
| General Information | |
| Manufacturer Part Number | GA-EX58-UD5 |
| Brand Name | Gigabyte |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported |
Core i7 Xeon Quad-core |
| Memory | |
| Number of Memory Slots | 6 |
| Maximum Memory | 24 GB |
| Memory Speed Supported |
1.33 GHz 1.07 GHz 800 MHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Floppy Controller Serial ATA/300 Ultra ATA/133 (ATA-7) |
| RAID Supported | Yes |
| RAID Levels |
0 1 1+0 5 JBOD |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 7 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| S/PDIF | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
RoHS WEEE |
Request for Quote: GA-EX58-UD5
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-EX58-UD5. Or Request a Quote below:
