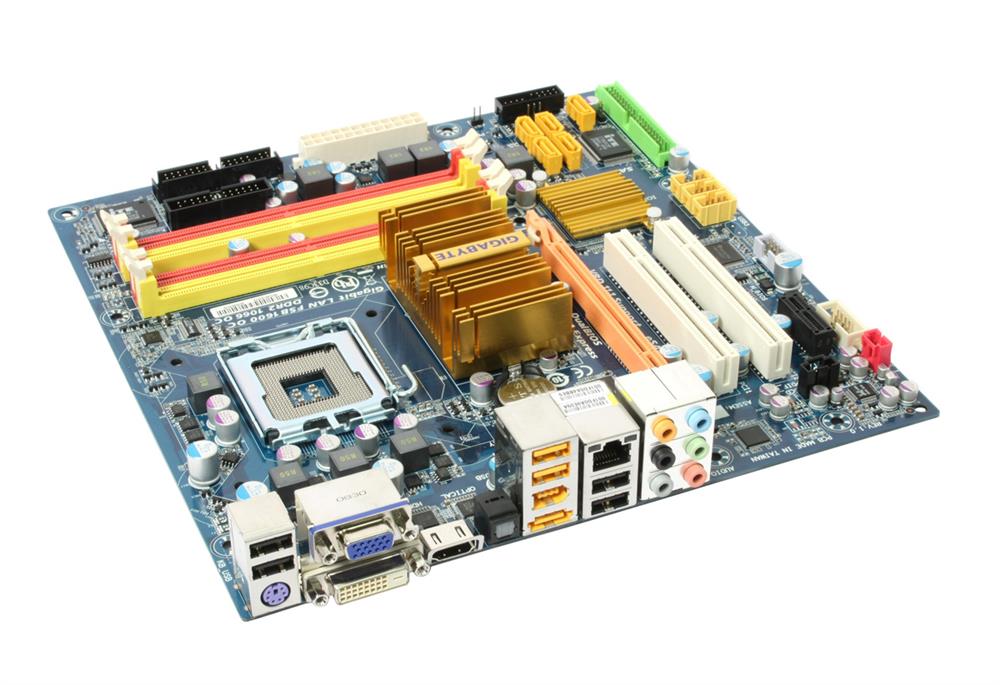

GA-EG45M-DS2H Gigabyte Intel G45 Ich10 FSB 1333/1066/800MHz Motherboard (Refurbished)
Mfg Part No:
GA-EG45M-DS2H
Looking for a large quantity of GA-EG45M-DS2H? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for GA-EG45M-DS2H
| General Information | |
| Manufacturer Part Number | GA-EG45M-DS2H |
| Brand Name | Gigabyte |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket T LGA-775 |
| Processor Supported |
Core 2 Extreme Quad-Core Core 2 Extreme Core 2 Duo Pentium Dual-core Celeron Dual-Core Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Maximum Memory | 16 GB |
| Memory Speed Supported |
800 MHz 667 MHz |
| Memory Technology | DDR2 SDRAM |
| I/O Controller | |
| Controller Type |
Floppy Controller Serial ATA/300 Ultra ATA/133 (ATA-7) |
| RAID Supported | Yes |
| RAID Levels |
0 5 1 1+0 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | GMA X4500HD |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 3 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
RoHS WEEE |
