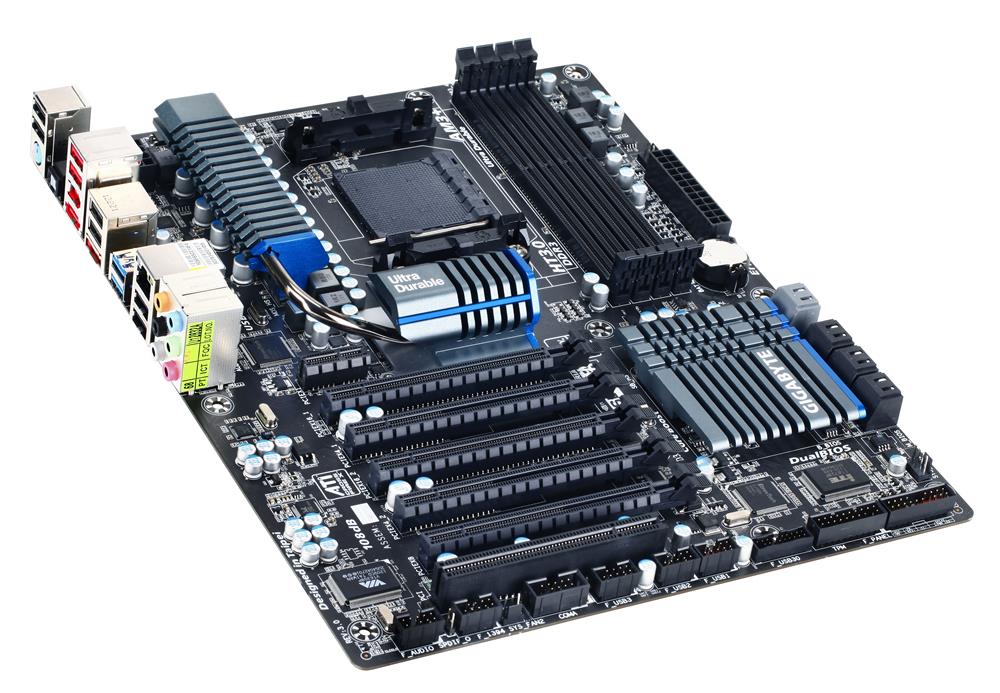

GA-990FXA-UD5 (rev. 3.1) Gigabyte Socket AM3+ AMD 990X/ SB950 Chipset AMD AM3+ FX/ AM3 Phenom II/ Athlon II Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

GA-990FXA-UD5 (rev. 3.1)

Global Part Number (GPN):

1489242737

$482.26 $1,071.69 You Save: $589.43 (55% Special Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of GA-990FXA-UD5 (rev. 3.1)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-990FXA-UD5 (rev. 3.1)

Model
Manufacturer	Gigabyte Tech
Manufacturer Part #	GA-990FXA-UD5 (rev. 3.1)
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket AM3+
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor
Chipset	AMD 990FX
South Bridge Chipset	AMD SB950
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-16000 (DDR3-2000)
Maximum Installed Memory	32 GB
Expansion Slots	PCI PCI-E x16 PCI-E x8
Expansion Slots Details	2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 3) 1 x PCI Express x16 slot, running at x8 (PCIEX8) (Note4) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) 1 x PCI Express x1 slot (All PCI Express slots conform to the PCI Express 2.0 standard.) 1 x PCI slot
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC889
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 USB 1.1 USB 2.0
Connectors/Ports Details	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 8 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 3 x USB 2.0/1.1 headers 1 x USB 3.0/2.0 header 1 x IEEE 1394a header 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x optical S/PDIF Out connector 1 x IEEE 1394a port 2 x eSATA 6Gb/s connectors 8 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Mic In)

Request for Quote: GA-990FXA-UD5 (rev. 3.1)

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-990FXA-UD5 (rev. 3.1). Or Request a Quote below:

Quantity

How soon you need it?

General Information

GA-990FXA-UD5 (rev. 3.1) Gigabyte Socket AM3+ AMD 990X/ SB950 Chipset AMD AM3+ FX/ AM3 Phenom II/ Athlon II Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
